Fisher 667 - Page 23

Type 667 Size 30-76 & 87
23

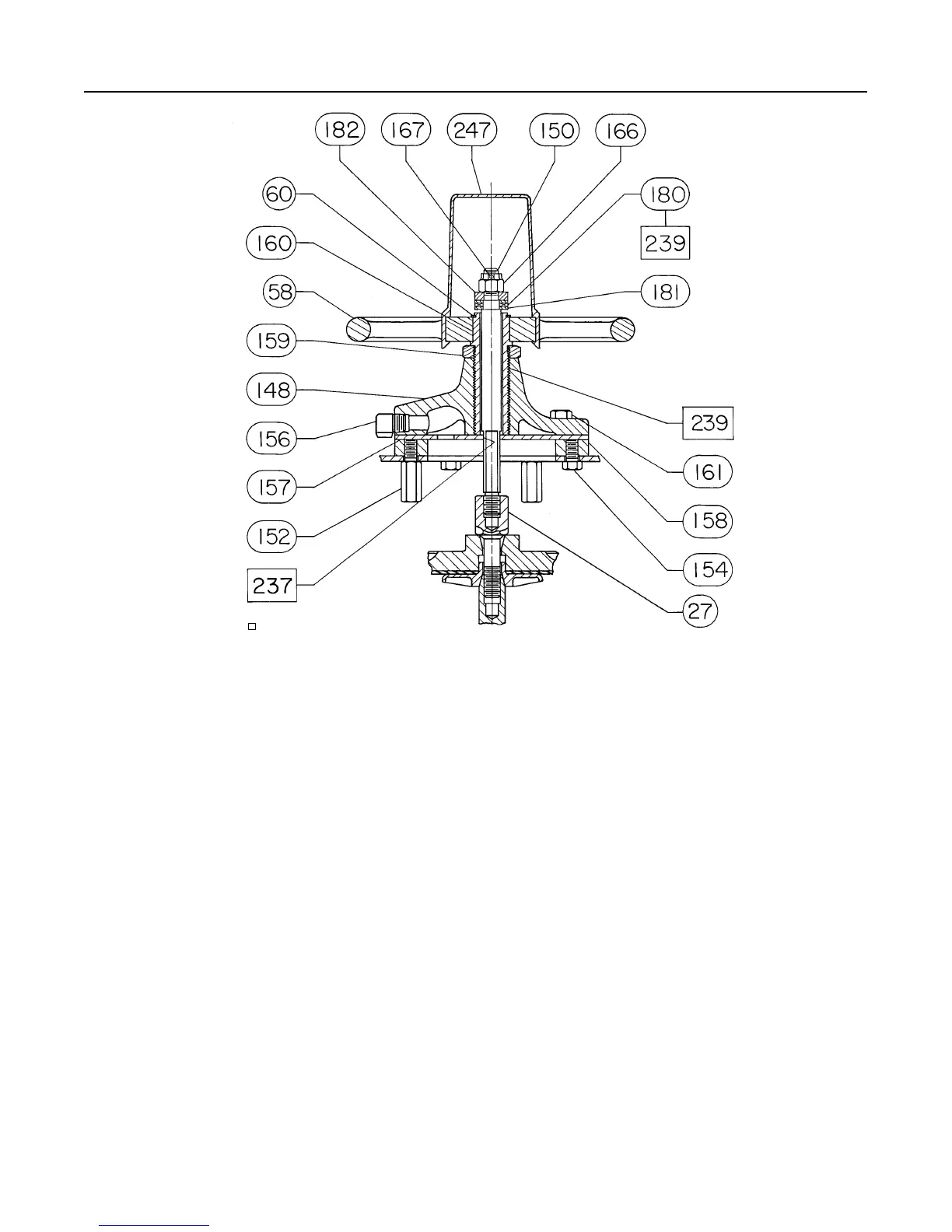

Figure 9. Top-Mounted Handwheel Assembly for Size 30 through 40 Actuators
APPLY LUBRICANT
NOTE:
THE TOP MOUNTED HANDWHEEL IS NOT DESIGNED FOR USE UNDER
HEAVY LOAD OR FREQUENT USE.
30B3940-C / IL
Key Description Part Number Qty
75 Nut, Hex (steel, zn pl)
Standard
Size 30 & 34 1P1312X0072 2
Size 40 & 46 1A4132X0032 1
Size 50 through 76 1A3754X0072 1
76 Nut, Speed, Twin
Stainless Steel
Standard
Sizes 30 & 34 1E793938992 1
Sizes 40 through 46 1E808438992 1
Sizes 50 through 87 1E833538992 1
77 Stop, Travel (steel, zn pl)
(Use for Push-Down-To-Open)
Sizes 30 through 40 1H493524092 2
Sizes 45 through 60 1H494324092 2
78 Bushing, Pipe, Hex (steel, plated)
Sizes 70 & 87 1C379026232 1
79 Screw, Mach, Flat Hd (steel plated)
Size 87 1H736528982 2
Key Description Part Number Qty
81 Screw, Mach, Rd Hd (carbon steel, plated)
w/Side-Mounted Handwheel
Size 45 & 46 1A331928982 2
82 Indicator, Travel, Adaptor (brass)
w/Side-Mounted Handwheel
Sizes 45 & 46 1F548214012 2
83 Washer, Plain
Carbon Steel-Plated
Sizes 70, 76 & 87 w/Handwheel 1E873028992 2
Brass
Size 70, 76 & 87 w/Handwheel 1F565618992 2
89 Spring Case Adaptor (Cast Iron)
Standard
Size 70 & 87 Type 667-4 2N889419042 1
w/Handwheel
Size 70 & 87 Type 667-4 3R675819042 1
90 Screw, Cap (steel, zn pl)
Size 70 & 87 Type 667-4 1A771132982 12
102 Plug, Pipe, Hex Hd (steel)
w/ 1/2 NPT Connection
Size 30 through 60 1A767524662 1
