Fisher 667 - Page 24

Type 667 Size 30-76 & 87
24

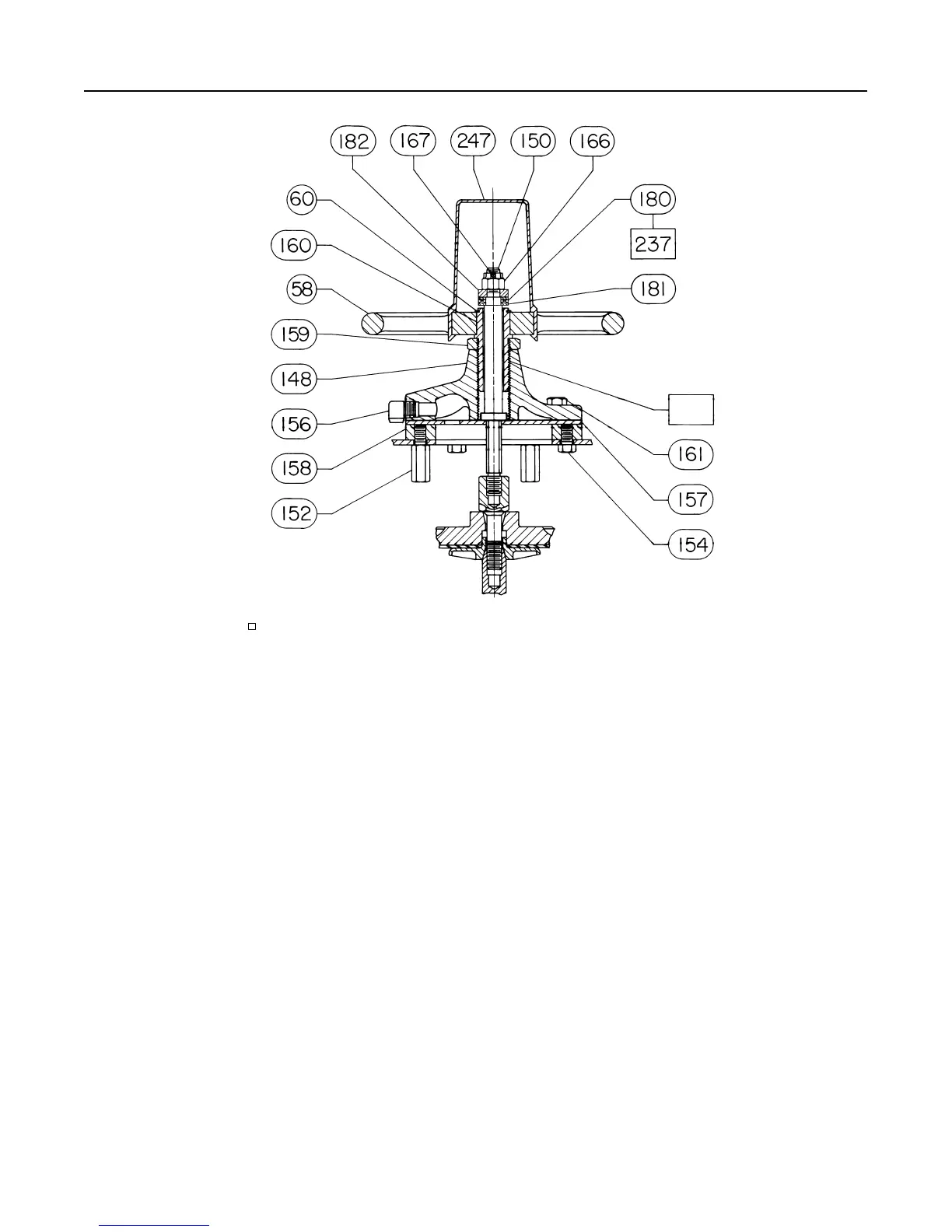

Figure 10. Top-Mounted Handwheel Assembly, Style P2 for Size 45, 50, 60, and 76 Actuators
APPLY LUBRICANT
239
30B3942-A
Key Description Part Number Qty
144 Actuator Stem (Chromium-Plated Steel)
Standard
Size 30 2E8016X0022 1
Size 34 3E8847X0012 1
Size 40 2E8209X0042 1
Sizes 45 & 46 2J3328X0042 1
Sizes 50 & 60 2E8461X0042 1
Sizes 70 & 76 2N131724222 1
Size 87 2N664724222 1
w/Side-Mounted Handwheel
Size 34 2E8209X0042 1
Size 40 2F3259X0012 1
Size 70 76 mm (3-in.) Travel 2N890624222 1
Size 70 to 102 mm (4-in.) Travel 21A9816X012 1
Size 76 23B7066X012 1
Size 87 76 mm (3-in.) Travel 2N889624222 1
Size 87 to 102 mm (4-in.) Travel 22A1501X012 1
Type 667-4 Standard
Size 70 21A3812X012 1
Size 87 22A1963X012 1
Type 667-4 w/Handwheel
Size 70 23A1793X012 1
Size 87 23A0125X012 1
Key Description Part Number Qty
144 Actuator Stem (Chromium-Plated Steel) (continued)
S31600 (316 SST)
Standard
Size 30 1N429135162 1
Size 34 1N429235162 1
Size 40 1N429335162 1
Size 45 1N429535072 1
Sizes 46 & 50 1N429435072 1
Size 60 1N429535072 1
227 Washer, Plain (steel, zn pl)
w/Type 304 Switch
Size 40 through 46 1E658828982 2
Carbon Steel
w/Top-Mounted Handwheel
Size 70 to 76 mm (3-in.) Travel 1A521228992 1
w/Type 304 Switch
Size 60 1A375728992 2
Size 70 & 76 1A375728992 1
228 Stem Disk Spacer [S41600 (416 SST)]
w/Type 304 Switch
Size 70 to 76 mm (3-in) Travel 1N952635132 1
Size 76 1N952635132 1
