Fisher 667 - Page 28

Type 667 Size 30-76 & 87
28

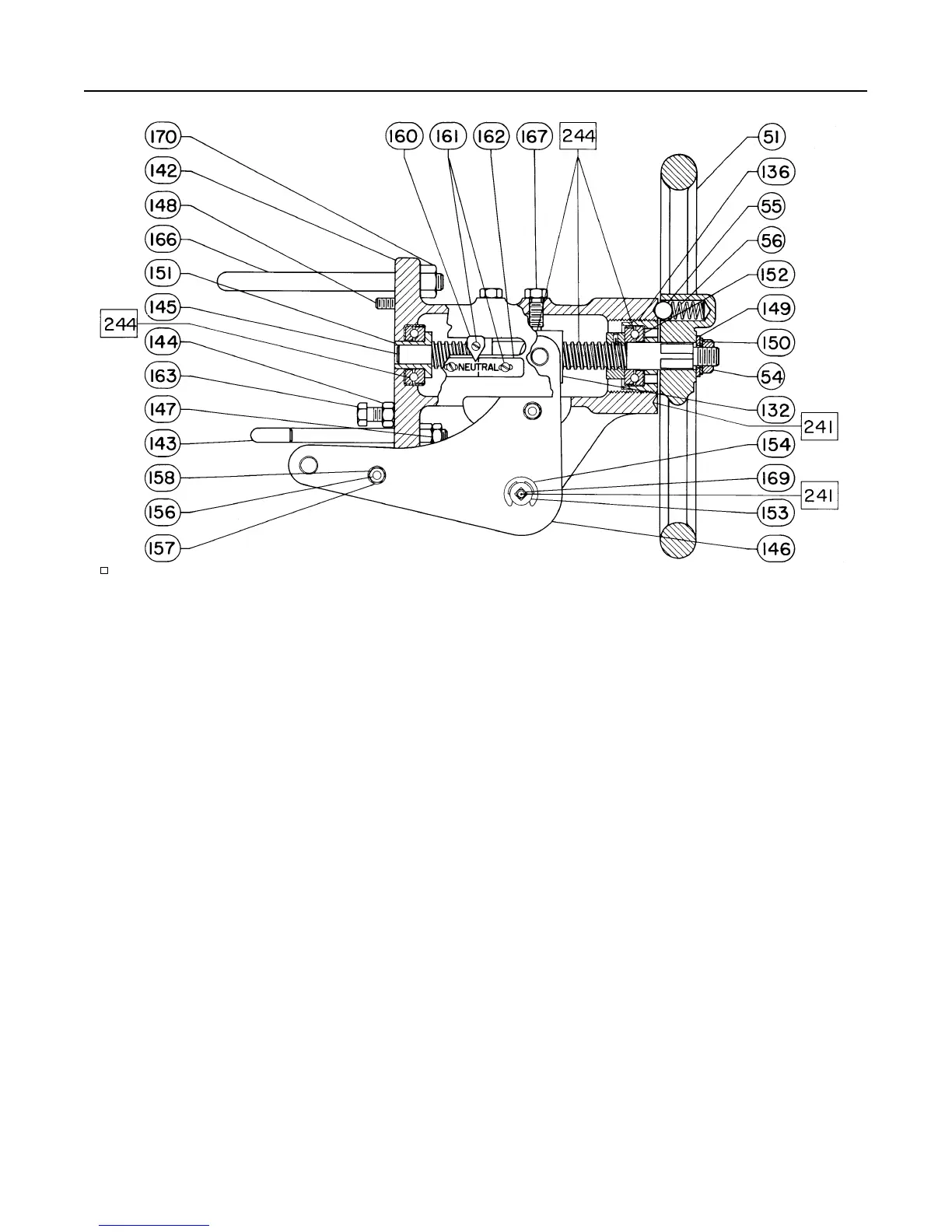

Figure 13. Side Mounted Handwheel Assembly for Size 34 and 40 Actuators
APPLY LUBRICANT
30A8778-D / IL
Key Description Part Number Qty
239 Lubricant, Anti-Seize Lub-3 - - -
Never-Seez or equivalent
not furnished with handwheel
247 Handwheel Cap
Plastic
For Cast Iron Handwheel
Size 30 27A8621X012 1
Size 34 to 60 & 76 (8-inch hdwl) 27A8622X012 1
For Steel Handwheel
Size 34 to 60 & 76 28A1609X012 1
For Cast Iron or Steel Handwheel
Size 70 & 87 37A8623X012 1
253 Spacer, Handjack
Cast Iron
Size 45 to 76 (8-inch hdwl) 23B9218X012 1
Steel
Size 45 to 76 23B9221X012 1
Side-Mounted Handwheel,Size 30-60
(figures 13 and 14)
51 Handwheel
Cast Iron
Size 34 & 40 2D358519052 1
Size 45 to 60 2D405019042 1
54 Hex Jam Nut
Pl Steel
Sizes 34 & 40 1A352424112 1
Sizes 45 to 60 1A352424122 1
Key Description Part Number Qty
55 Ball
Steel 1A342732992 1
56 Spring
Bronze 0D005916012 1
132 Operating Nut (steel)
Left-Hand (Direct-Acting Valve)
Sizes 34 & 40 1F659024092 1
Sizes 45 to 60 2F548524092 1
Right-Hand (Reverse-Acting Valve)
Sizes 34 & 40 1F658924092 1
Sizes 45 to 60 2F548424092 1
136 Bearing Retainer
Steel
Sizes 45 to 60 1D385224092 1
142 Handwheel Body
Cast Iron
Sizes 34 & 40 3F6572000A2 1
Sizes 45 to 60 3F1446000A2 1
143 Mounting Bolts
Steel
Sizes 34 & 40 10A8522X012 2
Sizes 45 & 46 18A9147X012 2
Sizes 50 & 60 1F155624092 2
144 Hex Nut
Pl Steel
Sizes 34, 40, 50 & 60 1A375324122 4
Sizes 45 & 46 1A375324122 2
