Type 667 Size 30-76 & 87
29

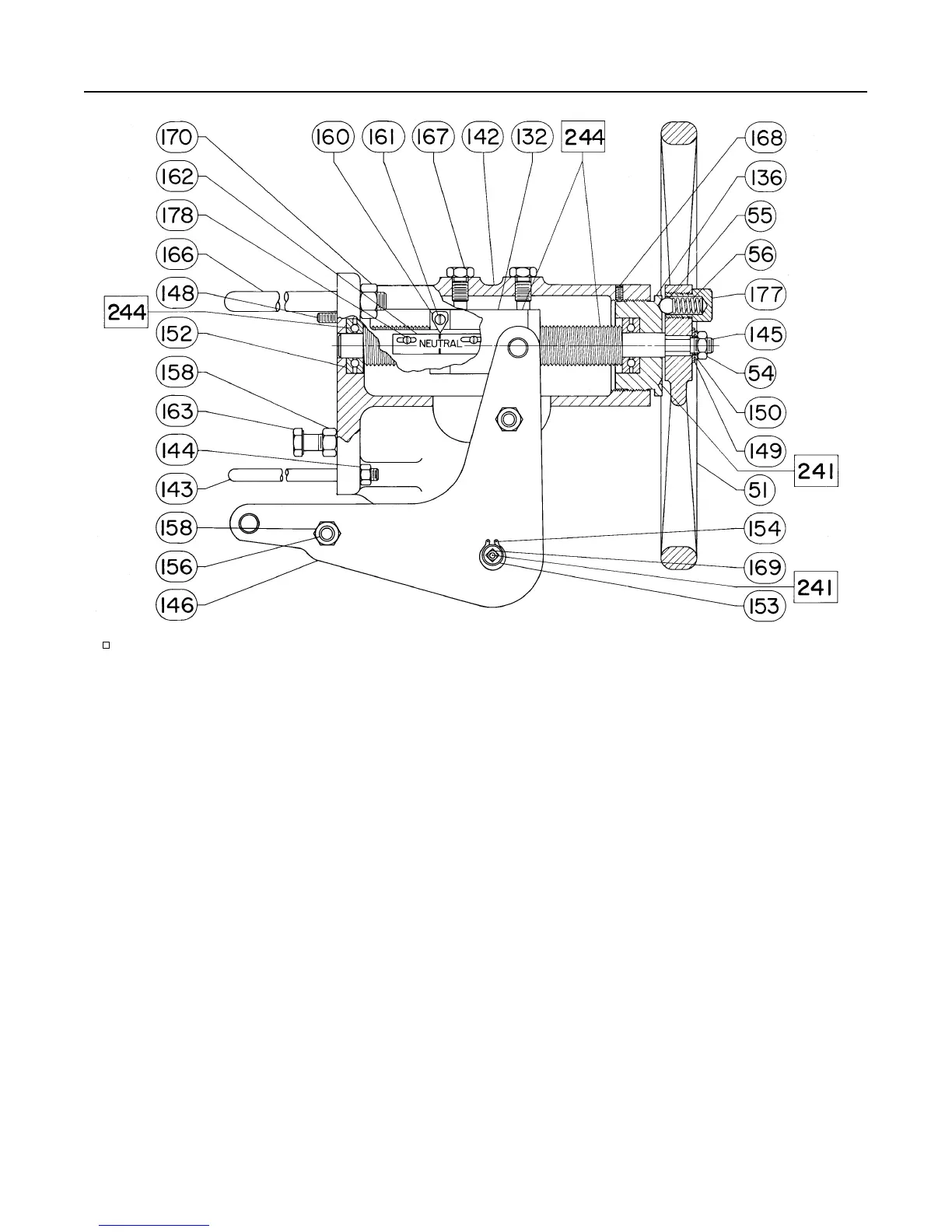

Figure 14. Side-Mounted Handwheel Assembly for Size 45 and 60 Actuators
APPLY LUBRICANT
40A8779-D / IL
Key Description Part Number Qty
145 Handwheel Screw
Bronze
Left-Hand (Direct-Acting Valve)
Sizes 34 & 40 1F6584000A2 1
Sizes 45 to 60 1F548614052 1
Right-Hand (Reverse-Acting Valve)
Size 34 & 40 1F6583000A2 1
Size 45 to 60 1F548714052 1
146 Lever & Pin Assembly
Steel
Right-Hand Side
Sizes 34 & 40 1F6614000A2 1
Sizes 45 to 60 1F1541000A2 1
Left-Hand Side
Sizes 34 & 40 1F6613000A2 1
Sizes 45 to 60 1F1539000A2 1
147 Hex Jam Nut (pl steel)
Sizes 34 & 40 1A352224122 2
148 Dowel Pin (Steel, zn pl)
Sizes 34 to 60 1D419828992 2
149 Washer (pl steel) 1A518925072 1
150 Lockwasher (pl steel) 1A353828982 1
151 Bushing (pl steel)
Sizes 34 & 40 1F657924092 1
152 Ball Bearing (steel) 1D361399012 2
Key Description Part Number Qty
153 Lever Pivot Pin (416 SST)
Sizes 34 & 40 1F658135232 1
Sizes 45 to 60 1F156235232 1
154 Retaining Ring (pl steel)
Sizes 34 & 40 1F599428982 2
Sizes 45 to 60 1A903028992 2
155 Spacer (steel)
Sizes 34 & 40 1F658224092 2
Sizes 45 to 60 1F162524092 2
156 Screw (pl steel)
Sizes 34 & 40 1U8135K0012 2
Sizes 45 to 60 1F157624052 2
157 Lockwasher (pl steel) Sizes 34 & 40 1C225628982 2
158 Hex Nut (pl steel) Sizes 34 & 40 1A345724122 2
Sizes 45 to 60 1A341224122 4
159 Pointer Mounting Bolt (416 SST)
Sizes 34 & 40 1F657835132 1
Sizes 45 to 60 1F156535132 1
160 Pointer (302 SST) 1F157536012 1
161 Machine Screw (pl steel)
Sizes 34 & 40 1A344524052 8
Sizes 45 to 60 1E175828982 1
162 Indicator Plate (Aluminum)
Sizes 34 & 40 1F936411992 1
Sizes 45 to 60 1D357411992 1
