Fisher 667 - Page 32

Type 667 Size 30-76 & 87
32

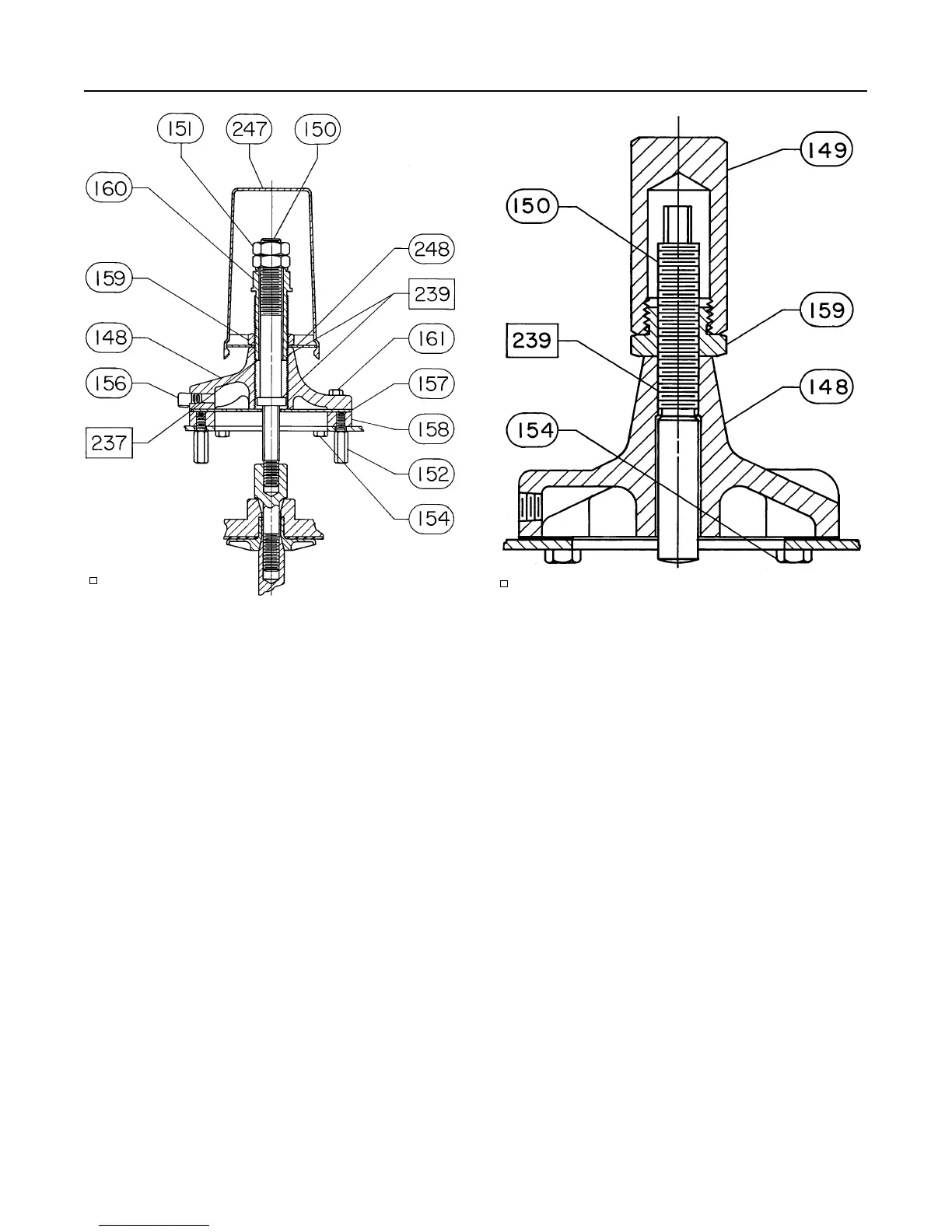

Figure 17. Style 11 Up Or Down Travel Stop
(Casing Mounted)
APPLY LUBRICANT
38A1212-B / IL
Key Description Part Number Qty
148 Travel Stop Body (cast iron) (continued)
Style 13 Up Travel Stop
Size 30 w/ 1/4 NPT Connection 37A9437X012 1
Style 13 Up Travel Stop (cont.)
Size 30 w/ 1/2 NPT Connection 37A9438X012 1
Sizes 34 & 40 w/ 1/4 NPT Connection 37A9439X012 1
Sizes 34 & 40 w/ 1/2 NPT Connection 37A9440X012 1
Sizes 45 through 60 w/ 1/4 NPT
Connection 37A9432X012 1
Sizes 45 through 60 w/ 1/2 NPT
Connection 37A9434X012 1
149 Travel Stop Cap (brass)
Style 10 Down Travel Stop
Sizes 30 through 40 1F597814012 1
Sizes 45 through 60 1H111114012 1
Sizes 70 & 87 1R387614012 1
Style 12 Up Travel Stop
Sizes 30 through 40 1F597814012 1
Sizes 45 through 60 1F839614012 1
Sizes 70 & 87 1R387614012 1
Steel
Style 12 Up Travel Stop
Sizes 30 through 40 1F597824092 1
150 Extension Rod
S41600 (416 SST)
Style 11 Up & Down Travel Stop
Sizes 34 & 40 28A1267X022 1
Steel, zn pl
Style 11 Up & Down Travel Stop
Sizes 45 through 60 28A1266X012 1
APPLY LUBRICANT
Figure 18. Style 12 Up Travel Stop (Casing Mounted)
28A1208-B / IL
Key Description Part Number Qty
150 Travel Stop Stem
S30300 (303 SST)
Style 10 Down Travel Stop
Size 30 1H330735032 1
Sizes 34 & 40 1F753635032 1
Sizes 45 through 60 1J232735032 1
Sizes 70 & 87 1V7764X00A2 1
Bronze
Style 12 Up Travel Stop
Sizes 30 through 40 27A9655X012 1
Sizes 45 through 60 27A9656X012 1
Sizes 70 & 87 27A9763X012 1
Style 13 Up Travel Stop
Size 30 27A9652X012 1
Sizes 34 & 40 27A9653X012 1
Sizes 45 through 60 27A9654X012 1
151 Hex Jam Nut (steel, zn pl)
Style 10 Down Travel Stop
Sizes 30 through 40 1A3537X0042 1
Sizes 45 through 87 1A3511X0062 1
Style 11 Up & Down Travel Stop
Sizes 34 & 40 1K130824122 2
Sizes 45 through 60 1K130424122 2
Style 13 Up Travel Stop
Sizes 30 through 60 18A2300X012 1
Style 14 Up Travel Stop
Sizes 30 through 60 1A319224122 1
Sizes 70, 87 1F118724122 1
152 Travel Stop
Style 10 and 11 Travel Stops See table
