Fisher 667 - Page 33

Type 667 Size 30-76 & 87
33

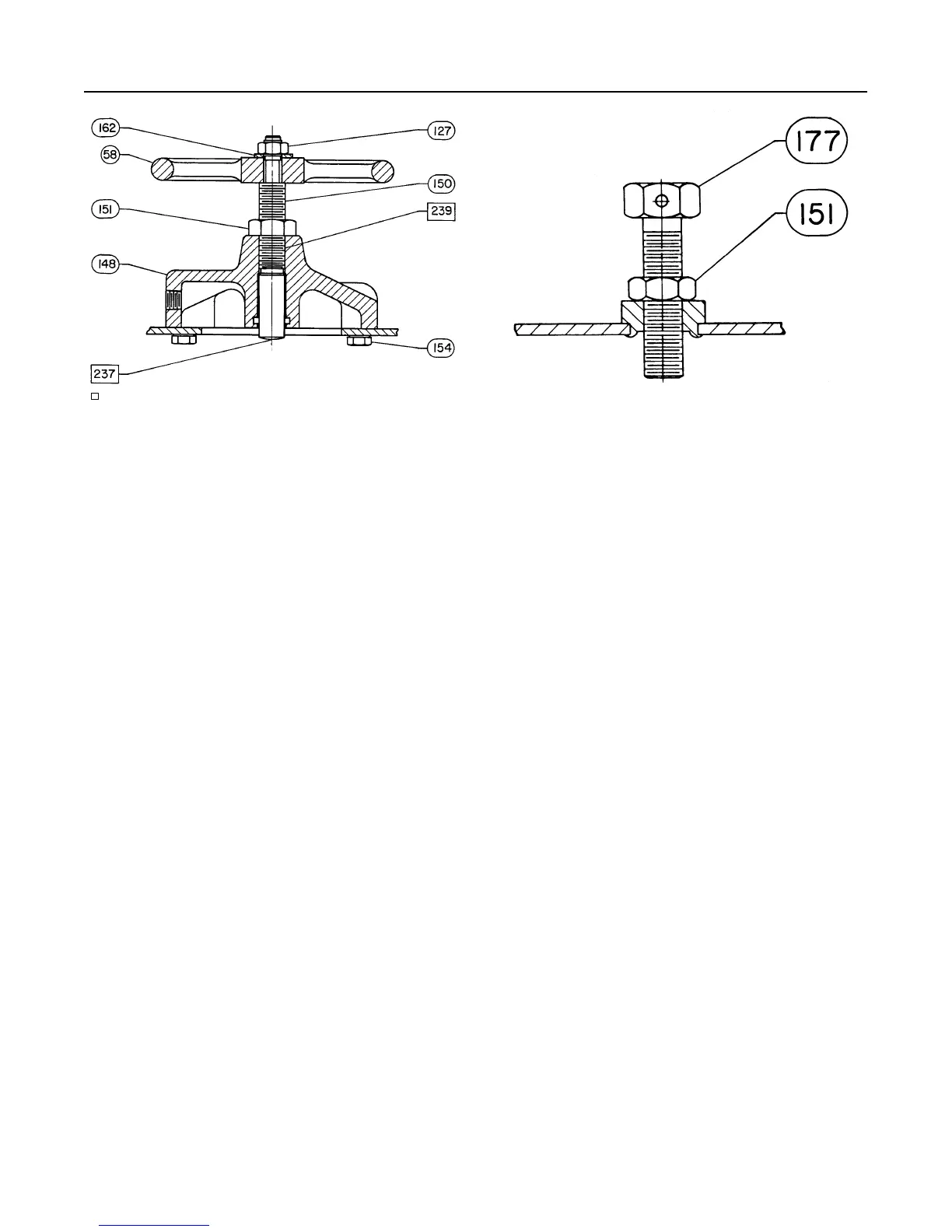

Figure 19. Style 13 Up Travel Stop
(Casing Mounted),size 30 shown
APPLY LUBRICANT
28A1204-B / IL
Key Description Part Number Qty
153 Nut, Hex (steel, zn pl)
Style 10 Down Travel Stop
(total of 2 req’d for size 30)
Size 30 1A4132X0032 1
Size 30 1A3465X0092 1
Sizes 34 & 40 1A4132X0032 2
Sizes 45 through 87 1A3754X0072 2
154 Screw, Cap, Hex Hd (steel, zn pl)
Style 10 Down Travel Stop
Sizes 30 through 60 1A368424052 4
Sizes 70 & 87 1N129328992 9
Style 11 Up & Down Travel Stop
Sizes 34 & 40 1D529824052 3
Sizes 45 through 60 1A368424052 4
Style 12 Up Travel Stop
Sizes 30 through 40 1A368424052 6
Sizes 45 through 60 1A368424052 8
Sizes 70 & 87 1N129328992 12
Style 13 Up Travel Stop
Sizes 30 through 40 1A368424052 6
Sizes 45 through 60 1A368424052 8
155 Washer, Lock, Split (steel)
Style 10 Down Travel Stop
Size 30 1H723125072 1
Sizes 34 & 40 16A1352X012 1
Sizes 45 through 60 15A7932X012 1
Sizes 70 & 87 15A7932X012 1
156 Vent
Style 10 & 12 Travel Stop
Sizes 30 through 60 27A5516X012 1
Sizes 70 & 87 17A6572X022 1
Style 11 Up & Down Travel Stop
Sizes 30 through 60 27A5516X012 1
Style 13 Up Travel Stop
1/4 NPT Connection 27A5516X012 1
1/2 NPT Connection 17A6572X022 1
157 Guide Plate (steel)
Style 11 Up & Down Travel Stop
Sizes 34 & 40 1F116428992 1
Sizes 45 through 60 1F119528992 1
158 Mounting Plate (cast iron)
Style 11 Up & Down Travel Stop
Sizes 34 & 40 1F116519042 1
Sizes 45 through 60 1F119319042 1
Figure 20. Style 14 Up Travel Stop
(Casing Mounted)
AV8096-B / IL
Key Description Part Number Qty
159 Nut, Travel Stop
Bronze
Style 11 Up & Down Travel Stop
Sizes 34 & 40 18A2301X012 1
Sizes 45 through 60 18A2302X012 1
Brass
Style 12 Up Travel Stop
Sizes 30 through 40 18A2303X012 1
Steel
Sizes 30 through 40 18A2303X022 1
159 Travel Stop Nut (brass)
Style 12 Up Travel Stop
Sizes 45 through 60 18A1272X012 1
160 Screw, Handwheel (bronze)
Style 11 Up & Down Travel Stop
Sizes 34 & 40 27A9640X012 1
Sizes 45 through 60 27A9638X012 1
161 Screw, Cap, Hex Hd (steel, zn pl)
Style 11 Up & Down Travel Stop
Sizes 34 & 40 1A3369X0122 6
Sizes 45 through 60 1A341824052 8
162 Washer (pl steel)
Style 13 Up Travel Stop
All Sizes 1A518925072 1
177 Travel Stop Screw
S41600 (416 SST)
Style 14 Up Travel Stop
Sizes 30 through 40 1F753735132 1
Sizes 45 through 60 1K131135132 1
Sizes 70 & 87 13A2133X012 1
184 Nipple, Pipe, NPT (steel, zn pl)
Style 10 & 12 Travel Stop
Sizes 70 & 87 1K201526022 1
Style 13 Up Travel Stop
w/ 1/2-In NPT Connection
Size 30 1A473526012 1
Sizes 34 & 40 1C782526012 1
Sizes 45 through 60 1H392826012 1
237 Lubricant, Lubriplate MAG-1
or equivalent
Not Furnished with Travel Stop - - -
239 Lubricant, Anti-Seize Lub-3 Never-Seez or equivalent
Not Furnished with Handwheel - - -
