Fisher 8560 - Page 34

Instruction Manual
D102013X012
8560 Valve
June 2017
34

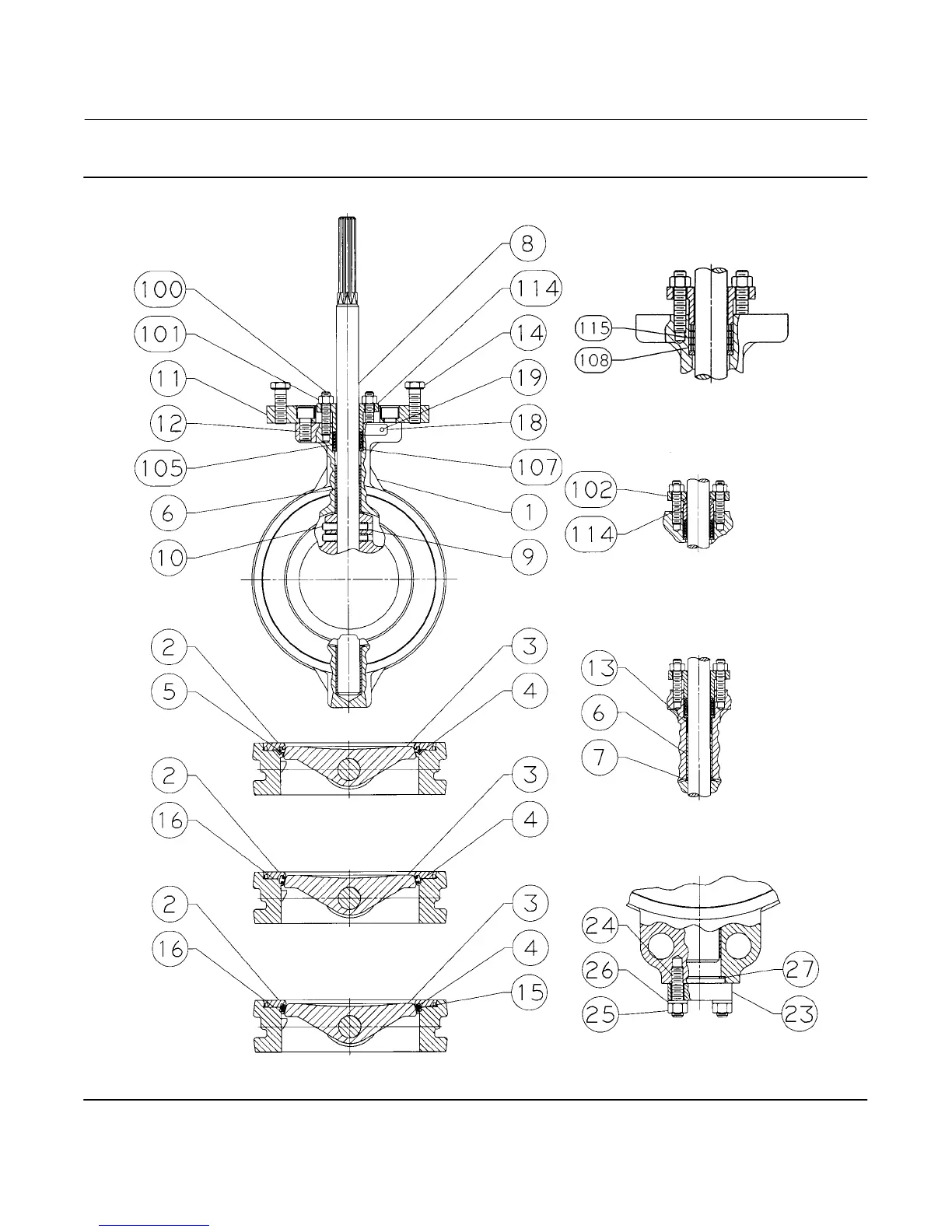

Figure 14. Valve Assembly for NPS 3 through 12
NOTE:
KEYS 21, 22, AND 28 ARE NOT SHOWN.
GRAPHITE PACKING
34B5064-A / DOC
75B0090‐A
NOVEX SEAL
PHOENIX III SEAL
PTFE SEAL
ALLOY FOLLOWER ASSY
METAL BEARING
CL150
SIZE 12 CL300
