Fisher FIELDVUE DVC6200 HW1 - HART Digital Valve Controllers - ATEX Approvals; ATEX Intrinsically Safe for DVC6200 HW1; ATEX Intrinsically Safe for DVC6200 HW2, SIS, DVC6205 HW2; ATEX Flameproof for DVC6200 HW1, DVC6205 HW1

SIS
Instruction Manual Supplement
D103797X012
DVC6200 Series Approval Nameplates
December 2014
3
ATEX

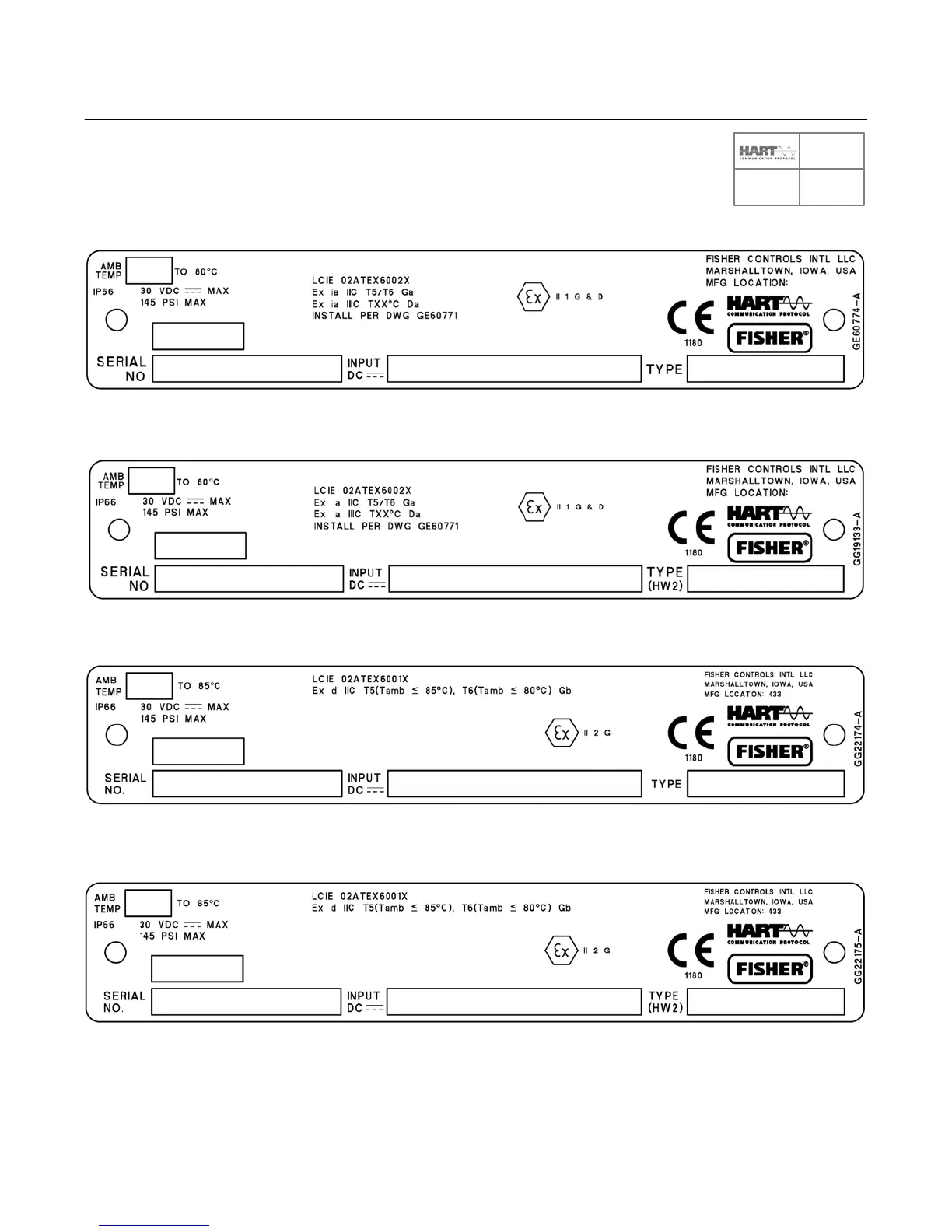

Figure 5. ATEX Intrinsically Safe Approval Nameplate for DVC6200 HW1
Figure 6. ATEX Intrinsically Safe Approval Nameplate for DVC6200 HW2, DVC6200 SIS, DVC6205 HW2
Figure 7. ATEX Flameproof Approval Nameplate for DVC6200 HW1, DVC6205 HW1
Figure 8. ATEX Flameproof Approval Nameplate for DVC6200 HW2, DVC6200 SIS, DVC6205 HW2
