7
4、Installation of Wired Controller and Project Debugging

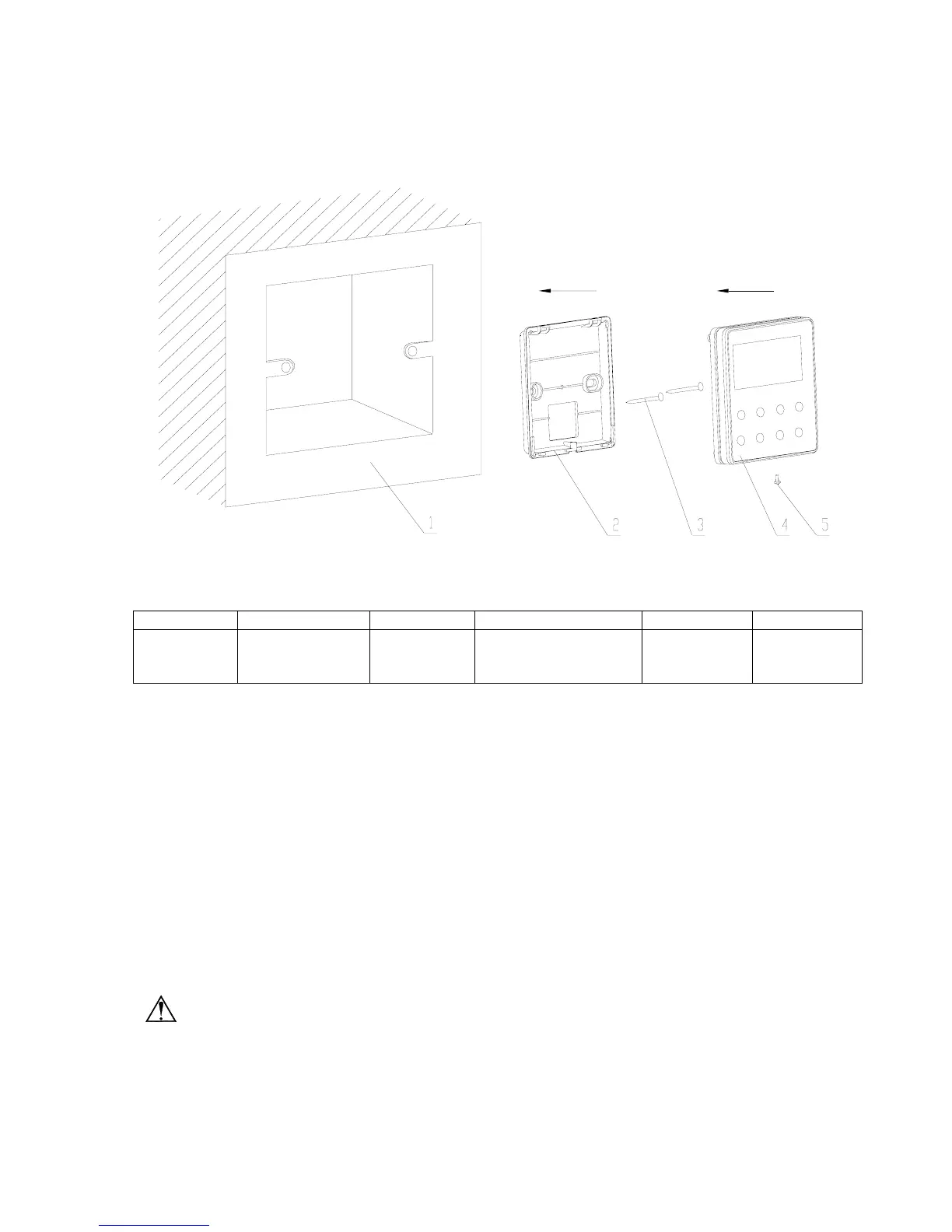

Fig.4.1: Sketch for Installation of Wired Controller
Fig.4.1: Sketch for Installation of Wired Controller. Pay attention to the following items during
installation of wired controller:
1. Cut off power supply of heavy-current wire embedded in mounting hole in the wall before
installation. It is prohibited to perform the whole procedure with electricity.
2. Pull out 4-core twisted pair line in mounting hole and then make it through the rectangle hole at
the back of controller’s soleplate.
3. Joint the controller’s soleplate on wall face and then fix it in mounting hole with screws M4X25.
4. Insert the 4-core twisted pair through rectangle hole into controller’s slot and buckle the front
panel and soleplate of controller together.
5. At last, fix the controller’s front panel and soleplate with screws ST2.2X6.5.
Caution:
During connection of wirings, pay special attention to the following items to avoid interference of
electromagnetism to unit and even failure of it.
1. To ensure normal communication of the unit, signal line and wiring (communication) of wired
controller should separate from power cord and indoor/outdoor connection lines. The distance between
4.1 Installation of Wired Controller
No. 1 2 3 4 5
Description Socket’s base
box installed in
the wall
Soleplate of
controller
Screw M4X25 Front panel of
controller
Screw
ST2.2X6.5
To Next Page
