15

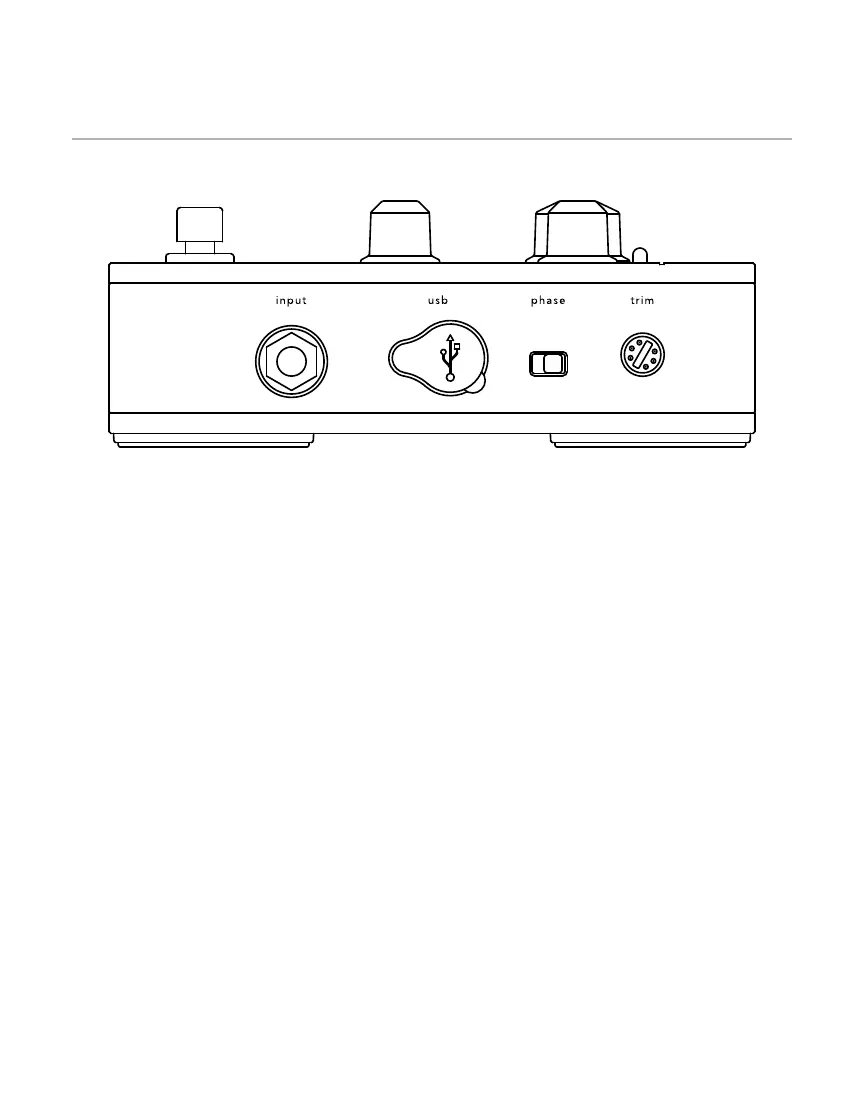

Right Side Panel
Trim
Raise or lower the trim to optimize the input level for your pickup. Play
hard and adjust trim so clip/batt ashes occasionally. Some pickup
systems may not cause the light to ash at all and other onboard preamps
may require you to turn their output down to achieve an optimum level.
Phase
Use the phase switch to improve bass response at low volume and sup-
press feedback at high volume. Move the phase switch and leave it in
the position most pleasing to your ear.
USB
After installing Aura Image Gallery software, connect your computer here.
Input
Plug in your guitar here with a standard ¼-inch instrument cable. If you
have a passive undersaddle pickup (no battery onboard), always plug into
the Aura Imaging Pedal rst, even if you use a pedal tuner.
Insert a plug into the input jack, and the Aura Imaging Pedal powers up.
To conserve the battery, remove the plug from the input when not in use.
