FISNAR DC50 - External Machine Actuation

DC50 Digital Dispenser Operating Manual
© 2020 Fisnar - 18 - DC50 Rev 02
EXTERNAL MACHINE ACTUATION

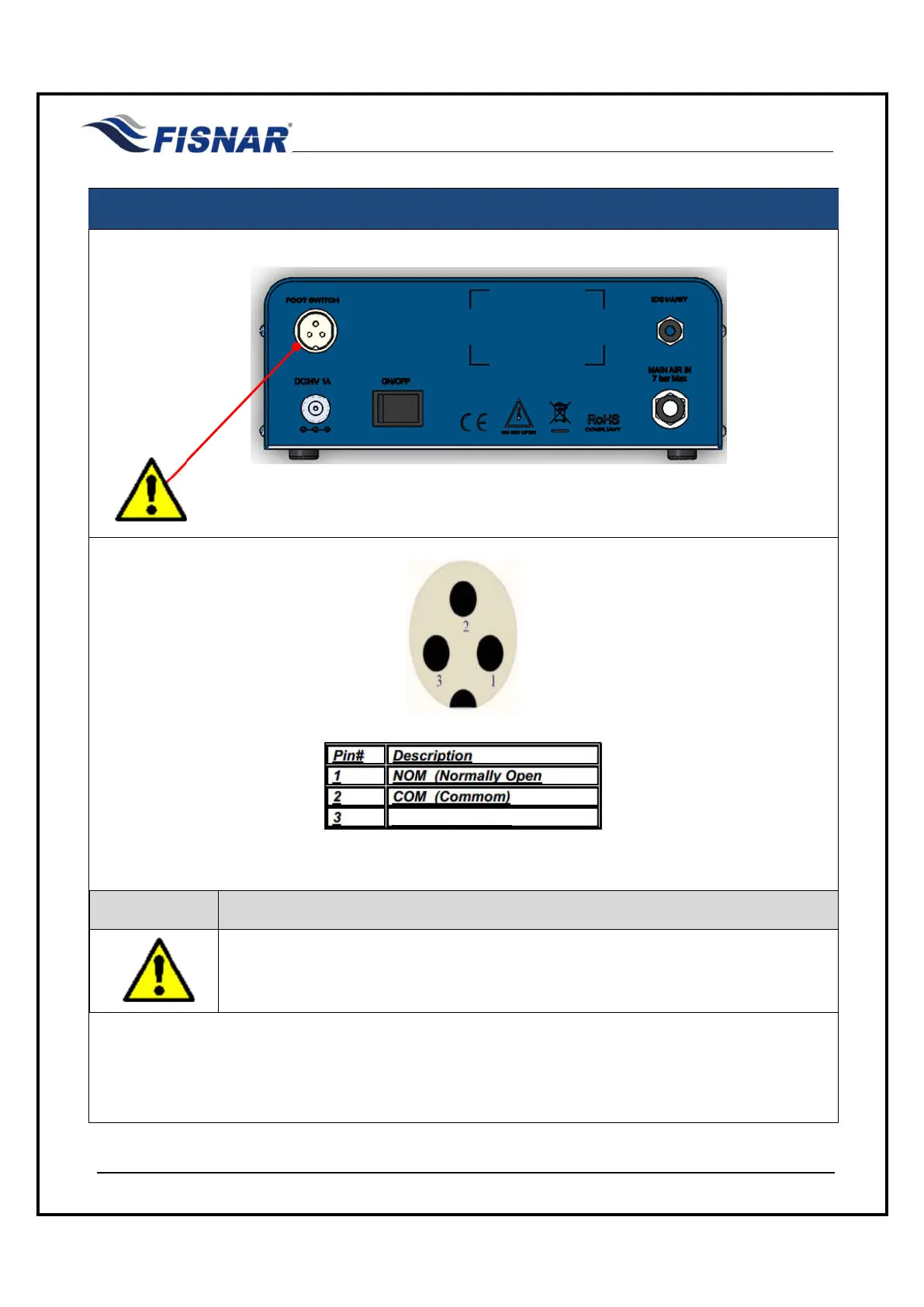

FIG. 9: External Machine Actuation
Input
A dry contact closure (0 Volt) between the Input (Pin #1) and Common (Pin #2)
pins will trigger a dispense signal.
PLEASE READ:
Do not apply a voltage between the input pin (1) and the common pin (2).
Doing so will damage the control board and void all warranty conditions.
