FISNAR DC50 - Machine Setup

DC50 Digital Dispenser Operating Manual
© 2020 Fisnar - 11 - DC50 Rev 02
MACHINE SET UP

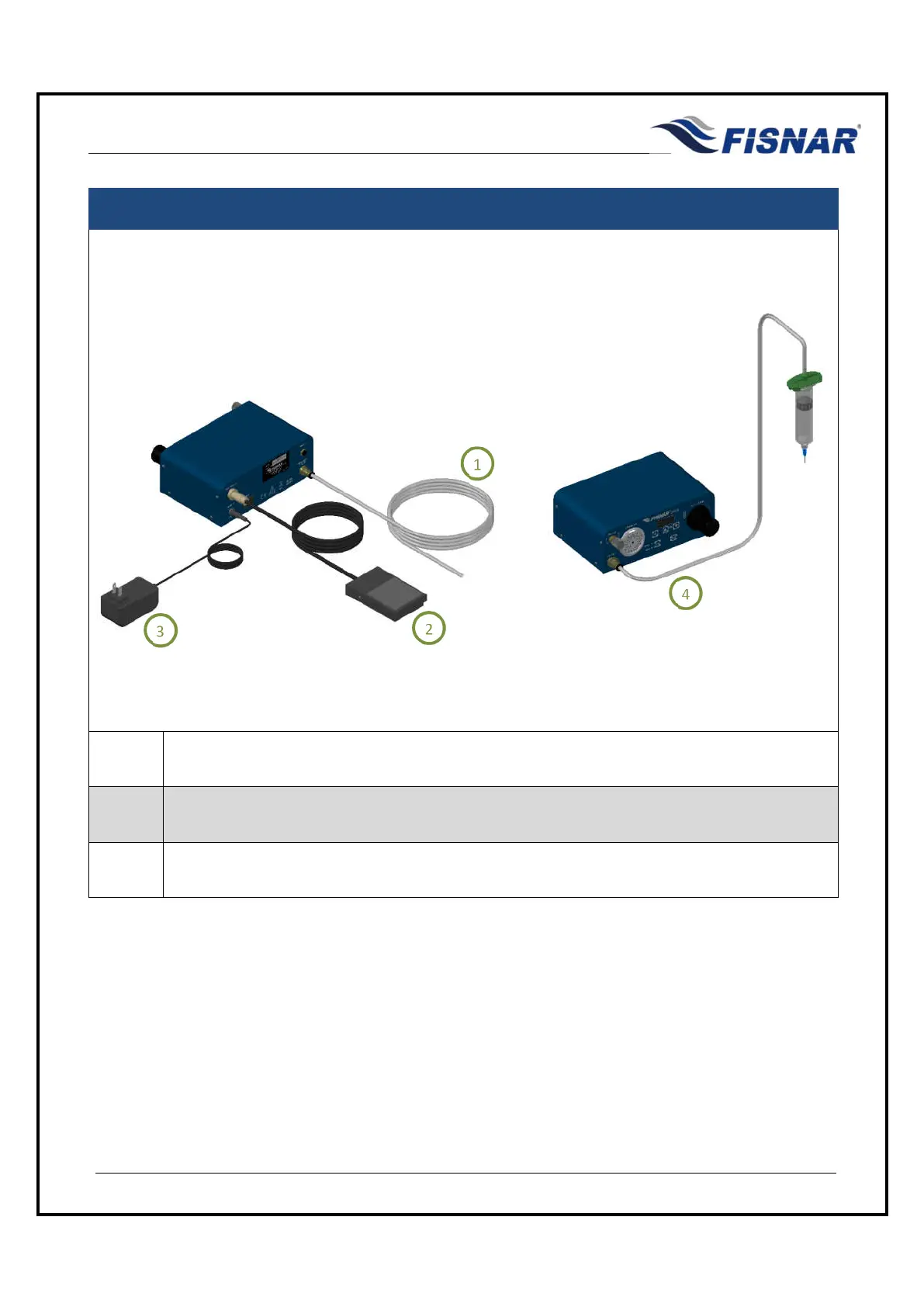

FIG. 5: Front and Back Views
1.
Connect air hose (1) from compressed air 70-100 psi (5-7 bar) to the air inlet port on the
back of the machine. See FIG. 5.
2.
Insert the Foot Pedal connector (2) to the port on the back of the machine. See FIG. 5.
3.
Attach appropriate country type plug adapter onto the power supply and then connect
Electrical Power Cord (3) to the port on the back of the machine. See FIG. 5.
1
2
3
4
