FLARING FL-550D - Included Accessories; Installation Guide; Air Regulator Setup

4

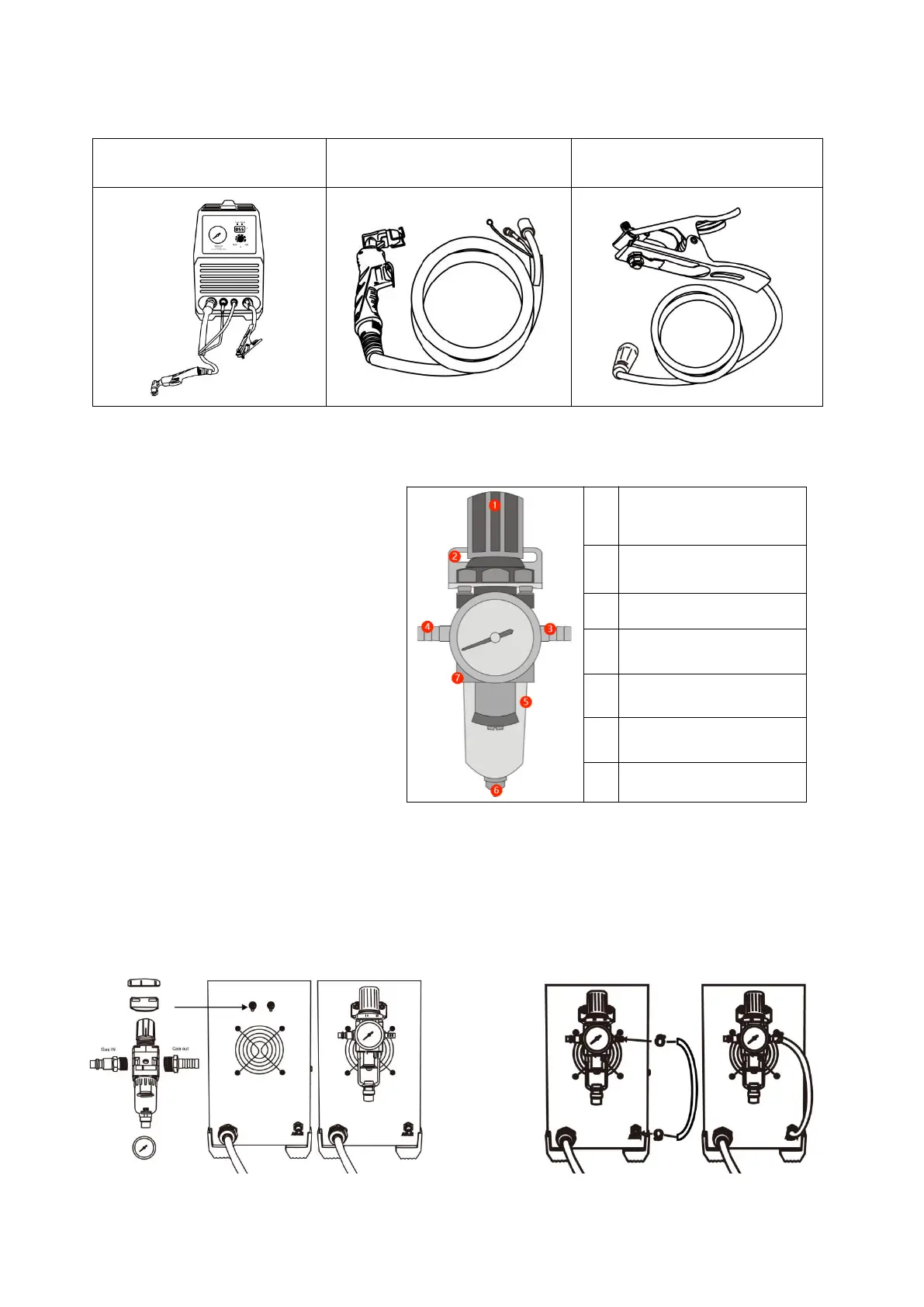

1.3 Accessories list
No Touch Pilot Arc High
Frequency Plasma Cutter*1
AG60 Plasma Cutter Torch*1 Ground wire*1
2 Installation instruction
2.1 Installation of Air Regulator
(1) Wrap the copper gas nozzle around the
sealing tape and tighten it on the IN and
OUT ends;
(2) Wrap the meter head with the sealing tape
and tighten it on the meter head installation
position;
(3) Fix the connecting frame to the installation
position of the pressure reducing valve
behind the welder as shown in the figure;
(4) Unscrew the rubber nut and fix the
pressure
reducing valve on the connecting frame as
shown in the figure;
(5) Turn on the air valve switch, lift up the
pressure regulating knob, adjust the air
pressure to the specified air pressure (turn to "+" to increase the air pressure, and to "-" to decrease the air
pressure), then Press down the pressure regulating knob;
(6) The scale position of the meter,suggest the indicated position is 60-70PSI(about 0.4Mpa) air pressure. When there is
too much water in the filter cylinder, the drain valve should be opened to drain the water.
1
Pressure regulating knob
2
Fixed connection frame
3
Air outlet
4
Air inlet
5
Filter cylinder
6
Drain out
7
Pressure gauge
