Flavel Calibre FBFC**MN2 - Removal; Replacing the Glass Frame

5.9 REMOVAL / REPLACING THE GLASS FRAME
5.9.1 Remove the 2 screws which hold the convection slot cover to the
firebox, as shown below in figure 14.
5.9.2 Remove the burner heat shield by unscrewing the 2 off retaining screws
as shown below in figure 14.
5.9.3 Remove the 4 off retaining nuts as shown below in figure 14.
5.9.4 Remove the 3 off top retaining screws as shown below in figure 14.
5.9.5 Remove the 2 off bottom retaining screws as shown below in figure 14.
5.9.6 Re-assemble in reverse order.
NOTE :
Always ensure that a consistent seal between the combustion
chamber and the glass frame is achieved.

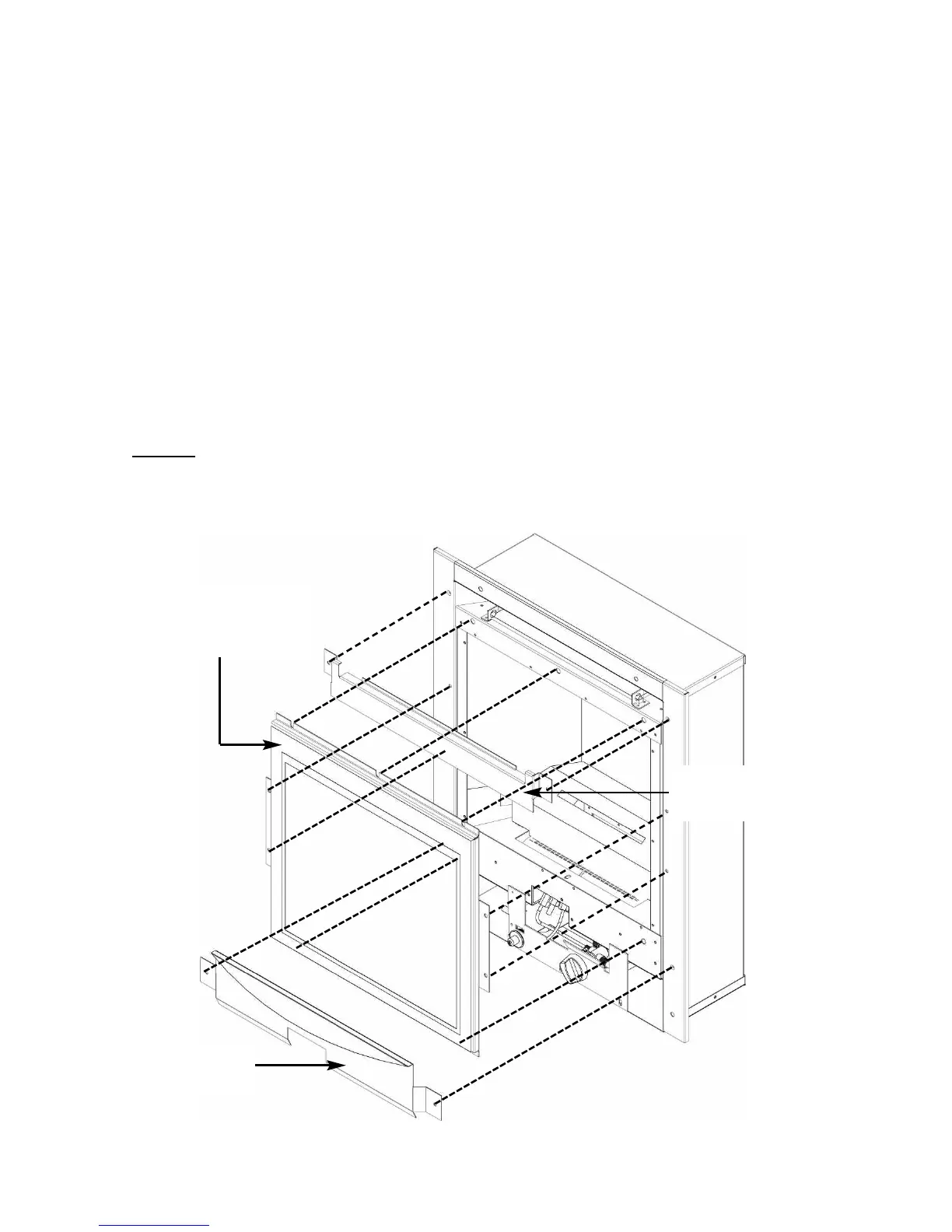

Fig. 14
58
Burner heat
shield, secured by
2 screws
Glass frame assembly,
secured by 5 off
screws and 4 off M5
retaining nuts
Convection slot
cover, secured by 2
screws
