Flavel Calibre FBFC**MN2 - Assembling Fuel Bed and Commissioning; Fitting the Fuelbed

SECTION 3
ASSEMBLING FUEL BED AND COMMISSIONING
3.1 FITTING THE FUELBED

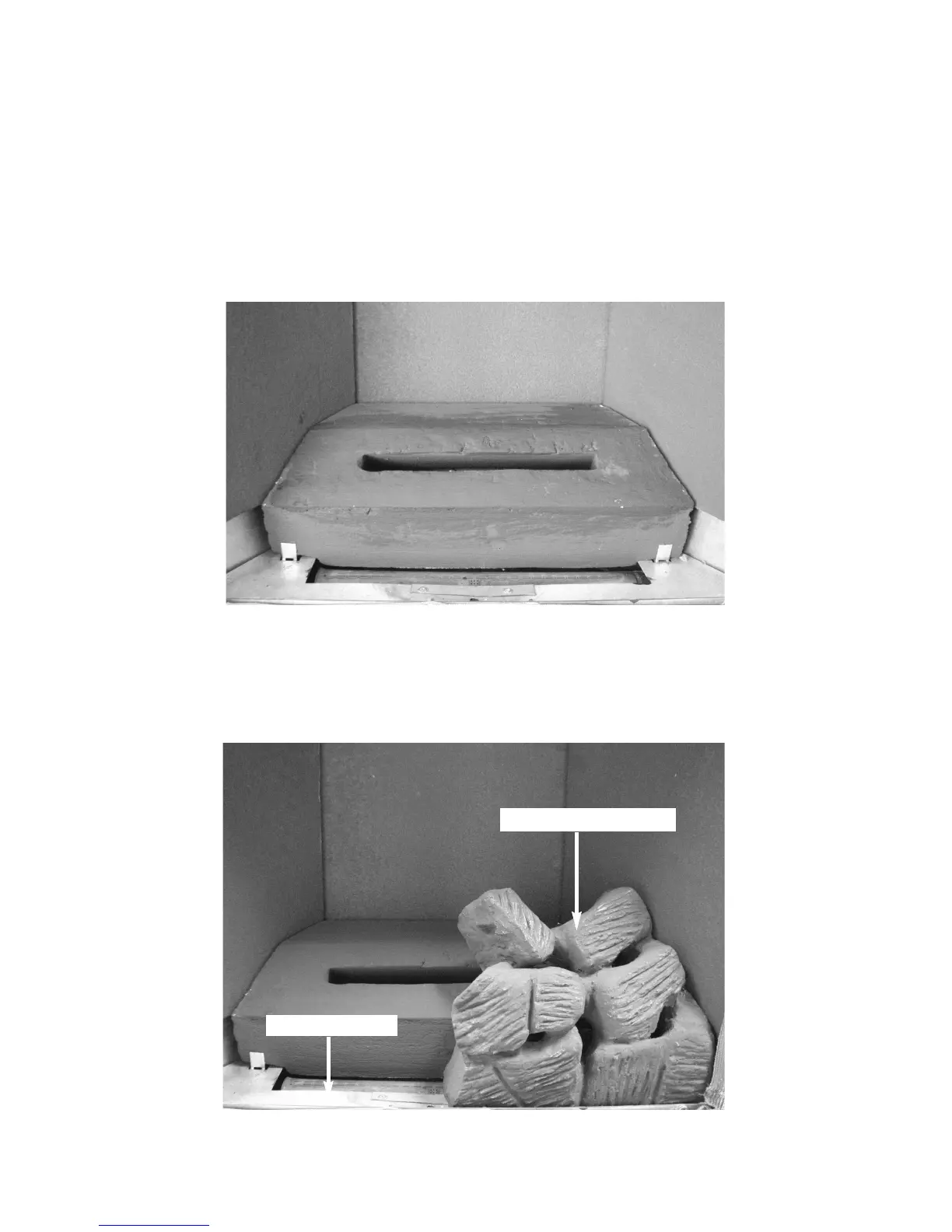

3.1.1 Place the ceramic fibre support behind the burner as shown below in
figure 12.
Fig. 12
3.1.2 Place the front right coal moulding onto the front coal support as shown
below in figure 13.
Fig. 13
16
Right Front Coal Moulding
Front Coal Support
