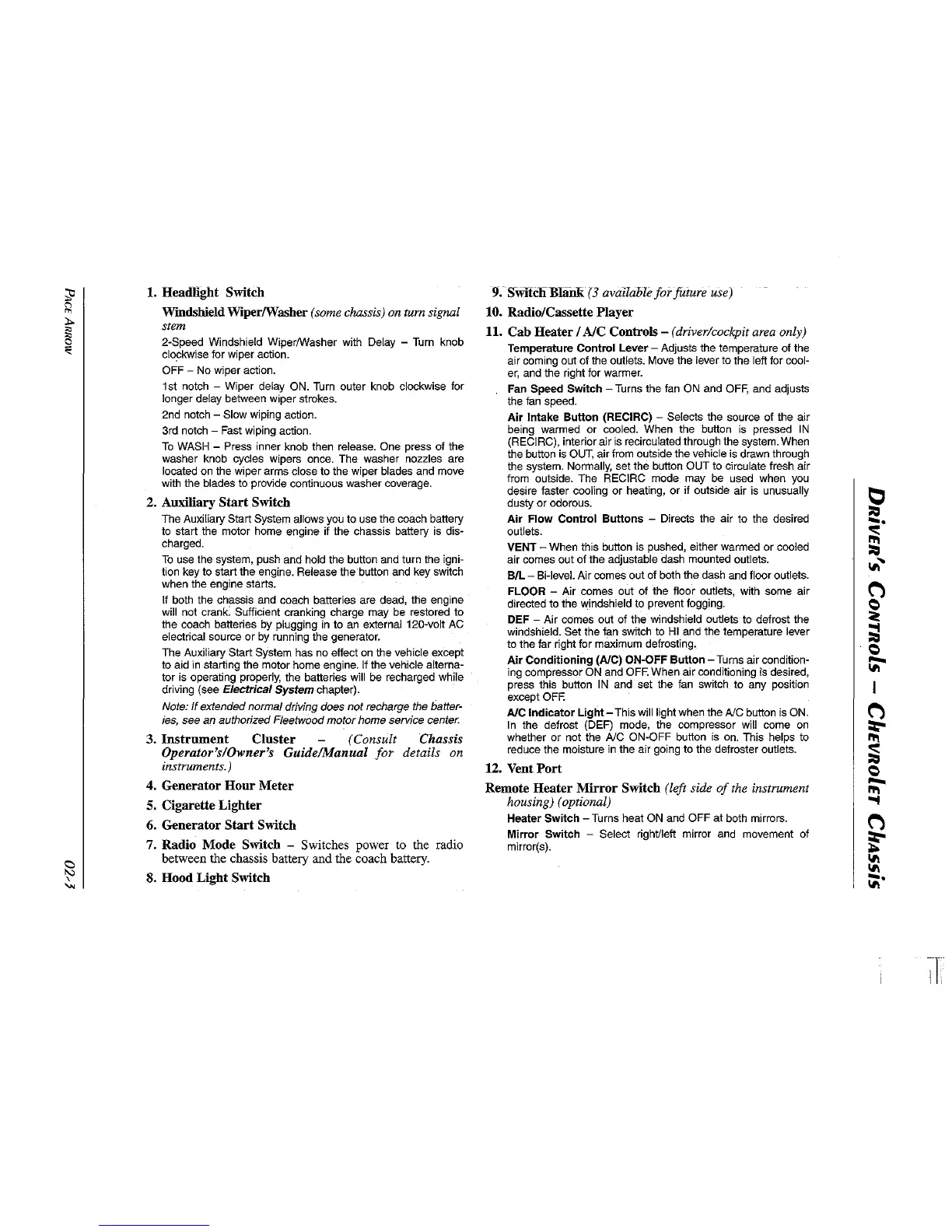

Headlight Switch
Wmdshield WiperlWasher (some chassis) on tum signal
stem
2·Speed Windshield WiperlWasher with Delay - Turn knob
clockwise for wiper action.
OFF - No wiper action.
1st notch - Wiper delay
ON. Turn outer knob clockwise for
longer delay between wiper strokes.
2nd notch - Slow wiping action.
3rd notch - Fast wiping action.
To
WASH - Press inner knob then release. One press of the
washer knob cycles wipers once. The washer nozzles are
located on the wiper arms close to the wiper blades and
move
with the blades to provide continuous washer coverage.
2. Auxiliary
Start
Switch
The Auxiliary Start System allows you to use the coach battery
to start the motor home engine if the chassis battery is
dis·
charged.
To
use the system, push and hold the button and turn the igni-
tion key to start the engine. Release the button and key switch
when the engine starts.
If both the chassis and coach batteries are dead, the engine
will not crank: Sufficient cranking charge may be restored to
the coach batteries by plugging in to an external
120-volt AC
electrical source or by running the generator.
The Auxiliary Start System has no effect on the vehicle except
to aid in starting the motor home engine.
If the vehicle alterna-
tor is operating properly, the batteries will be recharged while
driving (see
Electrical System chapter).
Note:
If
extended
normal
driving does
not
recharge the batter-
ies, see an authorized Fleetwood motor home service center.
3.
Instrument
Cluster (Consult Chassis
Operafor's/Owner's
Guide/Manual
for
details on
instruments. )
4. Generator
Hour
Meter
5.
Cigarette Lighter
6. Generator
Start
Switch
7. Radio Mode Switch - Switches power
to
the radio
between
the
chassis battery and the coach battery.
8. Hood Light
Switch
9.
S-Witi:lilUliDR
[3
available forfoture use)
10. Radio/Cassette Player
11. Cab Heater /
AlC
Controls - (driverlcockpit area only)
Temperature
Control
Lever
- Adjusts the temperature of the
air coming out of the outlets. Move the lever to the left for
cool-
er,
and the right for warmer.
Fan
Speed
Switch
- Turns the fan ON and
OFF,
and adjusts
the
fan
speed.
Air
Intake
Button
(RECIRC) - Selects the source of the air
being warmed or cooled. When the button is pressed
IN
(RECIRC),
interior air is recirculated through the system. When
the button is
OUT,
air from outside the vehicle is drawn through
the system. Normally, set the button
OUT to Circulate fresh air
from outside. The
RECIRC mode may be used when you
desire faster cooling or heating, or if outside air is unusually
dusty or odorous.
Air
Flow
Control
Buttons
- Directs the air to the desired
outlets.
VENT - When this button is pushed, either warmed or cooled
air comes out of the adjustable dash mounted outlets.
BIL
- BHeve!. Air comes out of both the dash and floor outlets.
FLOOR - Air comes out of the floor outlets, with some air
directed to the windshield to prevent fogging.
DEF - Air comes out
of
the windshield outlets to defrost the
windshield.
Set the fan switch to
HI
and the temperature lever
to the far right for maximum defrosting.
Air
Conditioning
(AlC) ON-OFF
Button
- Turns air condition-
ing compressor
ON and
OFF.
When air conditioning is desired,
press this button
IN and set the
fan
switch to any position
except
OFF.
AlC
Indicator
Light-
This will light when the AlC button is ON.
In
the defrost (DEF) mode, the compressor will come
on
whether or not the AlC ON-OFF button is on. This helps to
reduce the moisture in the air going to the defroster outlets.
12. Vent
Port
Remote Heater
Mirror
Switch (left side
of
the instrument
housing) (optional)
Heater
Switch
- Turns heat ON and OFF at both mirrors.
Mirror
Switch
- Select right/left mirror and movement
of
mirror(s).
~
....
~
==
lit'
~
Q
C:
;l
Q
:ii
I
~
:::z:-
".,
:§
Q
-
::
~
~
....
lit
-1r
I.
