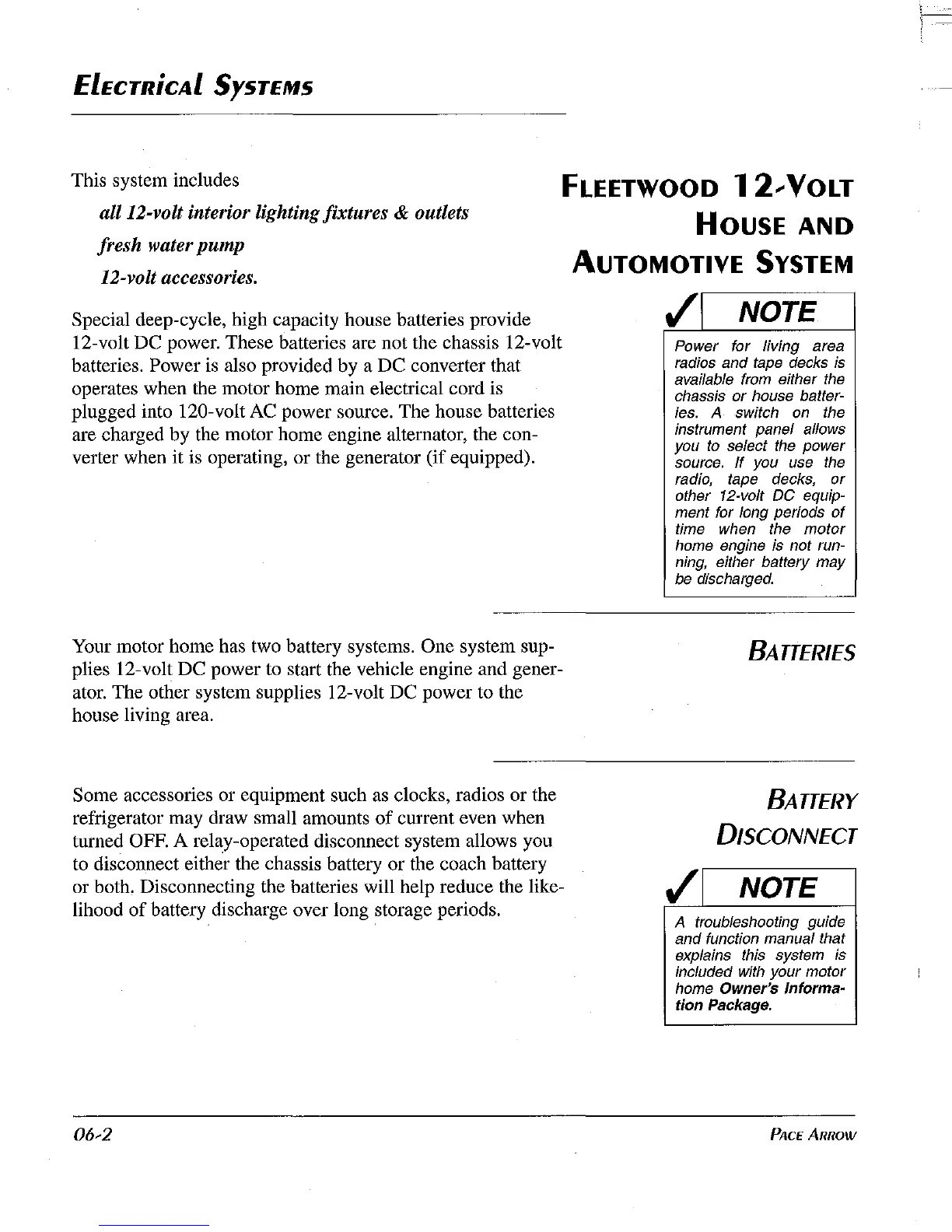

ELECTRicAL
SYSTEMS
This system includes
all 12-volt interior lighting fixtures & outlets
fresh water
pump
12-volt accessories.
FLEETWOOD
12
...
VOLT
HOUSE
AND
AUTOMOTIVE
SYSTEM
Special deep-cycle, high capacity house batteries provide
12-volt DC power. These batteries are not the chassis 12-volt
batteries.
Power is also provided by a DC converter that
operates when the motor home main electrical cord is
plugged into 120-volt
AC
power source. The house batteries
are charged by the motor home engine alternator, the
con-
verter when it is operating, or the generator (if equipped).
Your motor home has two battery systems.
One system sup-
plies 12-volt DC power to start the vehicle engine and gener-
ator. The other system supplies 12-volt DC power to the
house living area.
Some accessories or equipment such as clocks, radios or the
refrigerator may draw small amounts
of
current even when
turned
OFF. A relay-operated disconnect system allows you
to disconnect either the chassis battery or the coach battery
or both. Disconnecting the batteries will help reduce the
like-
lihood
of
battery discharge over long storage periods.
06,2
til
NOTE
Power for living area
radios and
tape
decks
is
available
from
either
the
chassis
or
house batter-
ies.
A switch
on
the
instrument panel allows
you
to
select
the
power
source.
If
you
use
the
radio, tape decks,
or
other 12-volt DC equip-
ment for long periods
of
time when the motor
home engine is not
run-
ning,
either battery may
be
discharged.
til
BATTERIES
BATTERY
DISCONNECT
NOTE
A troubleshooting guide
and function manual that
explains this system is
included with your motor
home
Owner's Informa-
tIon Package.
PACE
ARROW
L
