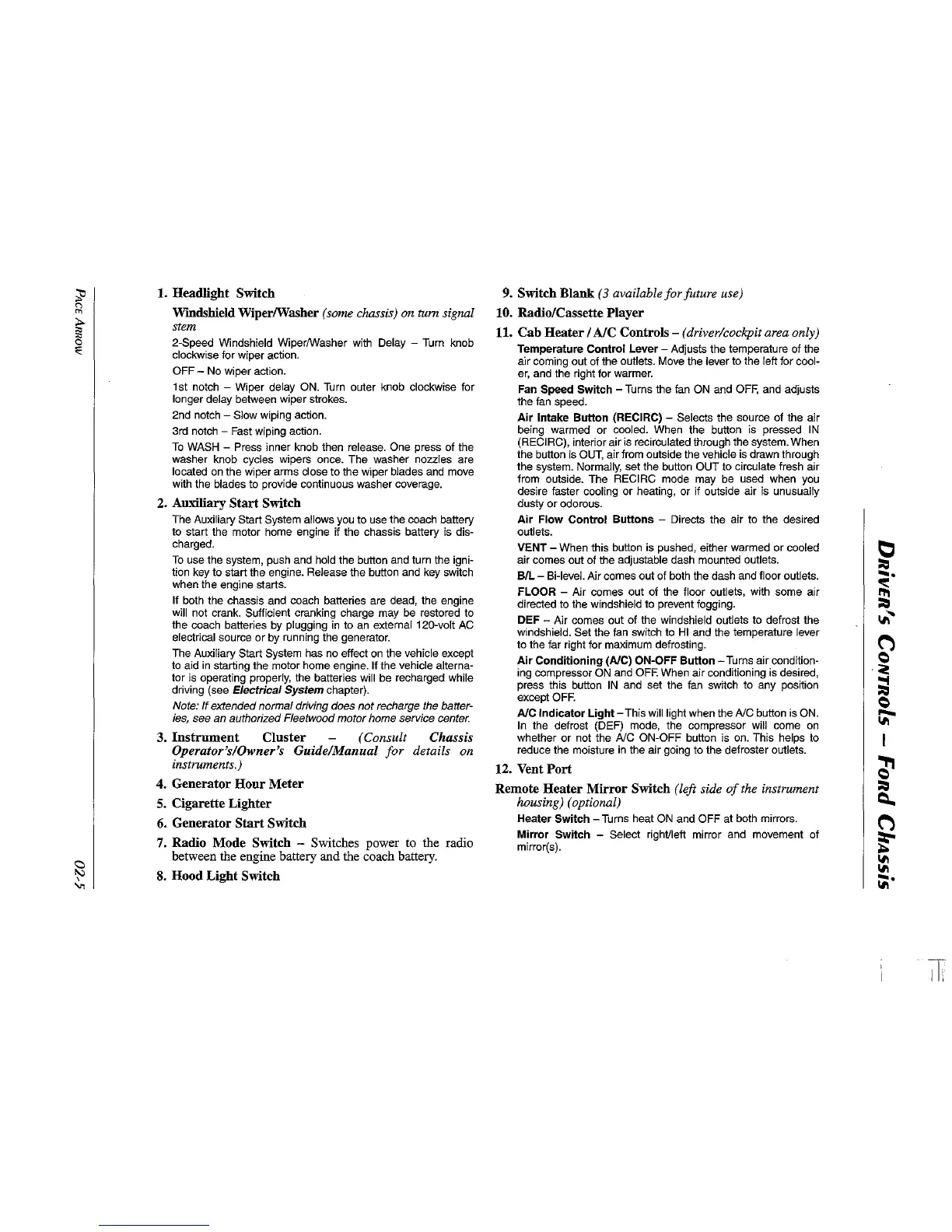

1.
Headlight Switch
Wmdshield WiperlWasher
(some chassis) on turn signal
stem
2-Speed Windshield WiperiWasher with Delay - Turn knob
clockwise
for
wiper
action.
OFF - No wiper action.
1st notch - Wiper delay
ON.
Turn
outer knob clockwise for
longer delay between wiper strokes.
2nd notch -
Slow wiping action.
3rd notch - Fast wiping action.
To
WASH
- Press inner knob then release. One press of the
washer knob cycles wipers once. The washer nozzles are
located
on
the wiper arms close to the wiper blades
and
move
with the blades to provide continuous washer coverage.
2. Auxiliary
Start
Switch
The Auxiliary Start System allows you to use the coach battery
to start the motor home engine if the chassis battery is
dis-
charged.
To
use the system, push and hold the button and turn the igni-
tion key to start the engine. Release the button and key switch
when the engine starts.
If both the chassis and coach batteries are dead, the engine
will not crank. Sufficient cranking charge may be restored to
the coach batteries by plugging
in
to
an
external 120-volt
AC
electrical source or
by
running the generator.
The Auxiliary
Start System has no effect
on
the vehicle except
to aid
in
starting the motor home engine. If the vehicle alterna-
tor is operating properly, the batteries will be recharged while
driving (see
Electrical System chapter).
Note:
If
extended normal driving does
not
recharge the batter-
ies,
see
an
authorized
Fleetwood
motor
home
service
center.
3.
Instrument
Cluster (Consult Chassis
Operator's/Owner's
Guide/Manual
for
details on
instruments.)
4. Generator
Hour
Meter
5.
Cigarette Lighter
6. Generator
Start
Switch
7. Radio Mode Switch - Switches power
to
the radio
between
the
engine battery and
the
coach battery.
8.
Hood Light Switch
9. Switch Blank
(3
available for future use)
10. Radio/Cassette Player
11. Cab Heater /
AlC
Controls - (driver !cockpit area only)
Temperature Control
lever
- Adjusts the temperature of the
air coming out of the outlets. Move the lever to the left for
cool-
er,
and the right for warmer.
Fan
Speed Switch - Turns the fan
ON
and
OFF,
and adjusts
the fan speed.
Air
Intake
Button
(RECIRC) - Selects the source of the air
being warmed or cooled. When the button is pressed
IN
(RECIRC), interior air is recirculated through the system. When
the button is
OUT,
air from outside the vehicle is drawn through
the system.
Normally, set the button OUT to circulate fresh air
from outside. The
RECIRC mode may be used when you
desire faster
cooling
or
heating, or if outside air is unusually
dusty
or
odorous.
Air
Flow
Control
Buttons
- Directs the air to the desired
outlets.
VENT - When this button is pushed, either warmed or cooled
air comes out of the adjustable dash mounted outlets.
B/l
- Bi-Ievel. Air comes out of both the dash and floor outlets.
FLOOR - Air comes out of the floor outlets, with some air
directed to the windshield to prevent fogging.
DEF - Air comes out of the windshield outlets to defrost the
windshield.
Set the fan switch to
HI
and the temperature lever
to the far right for maximum defrosting.
Air
Conditioning
(AlC) ON-OFF
Button
- Turns air condition-
ing compressor
ON
and
OFF.
When air conditioning is desired,
press this button
IN
and set the fan switch to any position
except
OFF.
AlC
Indicator
light
- This will light when the AlC button is ON.
In
the defrost (DEF) mode, the compressor will come
on
whether or not the AlC ON-OFF button is
on.
This helps to
reduce the moisture
in
the air going to the defroster outlets.
12. Vent Port
Remote Heater
Mirror
Switch (left side
of
the instrument
housing) (optional)
Heater Switch - Turns heat
ON
and OFF at both mirrors.
Mirror
Switch - Select righVleft rnirror and movement of
mirror(s).
~
==
....
~
