TRINOXFLEX BME 18.0-EC + LK 152 / + BR 50 / + BF 140 / + BS 50
32
Batteries
26 Li-ion battery (2.5 Ah or 5.0 Ah)
27 Battery release button
28 State of charge indicator
Pipe belt sanding attachment BR 50
29 Clamping lever for quick-release cou-
pling
30 Protective cover
31 Drive roller with thrust rings
32 Allen key
33 Relay roller with thrust rings
34 Handle
35 Swing arm
Spring-loaded for tensioning the sand-
ing belt.
*)
Not shown
Instructions for use
WARNING!
Remove the battery before carrying out any
work on the power tool.
Before initial operation
Unpack the drive unit and attachments, and
check that no parts are missing or were
damaged during transport.
NOTE
The batteries are not fully charged on
delivery. Prior to initial operation, charge the
batteries fully. Refer to the charger oper
-
ating manual.

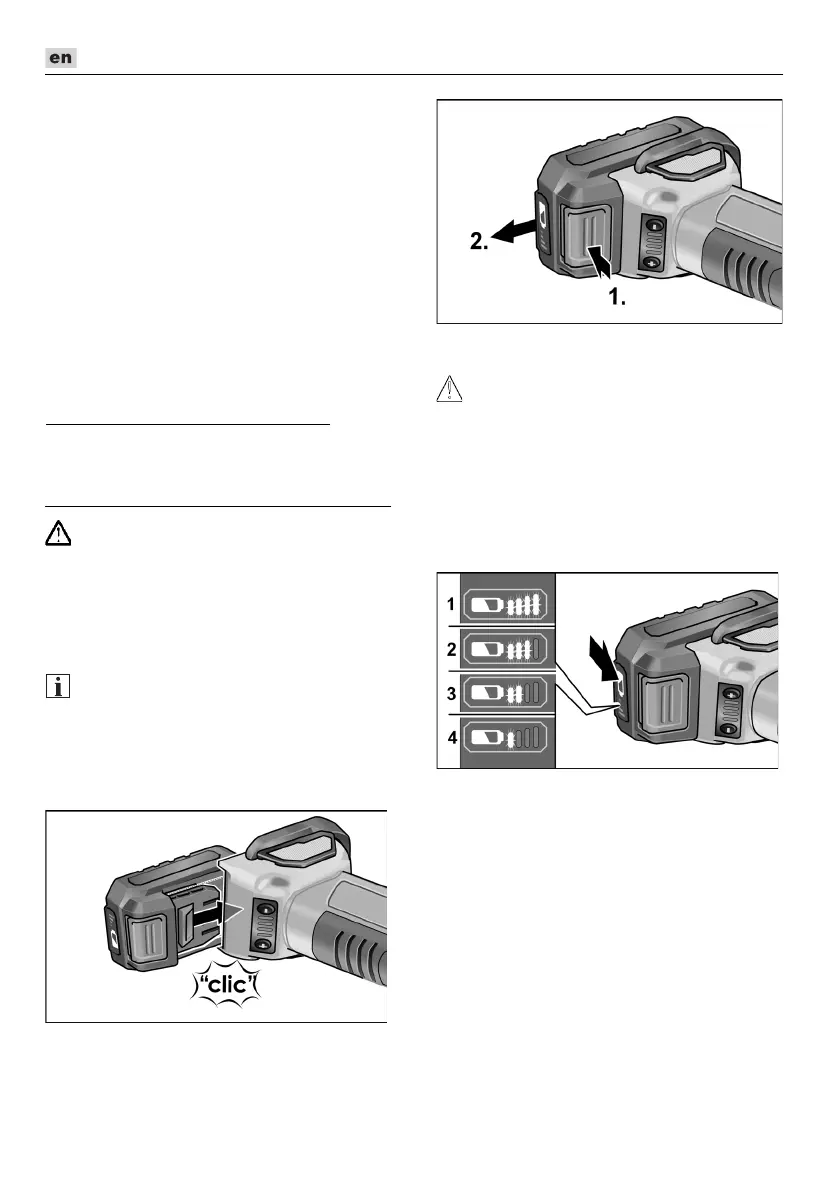

Inserting/replacing the battery
Press the charged battery into the power
tool until it clicks into place.
To remove, press the release button (1.)
and pull out the battery (2.).
CAUTION!
When the device is not in use, protect the
battery contacts. Loose metal parts may
short-circuit the contacts; explosion and fire
hazard!
Battery state of charge
Press the button to check the state of
charge on the state of charge indicator
LEDs.
The indicator goes out after 5 seconds.
If one of the LEDs flashes, the battery must
be recharged. If none of the LEDs light up
after the button is pressed, the battery is
faulty and must be replaced.
