Modbus Server Supplement to User Manual - ENGLISH
84 SU_ModbusV2-8, 2015-03-02
Deleting CRT Entries in the Table
• Click the button Clear Table (see Fig. B.4) if all CRT entries in the table are to be deleted. A warning is displayed (see
Fig. B.5).
• Click Yes if all CRT entries in the table are to be deleted. The CRT entries in the transmitter are not deleted.
Storing and Transmission
• Click the button Save CRT (see Fig. B.4) if the CRT entries entered in the table and the comment entered in the text field
are to be stored in a configuration file (*.txt).
• Click the button Print Table if the CRT entries entered in the table and the comment entered in the text field are to be
printed out.
• Click the button Write Register if the CRT entries displayed in the table are to be transmitted to the transmitter.
Every time the CRT entries are stored or written, they are checked. If the CRT entries are incorrect or a contradiction is
noticed, a warning is displayed (see Fig. B.6):
• Check the CRT entries. Activate the Expert mode to check the word order. For the activation of the Expert mode see
section B.4.
• Click Yes if the CRT entries are to be stored. A warning is displayed (see Fig. B.7).
• Click Yes if the CRT entries are to be stored. The CRT entries stored in the transmitter are overwritten.

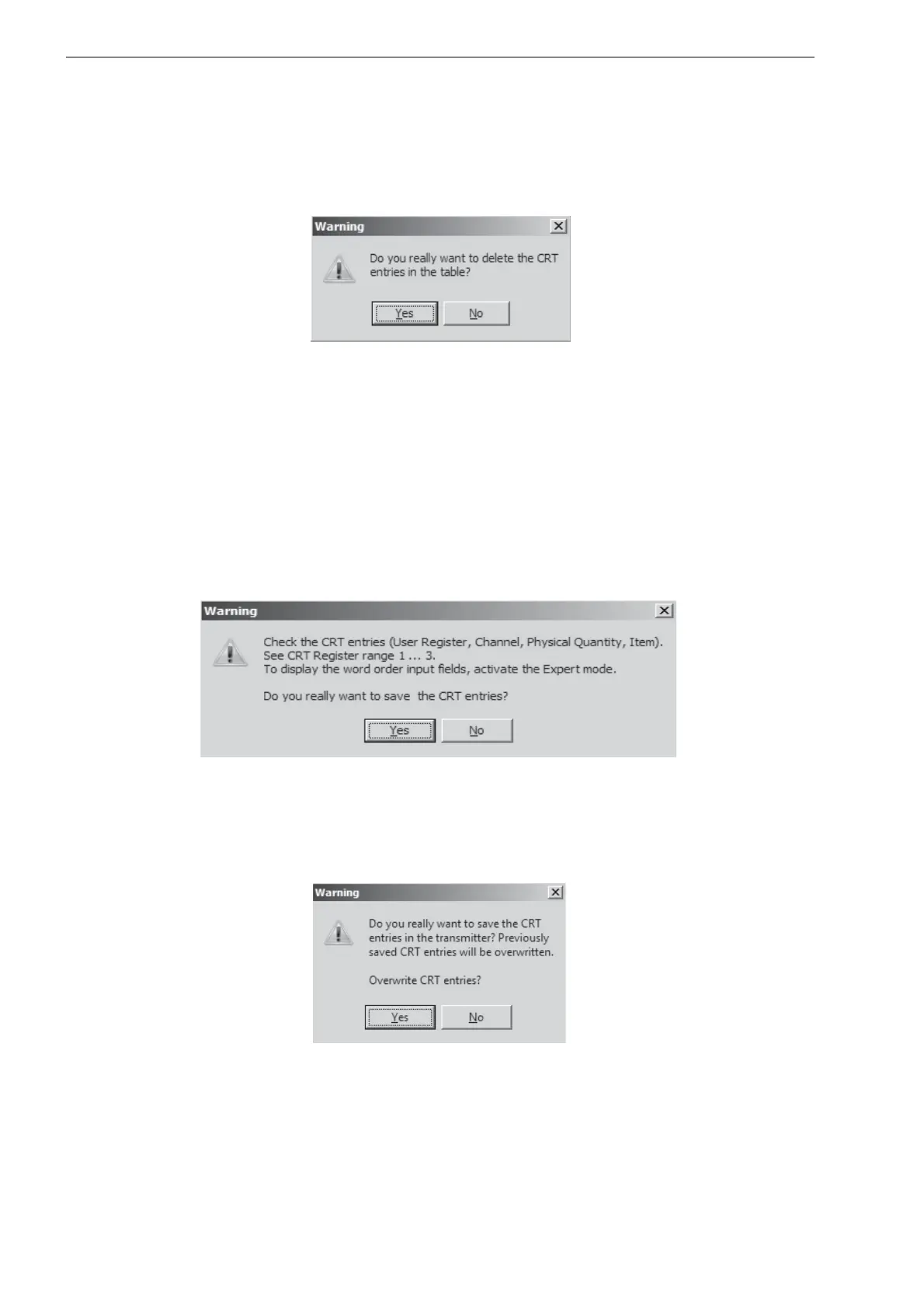

Fig. B.5: Warning (delete CRT entries)
Fig. B.6: Warning (store CRT entries)
Fig. B.7: Warning (store CRT entries)
