FLUXUS F70x 6 Installation
38 UMFLUXUS_F7V4-6-2EN, 2017-10-01
• Repeat the steps for fixing the second rail (see Fig. 6.33).
Installation of the transducers in Variofix L
• Press the transducers firmly on the transducer clamping fixture in the covers until the transducers are firmly fixed (one
transducer in each cover). The transducer cables show in opposite directions (see Fig. 6.34).
• Adjust the transducer distance displayed by the transmitter (see section 9.5 and Fig. 6.35).
• Fix the cables of the transducers with the strain relief clamp to protect them from mechanical strain (see Fig. 6.35).
• Put coupling foil (or some coupling compound for a short-term installation) on the contact surface of the transducers. The
coupling foil can be fixed to the contact surface of the transducer with a small amount of the coupling compound.

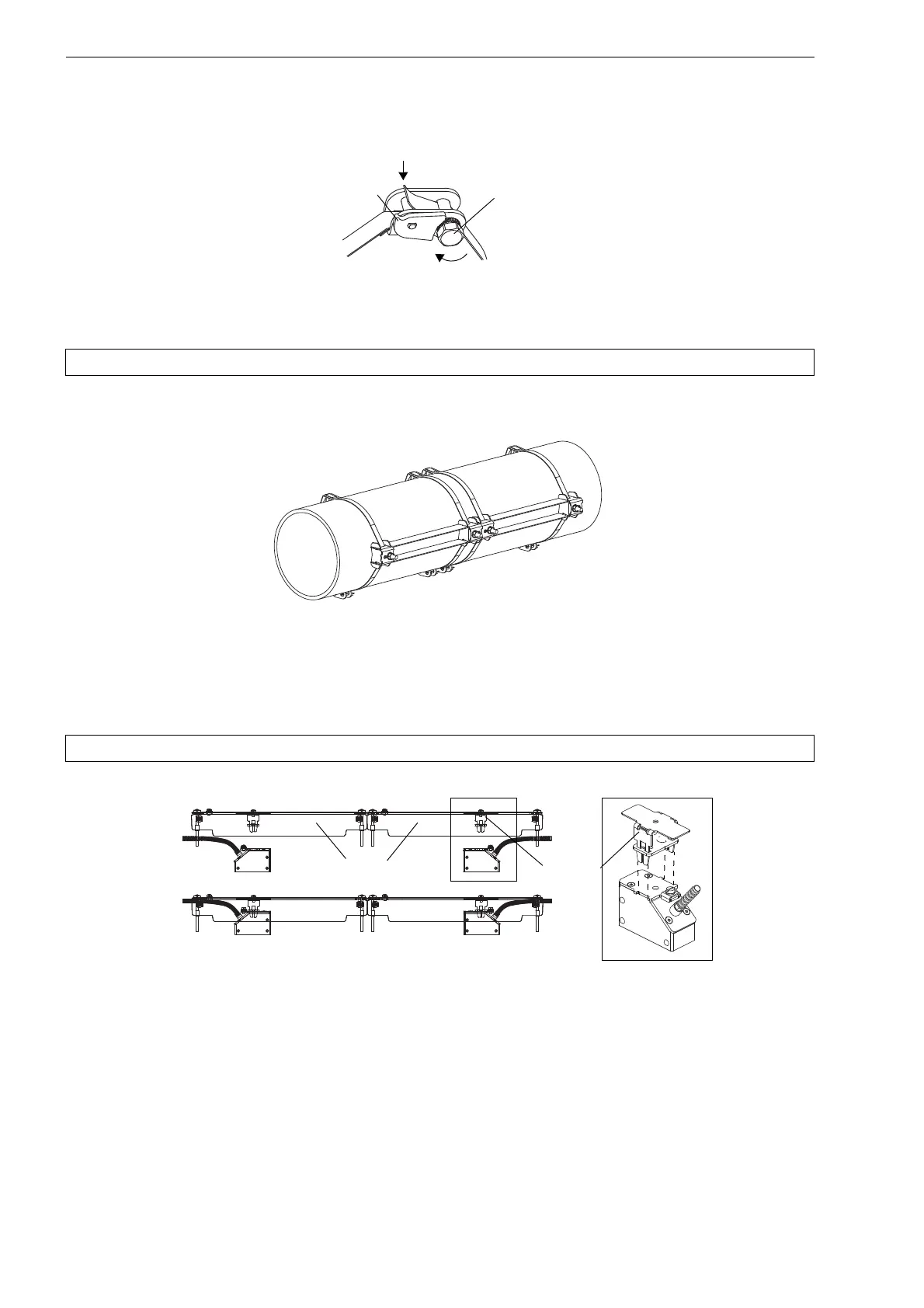

Fig. 6.32: Ratchet clasp with tension strap
Note! To release the screw and the tension strap, press the lever down (see Fig. 6.32).
Fig. 6.33: Pipe with two rails
Note! The arrows on the transducers and the cover have to point in the same direction.
Fig. 6.34: Transducers in the cover
lever
sense of rotation
cut
screw of the clasp
cover
(1)
(2)
transducer
clamping
fixture
