Aircraft Type: CTSW
FLIGHT DESIGN
Aircraft Operating Instructions
Page: 3-7
AU 010 01000
Rev. No: 7
Original Issue Date: 28-Feb-2005
Revision Date: 29-Apr-2008

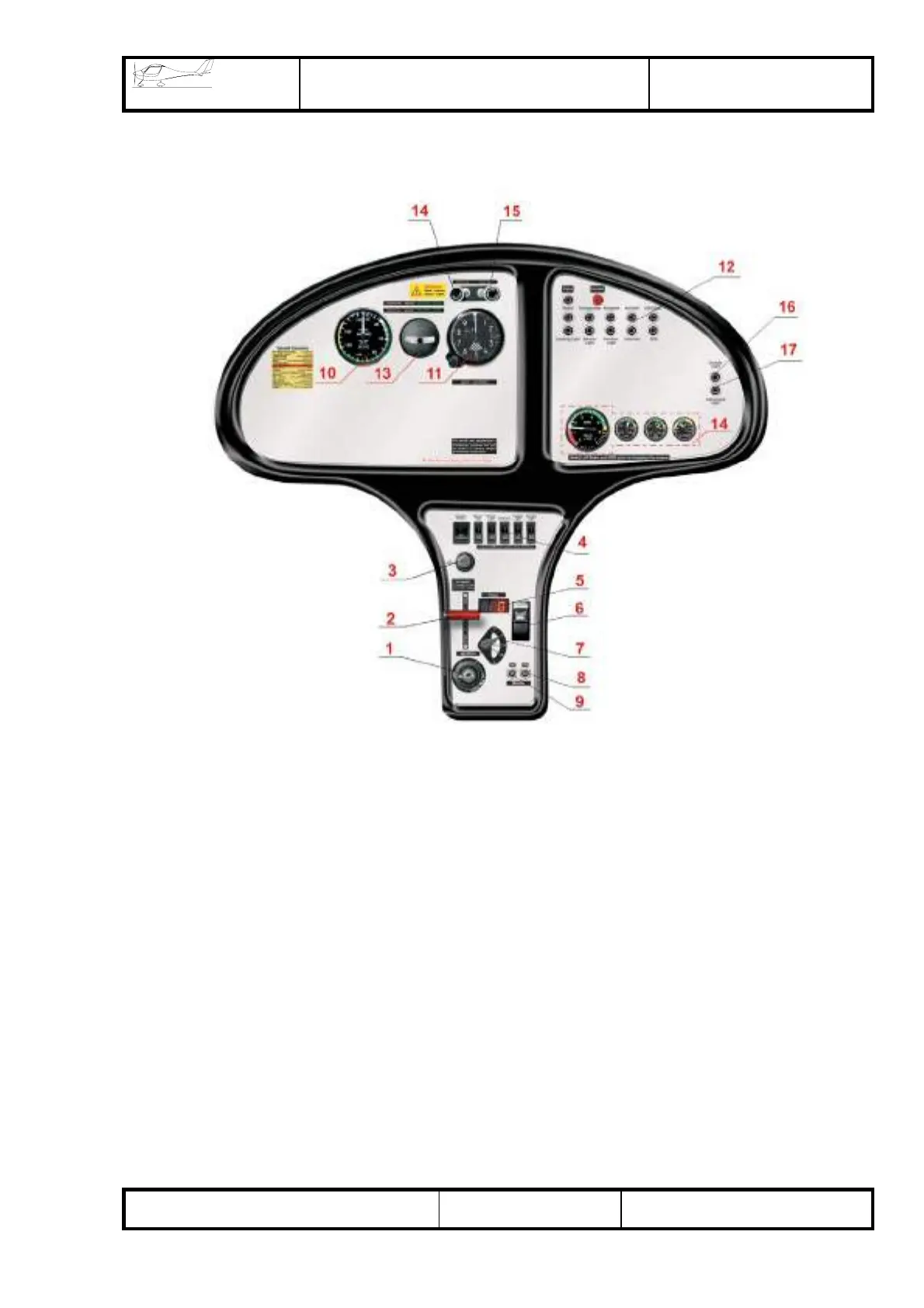

CTSW Classic Light Standard Instrument Panel*
Symbolic notations
1 Ignition lock / start
2 Fuel valve
3 12V outlet
4 Switch panel
5 Flap position indicator
6 Flap circuit breaker
7 Flap switch
8 Main circuit breaker 30A
9 Main circuit breaker 25A
10 Air speed indicator
11 Three pointer altimeter
12 Circuit breakers
13 Slip & bank indicator
14 Cabin heating
15 Carburettor heating
16 Cockpit light
17 Instrument light
* - instrument panels can be chosen from the list (please see Appendix 2) with accordance to the list
of the instruments from the Customer Order
