FLIGHT DESIGN CTSW - No Intentional Spins Placard

Aircraft Type: CTSW
FLIGHT DESIGN
Aircraft Operating Instructions
Page: 10-2
AU 010 01000
Rev. No: 7
Original Issue Date: 28-Feb-2005
Revision Date: 29-Apr-2008

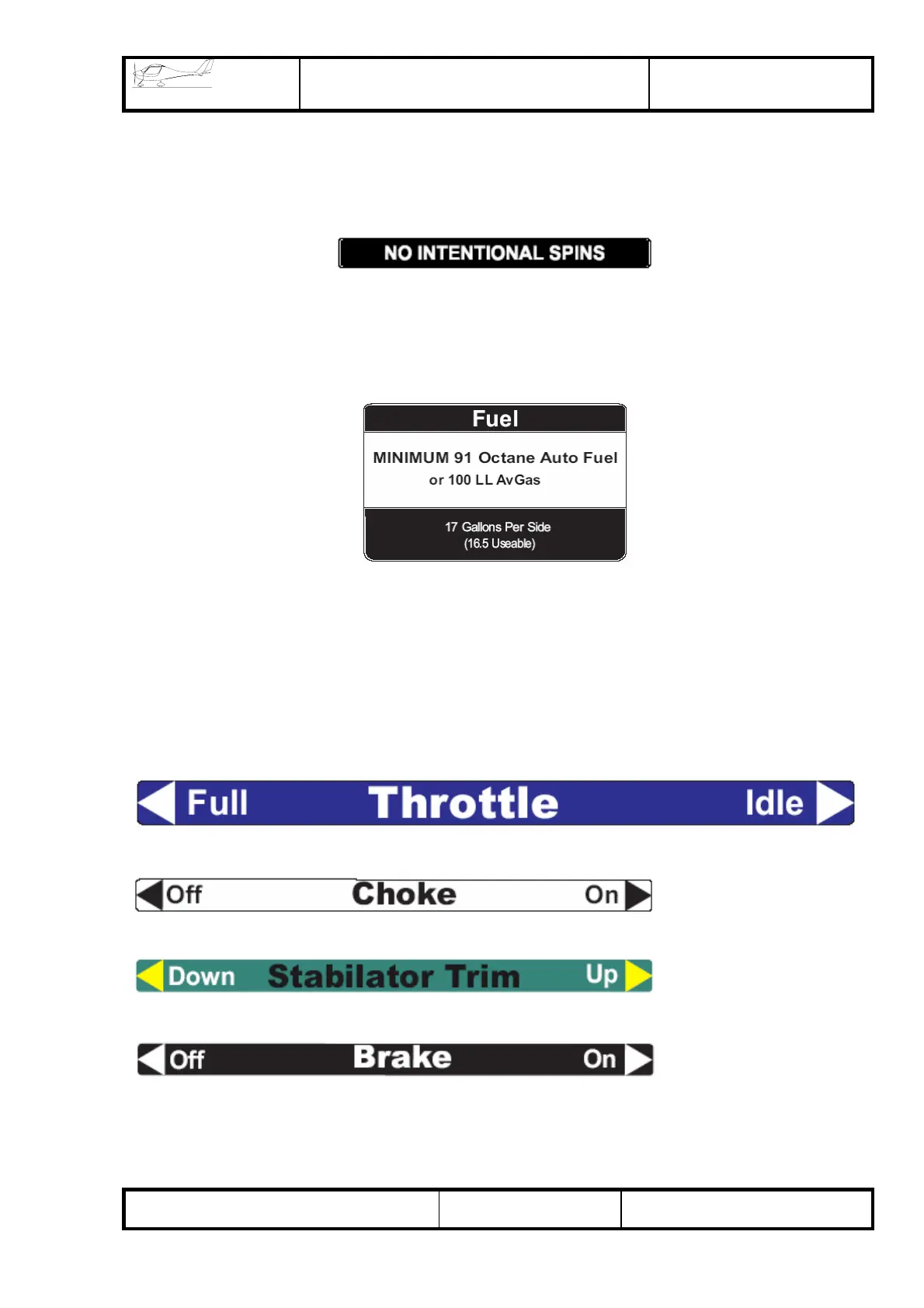

10.4 “NO INTENTIONAL SPINS”
The placard “NO INTENTIONAL SPINS” is placed close to the airspeed indicator.
10.5 Miscellaneous placards and markings
Type of Fuel 2 x beside filling cap
Red marking 5800 RPM Tachometer
Red marking 5 bar oil pressure gauge
Red marking 130ºC oil temperature gauge
Red marking 120ºC water temp gauge (cylinder head)
Oil pressure gauge max 102 psi 7 bar
min 12 psi 0,8 bar
Throttle lever box
Choke lever box
Stabilator Trim lever box
Brakes lever box
Flaps -6° (-12°), 0°, 15°, 30°, 40° flap indicator
