FLIGHT DESIGN CTSW - Page 7

Aircraft Type: CTSW
FLIGHT DESIGN
Aircraft Operating Instructions
Page: 2-3
AU 010 01000
Rev. No: 7
Original Issue Date: 28-Feb-2005
Revision Date: 29-Apr-2008

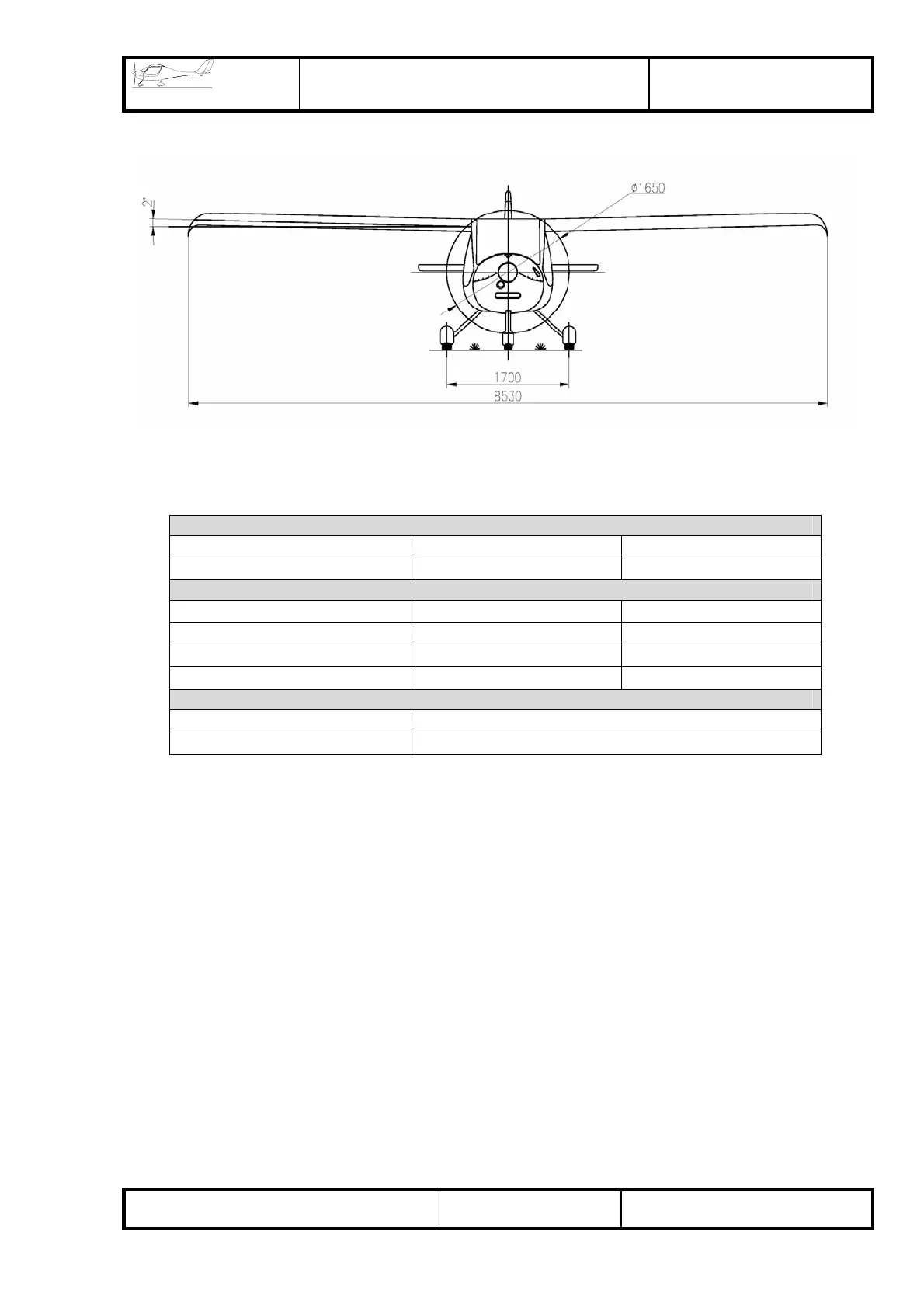

Geometrical parameters
Geometry, mm / inch
Max. length 6214 244.6
Max. height 2165 85.3
Areas, m
2
/ ft
2
Wing 9.98 107.4
Stabilator 1.65 17.75
Vertical tail 1.32 14.20
Wing span, m / inch 8.53 335.8
Aspect ratios
Wing 7,29
Stabilator 3,40
