Flight Systems Xtender - Wiring Instructions; 93-M1007

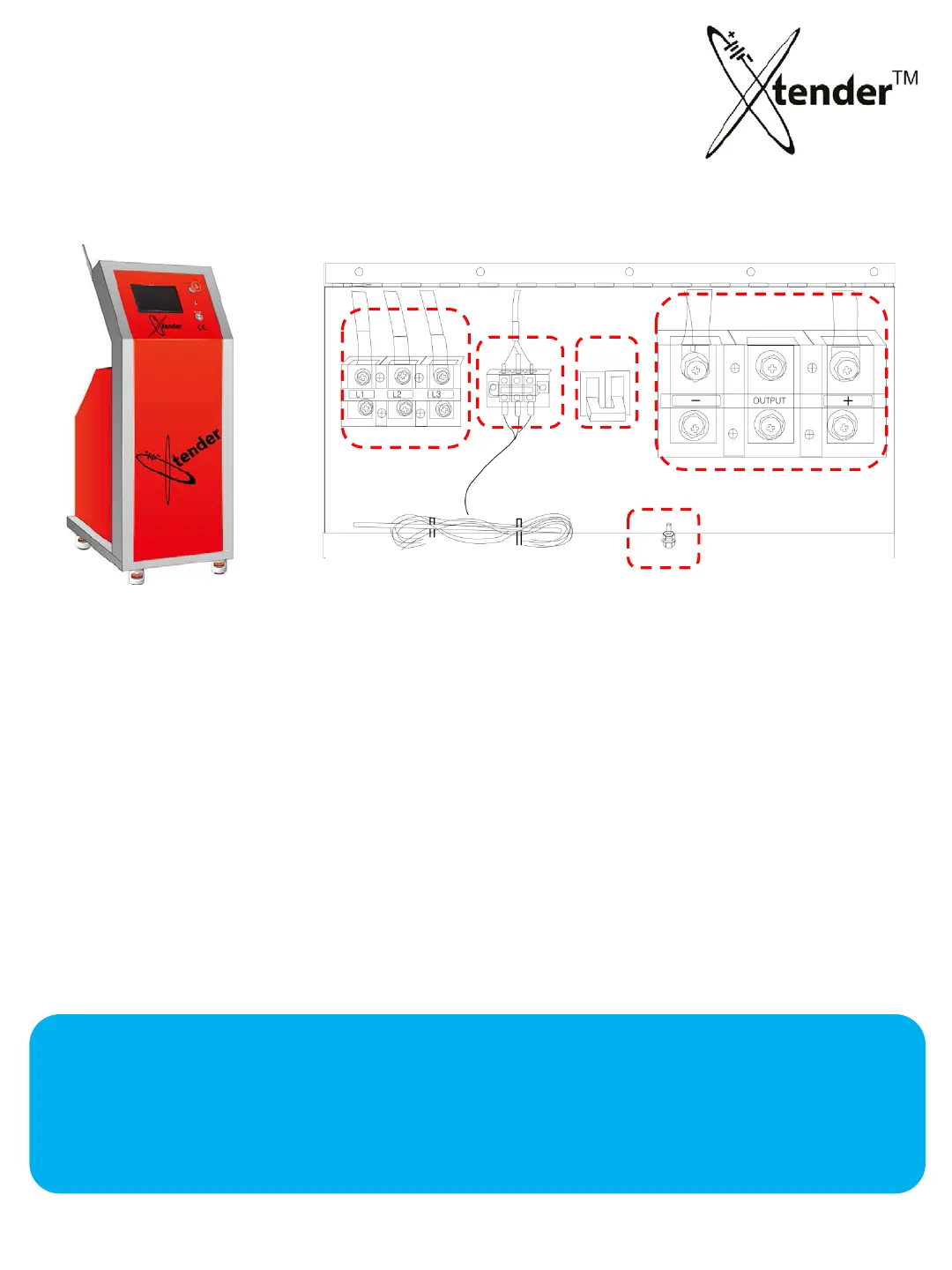

 Wiring Instructions
 When connecting cables to the backside of Xtender, be sure to
c
onnect to the suitable position.
 When connecting cables to OUTPUT, be cautious not to
confuse
polarity (+) & (-).
 93-M1007
1
2
TEMP.SENSOR :
Connect Temp. Sensor with Model PC-100 provided
3
CIRCUIT BREAKER :
Protection Device: It will automatically cut electricity off during the excessive current or a
power failure. CIRCUIT BREAKER REQUIRED FOR THIS MODEL IS 80 AMPS.
4
OUTPUT :
Battery has polarity of (+) & (-). Be sure that they are connected correctly.
5
INPUT :
Electricity power / AC 3 Phases 220V 60Hz / L1 (red), L2 (yellow) , L3 (blue) 3 Wires
GROUND :
Xtender to Earth Ground
1
2
3
4
5
23
