Flight Systems Xtender - Wiring Instructions; 93-M1009: Cable Connection

 When connecting cables to the backside of Xtender, be sure to
c
onnect with the suitable position.
 When connecting cables to OUTPUT, be cautious not to confuse
polar
ity (+) & (-).

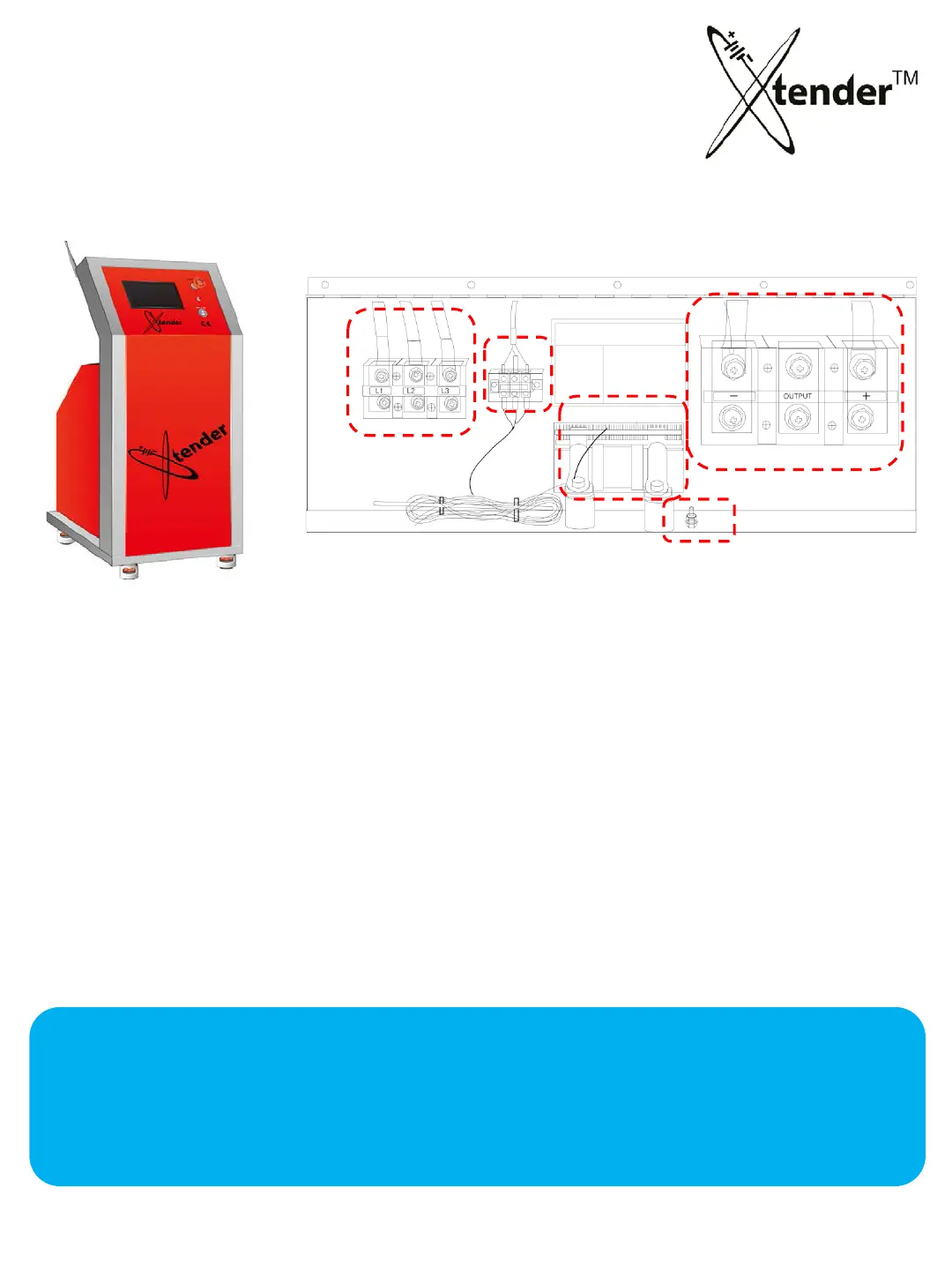

 93-M1009 : Cable Connection
1
2
TEMP.SENSOR :
Connect Temp. Sensor with Model PC-100 provided
3
Fuse :
Xtender Protection Device: It will automatically cut electricity off when excessive ampere
or power blackout.
4
OUTPUT :
Battery has polarity of (+) & (-). Be sure that they are connected correctly.
5
INPUT :
Xtender Electricity / AC 3 Phases 220V or 400V / 50Hz or 60Hz / L1, L2 ,L3 3Wires
GROUND :
Xtender to Earth Ground
1
2
3
4
5
 Wiring Instructions
24
