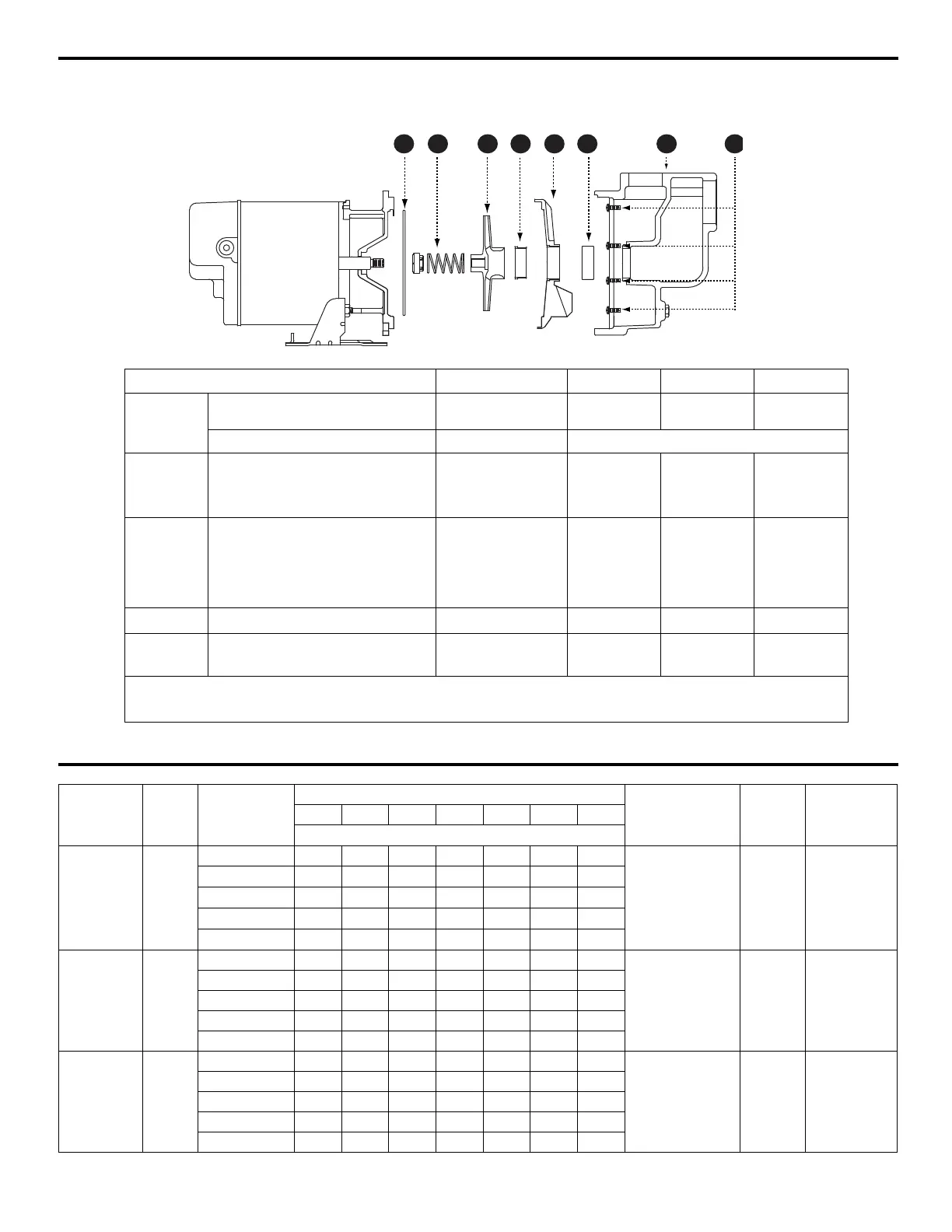

REPLACEMENT PARTS LIST
G HE DCBA F
Motor
Assembly
To order parts, call 1-800-742-5044
HP 1 1-1/2 2
ITEM
SINGLE PHASE MODEL NO. SP10P1 SP15P1 SP20P1
DESCRIPTION PART NO.
A
B
Ring, Square Cut
Seal, Rotary and Ceramic (with
Spring)
132429
131100
1
1
1
1
1
1
C
D
E
F
Impeller
Diffuser
Diffuser Insert
Rubber Diffuser
132425
134240
132428
023211
1
1
1
134138
1
1
1
134138
1
1
1
G Pump Body 023115 1 1 1
H*
Hex Hd. Cap Screws 3/8 in. x
3/4 in.
* 4 4 4
(*) Standard hardware item
NOTE: Motor assembly not available as a replacement part.
PRODUCT SPECIFICATIONS
Model # HP
Suction Lift
(Ft.)
Discharge Pressure (PSI)
Shut Off
Pressure
@ 0 Lift (PSI)
Suction
Pipe
Discharge
Pipe
15 20 25 30 35 40 45
Capacity - U.S. Gallons per Minute
SP10P1
EL10P1
1
5
65 61 53 44 32
39 2 in. 1-1/2 in.
10
64 58 49 39 24
15
62 55 45 34
20
59 51 41 28
25
56 46 36 2
SP15P1
EL15P1
1-1/2
5 66 63 59 54 48 40 8
45 2 in. 1-1/2 in.
10 64 61 57 52 45 28
15 63 60 55 49 41 15
20 62 58 53 46 32
25 60 56 50 42 21
SP20P1
EL20P1
2
5 70 68 65 62 56 46 24
48 2 in. 1-1/2 in.
10 69 66 63 60 52 39 6
15 68 65 62 57 47 27
20 67 64 60 53 41 13
25 65 62 58 48 30
Max. Case Pressure: 100 PSI
