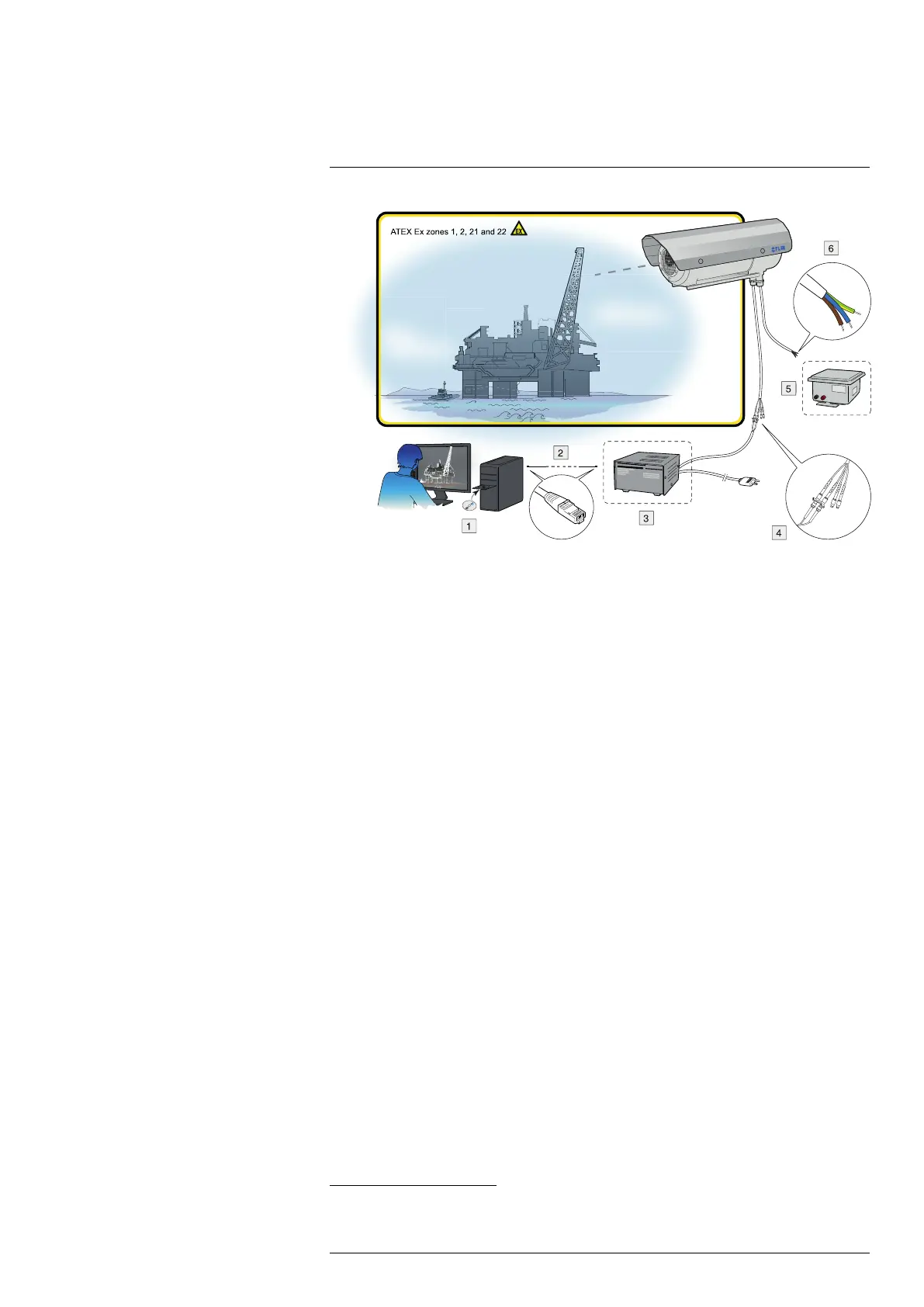

Typical system overview
6
1. Thermovision System Tools & Utilities CD-ROM.
2. Ethernet cable.
1
3. Optical-to-Ethernet converter.
1
4. FC connectors from the camera housing (including two spares).
5. 24 V DC power supply.
1
6. Pigtail cable from housing. The color coding of the pigtail cable is:
• Brown: positive +.
• Blue: negative –.
• Green/yellow: earth.
#T559891; r.18204/18204; en-US
6
1. Not supplied with the camera unit.
