Thermographic measurement techniques13
13.2.1.1.1 Method 1: Direct method
Follow this procedure:

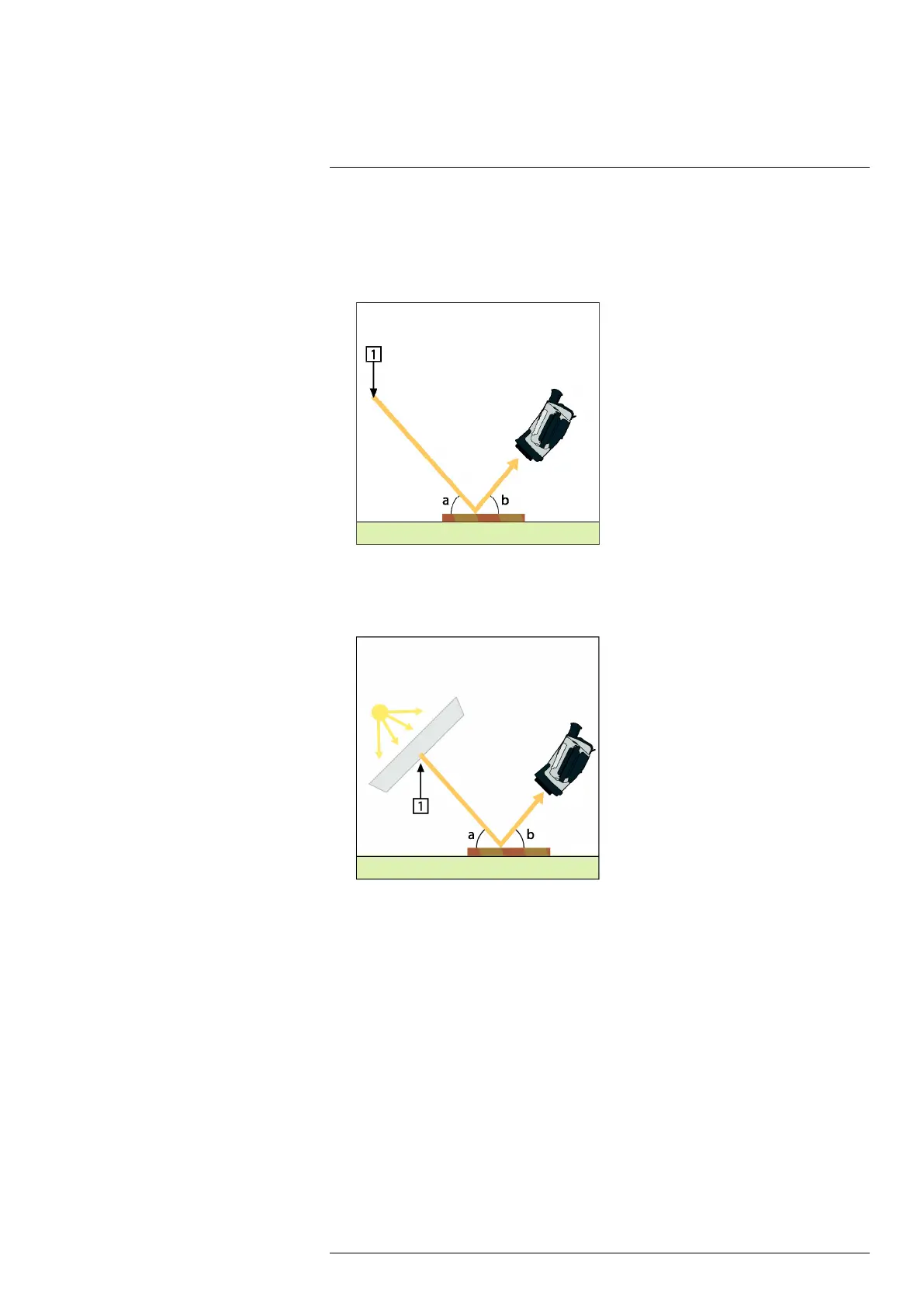

1. Look for possible reflection sources, considering that the incident angle = reflection
angle (a = b).
Figure 13.1 1 = Reflection source
2. If the reflection source is a spot source, modify the source by obstructing it using a
piece if cardboard.
Figure 13.2 1 = Reflection source
#T559891; r.18204/18204; en-US
37
