4 – Installation
A6000 and A8500 Series User’s Manual 14

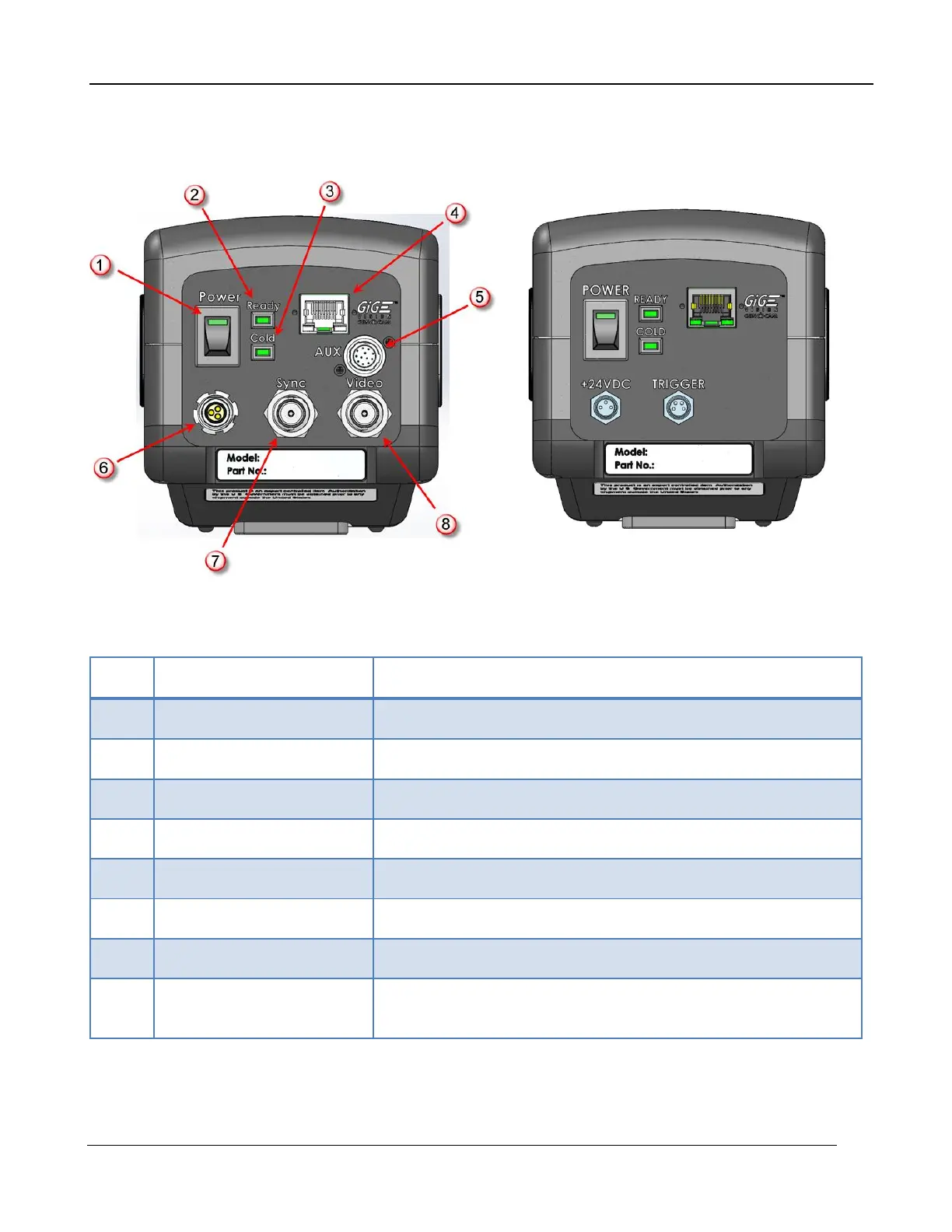

All connections to the A6000-series are located on the Back Panel.
A67xx A6705
Item
Name
Description
1
Power Switch
LED will light when power is ON
2
Ready Light
LED will turn on when camera is booted
3
Cold LED
LED will light when FPA temp is <80K (<30.5C for A6260)
4
Gigabit Ethernet (RJ45)
GigE Vision connection for digital IR image data
5
AUX Connector
A626x/A675x/A678x only. (See Section 6.5.4 for details)
6
DC Power Input
24VDC
7
Sync Input
External Frame Sync
8
Video Out
HD-SDI (480i, 576i, 720p at 50/59.9Hz, 1080p at 25/29.9Hz
according to SMPTE 296M). [N/A to A6705]
