4 Installation

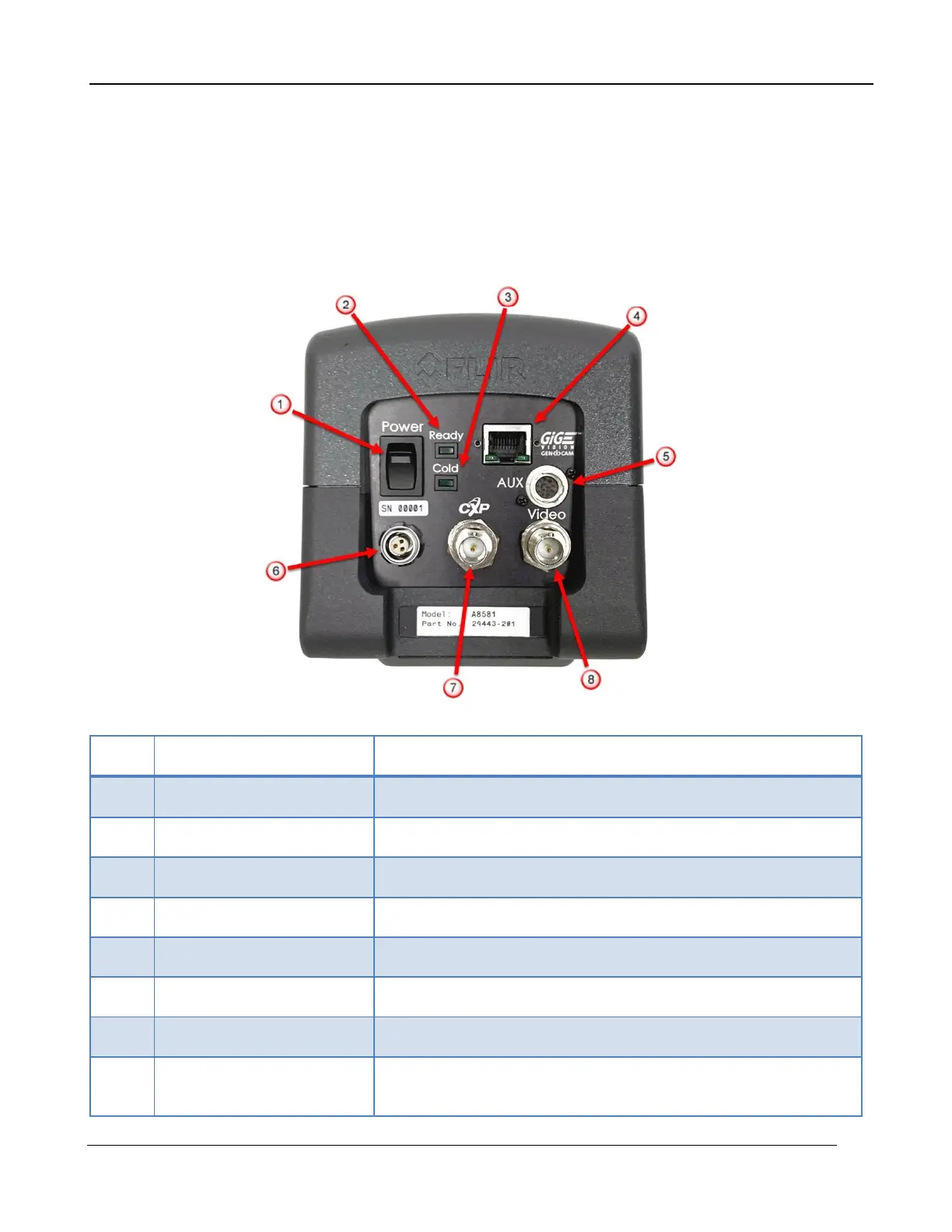

4.1 Basic Connections
All connections to the A858x are located on the Back Panel.
Item
Name
Description
1
Power Switch
LED will light when power is ON
2
Ready Light
LED will turn on when camera is booted
3
Cold LED
LED will light when FPA temp is <80K
4
Gigabit Ethernet (RJ45)
GigE Vision connection for digital IR image data
5
AUX Connector
See Section 6.5.4 for details
6
DC Power Input
24VDC
7
CoaXpress output
Single Link, CXP-3
8
Video Out
HD-SDI (480i, 576i, 720p at 50/59.9Hz, 1080p at 25/29.9Hz
according to SMPTE 296M)
