3,49
88,6
mm
2,17
55,2
mm
1,59
40,5
mm
0,43
11
mm
Tripod UNC 1/4'' - 20
IR Optical axis
Visual Optical axis
1,39
35,4
mm
1 2 3 4 5 6 7 8 9 10
1 632 54
A
B
C
D
E
F
G
H
F
C
E
G
D
A
B
Scale
1:1
C
Rev
Modified
R&D Instruments
AKZE

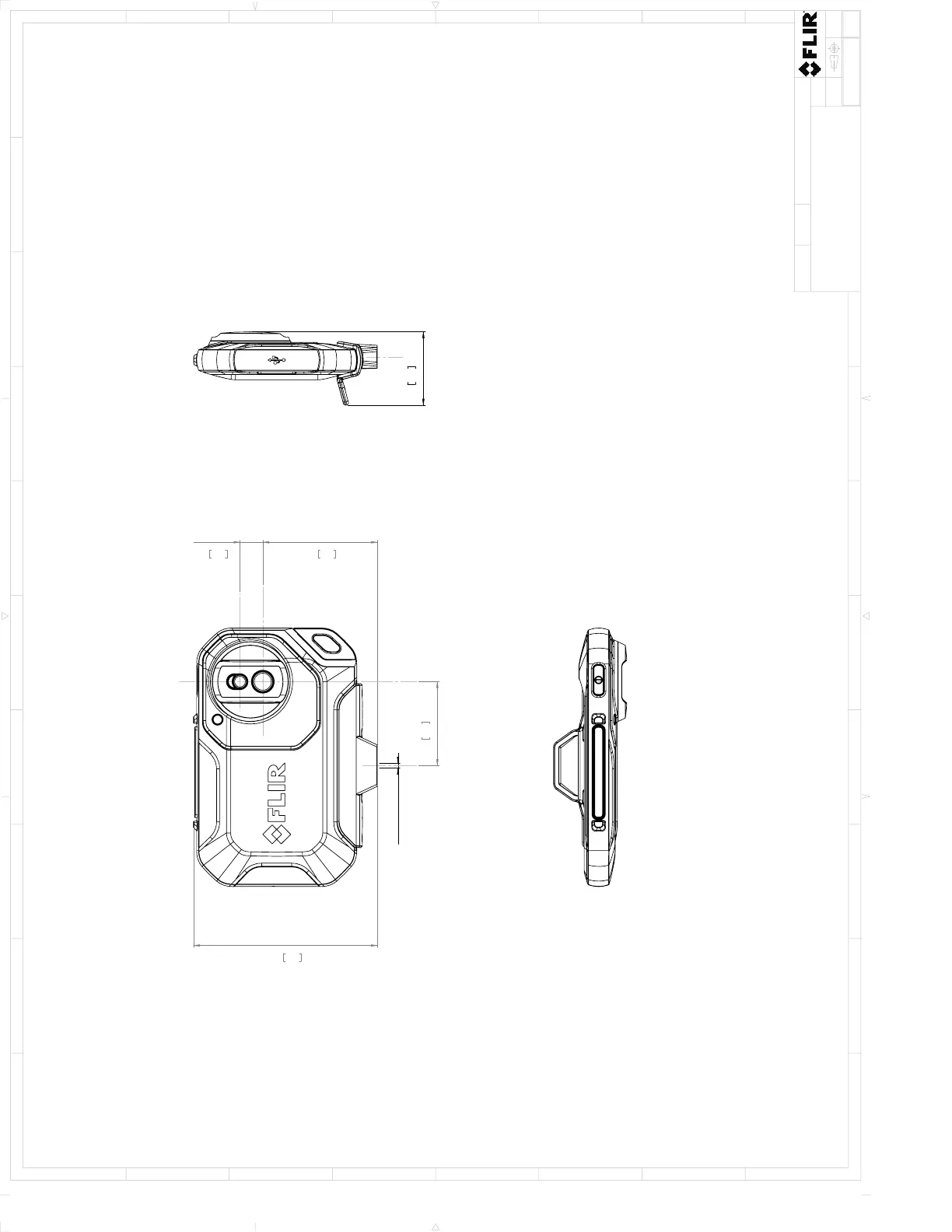

Basic Dimensions Flir Cx
T128439
2(2)
A2
Denomination
Drawn by
Check
Size
Drawing No.
Sheet
7
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
2017-02-17
