FLIR E60 Operating Procedure

E. Description of Screen elements
F. Changing the camera settings
□ Measuring the hottest/coldest temperature within an area
 This displays a moving spot meter that indicates the hottest temperature.
 The spot meter can be activated by following these steps:
1. Push the centre of the navigation pad. This displays a toolbar.
2. On the toolbar, select Measurement.
3. On the toolbar, select Hot spot for hottest temperature and select Cold spot for coldest
temperature.
□ Changing image mode
 The camera can operate in five different image modes:
1. Thermal MSX (Multi Spectral Dynamic Imaging): The camera displays an infrared image
where the edges of the objects are enhanced.
2. Thermal: The camera displays a fully thermal image.

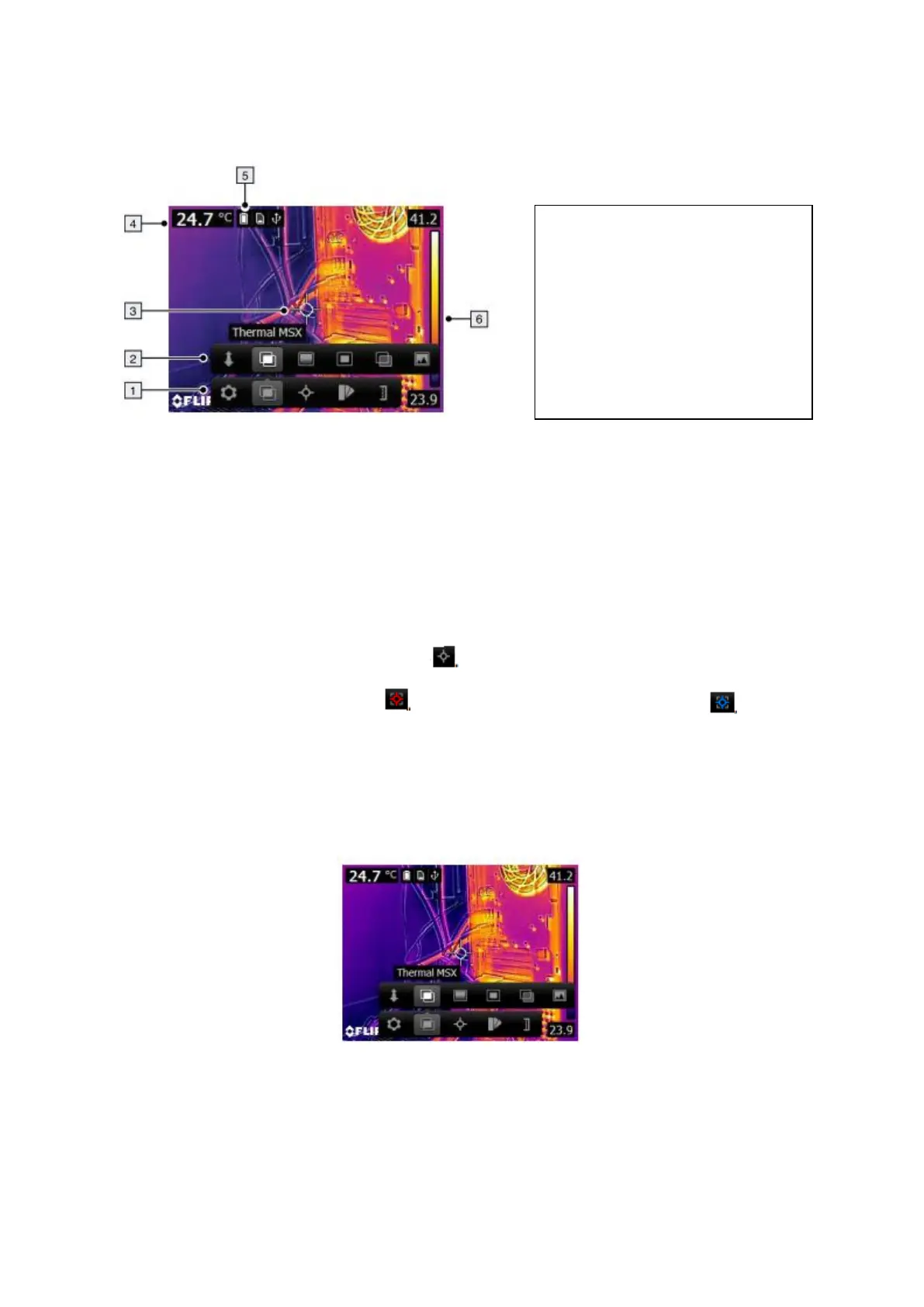

1. Main menu toolbar.
2. Submenu toolbar.
3. Spot meter.
4. Temperature of the spot.
5. Status icons for battery.
6. Temperature scale.

FLIR E60 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	<0.05°C at 30°C
Field of View	25° x 19°
Battery Life	4 hours
Spatial Resolution	1.36 mrad
Image Frequency	60 Hz
MeterLink	Yes
Laser Pointer	Yes
Text Annotation	Yes
Storage Media	SD card
Spectral Range	7.5 – 13 µm
Temperature Range	-20°C to +650°C
Display	3.5" LCD touchscreen
Focus	Manual
Accuracy	±2°C or ±2% of reading
Image Modes	Thermal, visual, MSX
Voice Annotation	Yes
Battery Type	Li-Ion battery
Minimum Focus Distance	0.4 m
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Connectivity	Wi-Fi, USB
Image Storage	JPEG
