Handling the camera

7.1.4 Charging the battery using a USB cable connected to a computer

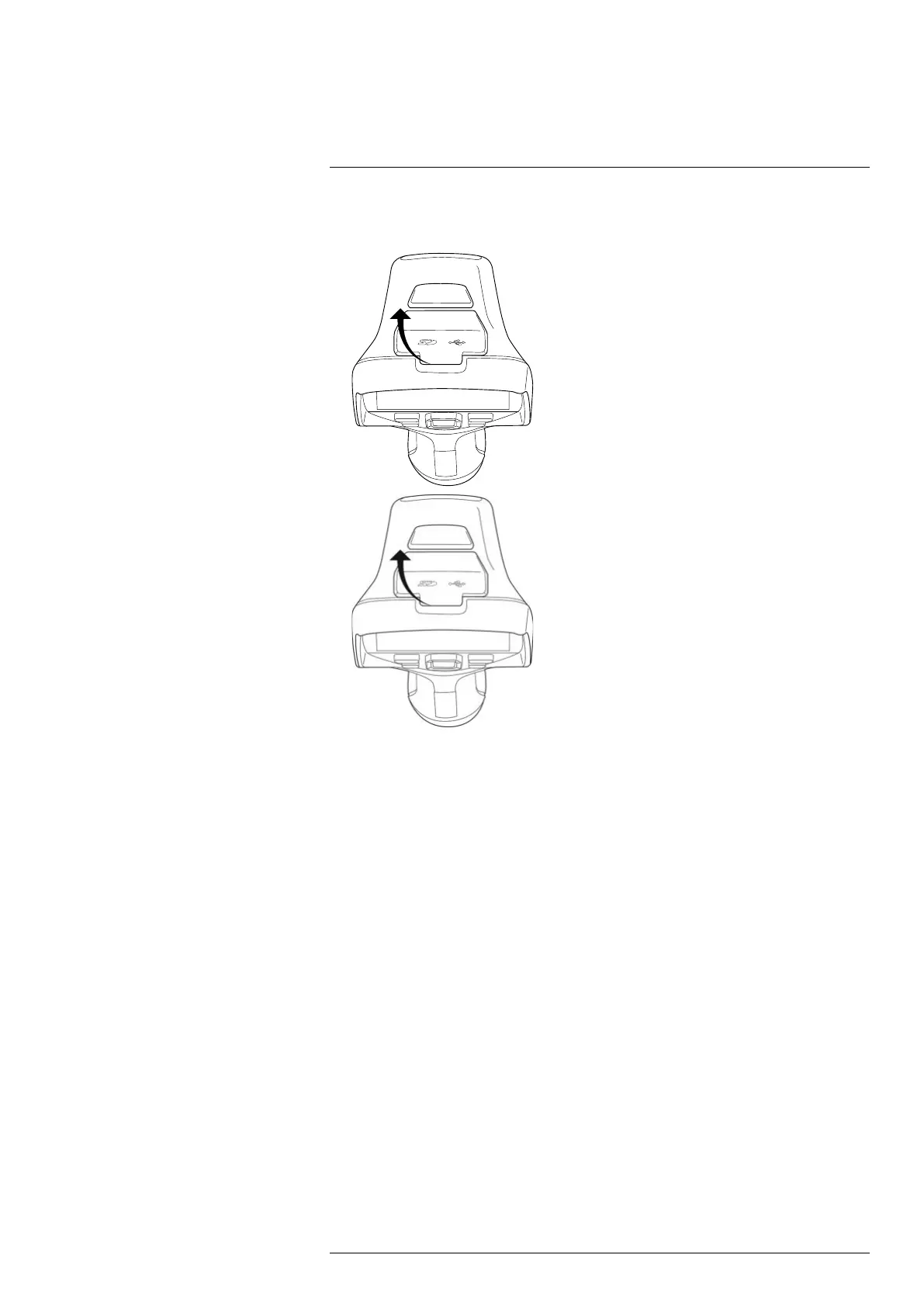

1. Fold up the rubber cover at the top of the camera.

#T810587; r. AD/90967/90989; en-US
