FLIR E86

Handling the camera
7
4. From a distance of 2 m (6.6 ft.), aim the camera toward the crosshair, using the laser
pointer. The camera will take a picture automatically.

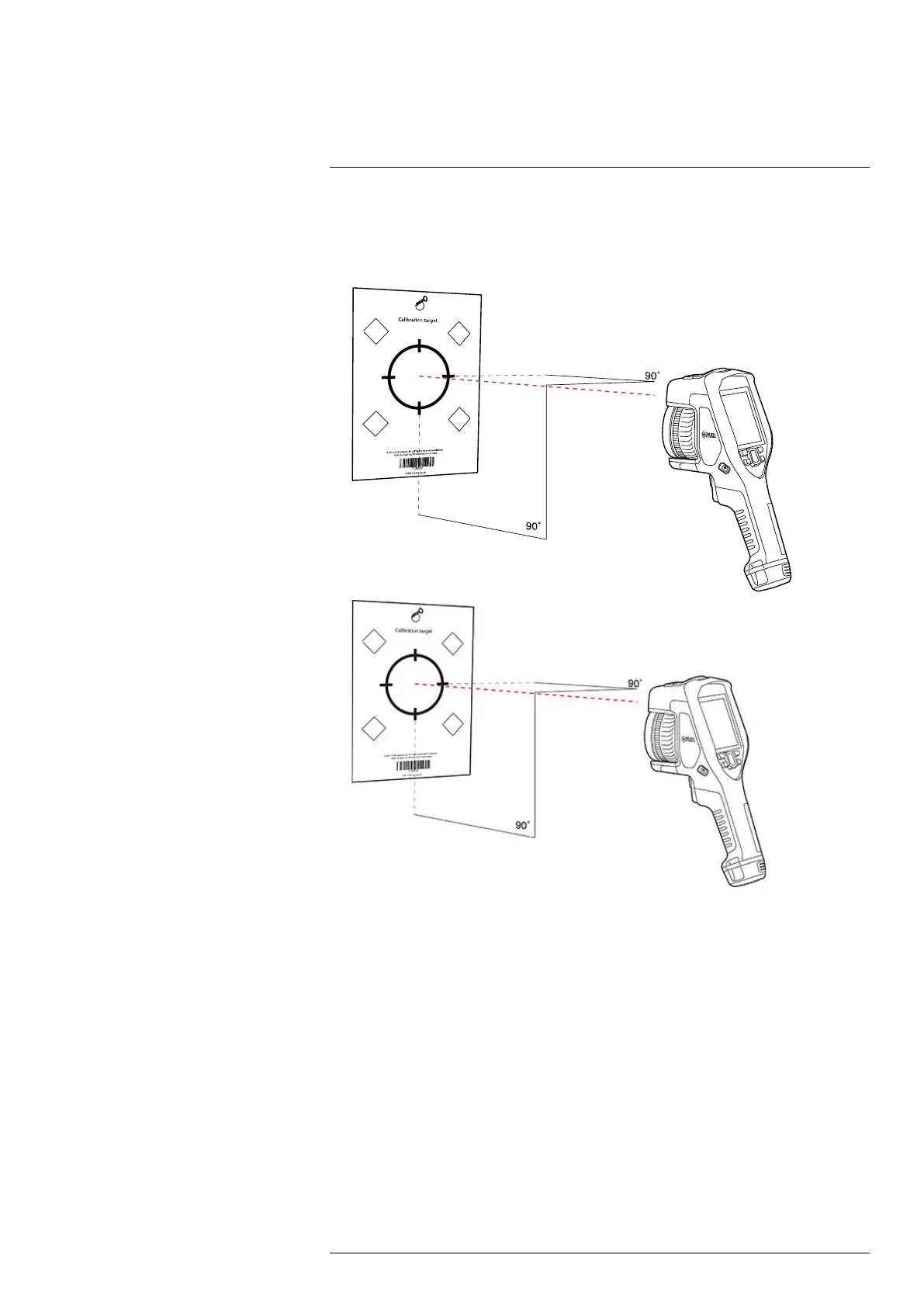

Note Make sure the camera’s optical path is perpendicular to the calibration target.
See the image below.
#T810587; r. AD/90967/90989; en-US
56
