H-Series Operator’s Manual 3—Operating Your H-Series Camera
431-0003-01-10, Revision 160 23
3–10 Installing the Shuttered Eyepiece
The shuttered eyepiece keeps light from coming out of the viewfinder
display. Pressing your eye up against the eyepiece opens the shutter.
The shutter closes automatically.
The eyepiece fits into a groove
around the display housing.
When pressing the eyepiece
into position, ensure that the
diopter lever is free to move.
If the eyepiece is pushed too far
onto the display housing it will
interfere with the diopter lever.
When removing the eyepiece,
grasp and pull on the base of the
eyepiece. Do not pull on the
shuttered eye cup.

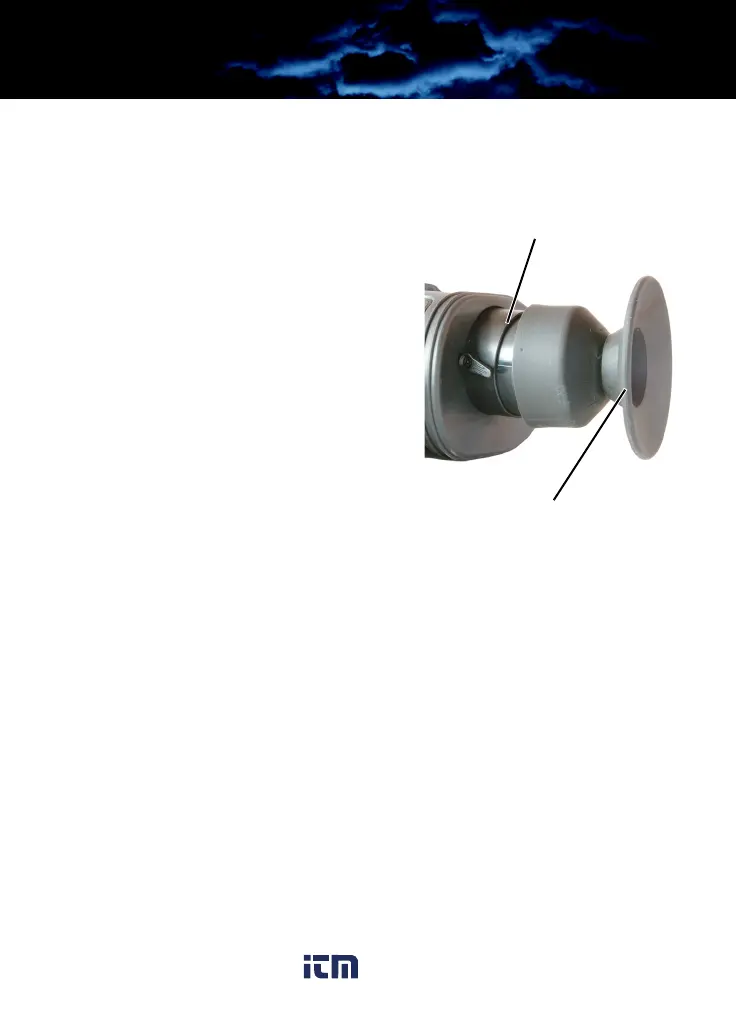

Groove for eyepiece
Shuttered eye cup
HS_Series_Operators.book Page 23 Thursday, March 29, 2012 3:03 PM
