3—Operating Your H-Series Camera H-Series Operator’s Manual
24 March 2012
3–11 Bayonet Lens Mounting System
The HS-324 camera is equipped with a robust bayonet mounting
system to allow for field-interchangeable optics options and future
accessories. As shipped, the HS-324 camera comes with a lens-
cover assembly mounted on the bayonet mount.
Operation of the Lens-cover Assembly

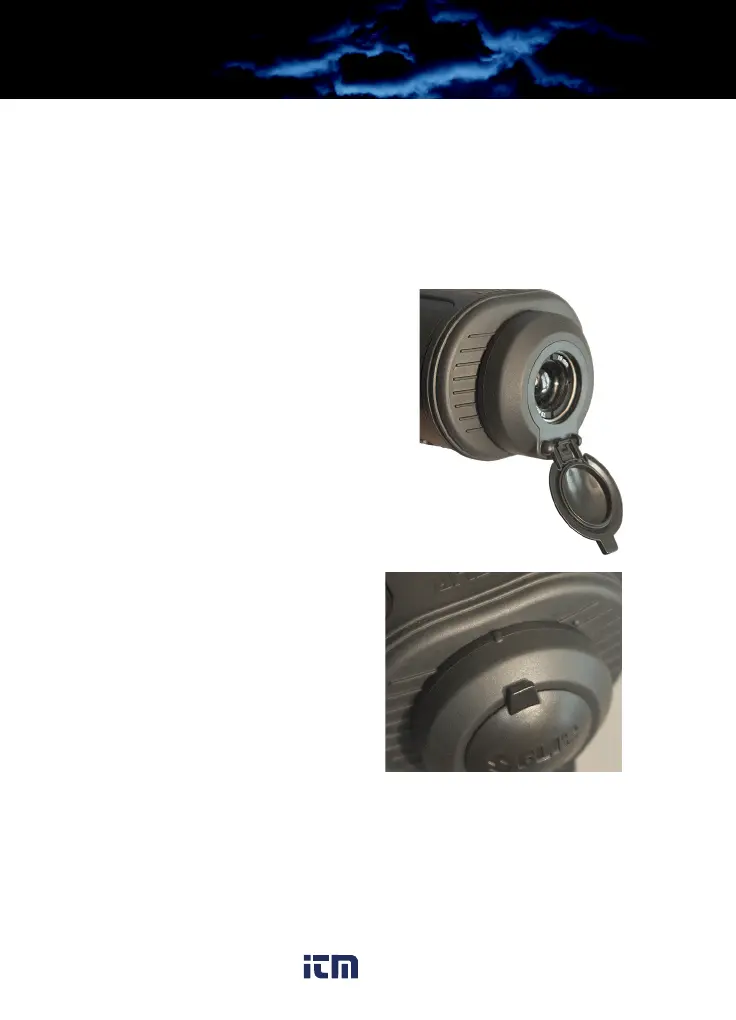

The lens cover is a simple flip-to-open lens
cover that provides protection for the
camera lens when not in use. To open,
simply flip the lens cover down to the fully
open position (45° pointing toward the
ground as shown in the photograph at the
right).
To remove the lens-cover
assembly, rotate the outer ring
of the lens cover clockwise so
that the index mark on the top of
the lens cover aligns with the
index mark on the front body of
the camera (approximately 45°),
and pull straight off.
