432-0003-00-28-en-US v110 Integration with Garmin Displays – Application Note

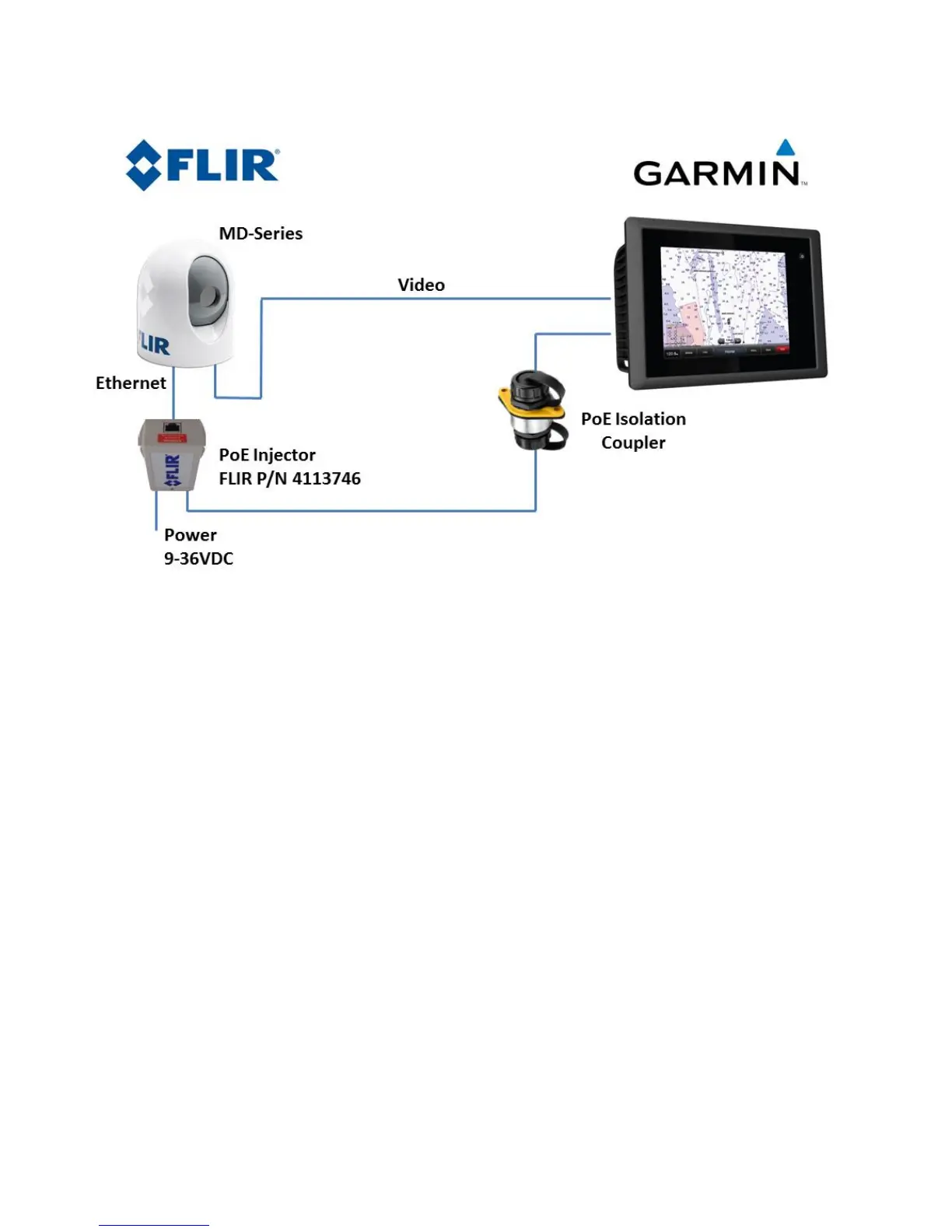

Similarly the FLIR PoE Injector is a PSE device and
the powered interface (marked with a red label)
should never be connected directly to the Garmin display
. The PoE Injector is commonly used to provide
power to the MD-Series camera.
Note, a Garmin PoE Isolation Coupler (Garmin P/N 010-10580-10) should also be used to connect the
Data In (non-powered) port of the PoE injector to the display.
