FLIR M-Series Owner's Manual

432-0003-00-28-en-US v110 Integration with Garmin Displays – Application Note

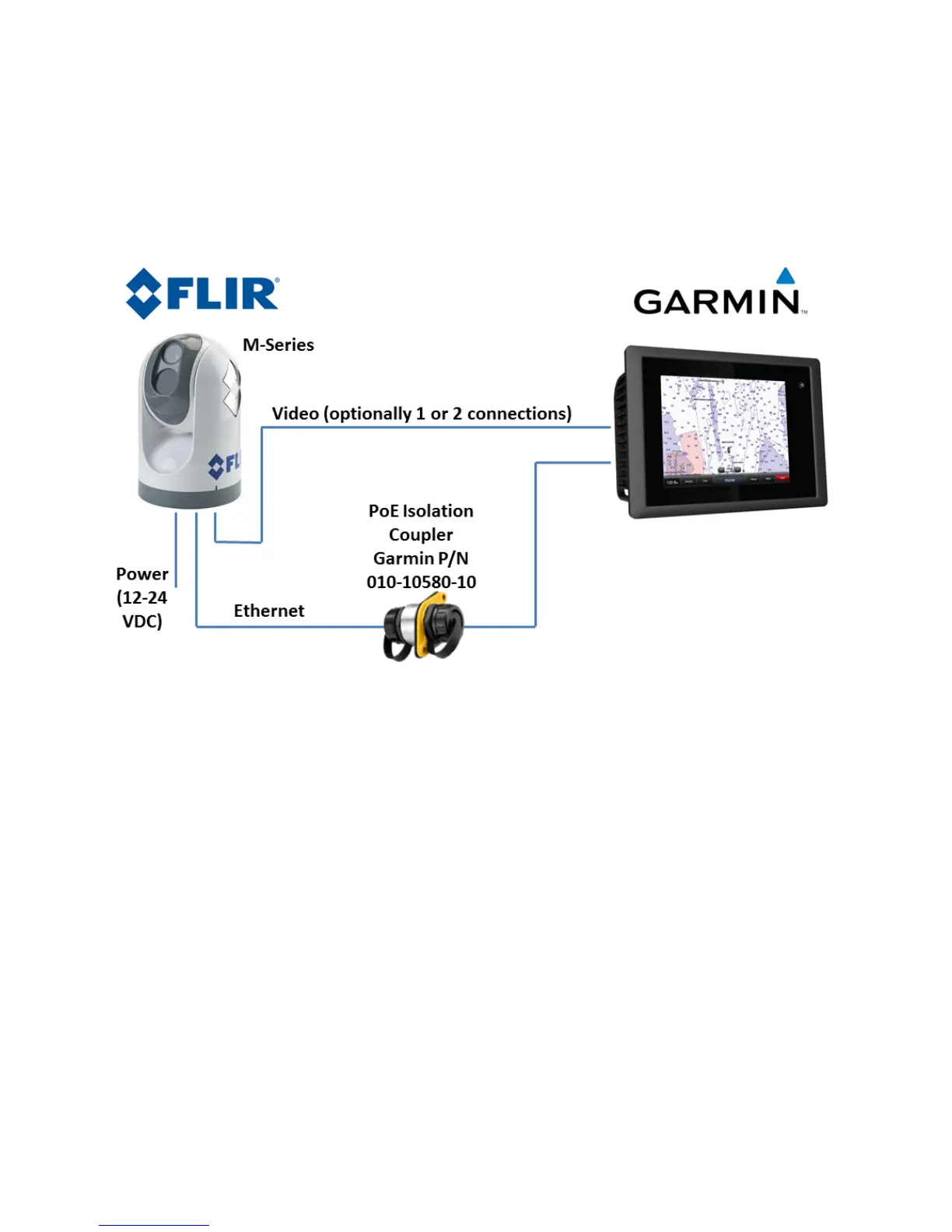

System Connections
Warning: Do not connect a Power over Ethernet (PoE) Power Source Equipment (PSE) device directly
into the Ethernet port of the Garmin display. Damage to the camera or the display could result and will
void the manufacturer’s warranty.
The Ethernet interface on the FLIR M-Series camera is a PSE device and conforms to IEEE 802.3af-
2003 specification, commonly known as PoE. This powered network interface should never be
connected directly to the Garmin display . It is necessary to use the Garmin Marine Network PoE Isolation
Coupler (Garmin P/N 010-10580-10) to connect the camera to the display.
