432-0003-00-28-en-US v110 Integration with Garmin Displays – Application Note
Setup
Turn off all power connections to the devices. Make the appropriate connections between the devices,
as shown above. Perform the following steps in the order given below.
1. Power on the GPSMAP 8000 Series display. The GPSMAP 8000 Series must be started first - it
will provide an IP address to the connected FLIR camera
2. Power on the M-Series camera, or PoE Injector for the MD-Series camera
3. Set up the GPSMAP MFD to display the video from the camera
a. From the GPSMAP Home screen select the Video option.
b. Select Menu, then select Video Menu.
c. Select the Source button. Assuming everything is connected correctly, the first available
source listed will be the FLIR camera (for example, M618CS). It may take up to five
minutes to appear after starting the FLIR camera. If the camera is not displayed, refer to
the troubleshooting steps below.
4. On the GPSMAP MFD, select the video channel that will be used to control the camera
a. From the Video Menu select Video Setup option.
b. Select Set Input option.
c. Select the video input your FLIR camera is connected to. This associates camera control
to either Video 1 or Video 2.
d. Confirm that it is possible to control the camera. When the video image is touched, a pop-
up control will be displayed. Touch the “+” button to zoom in the camera, “-“ to zoom out.

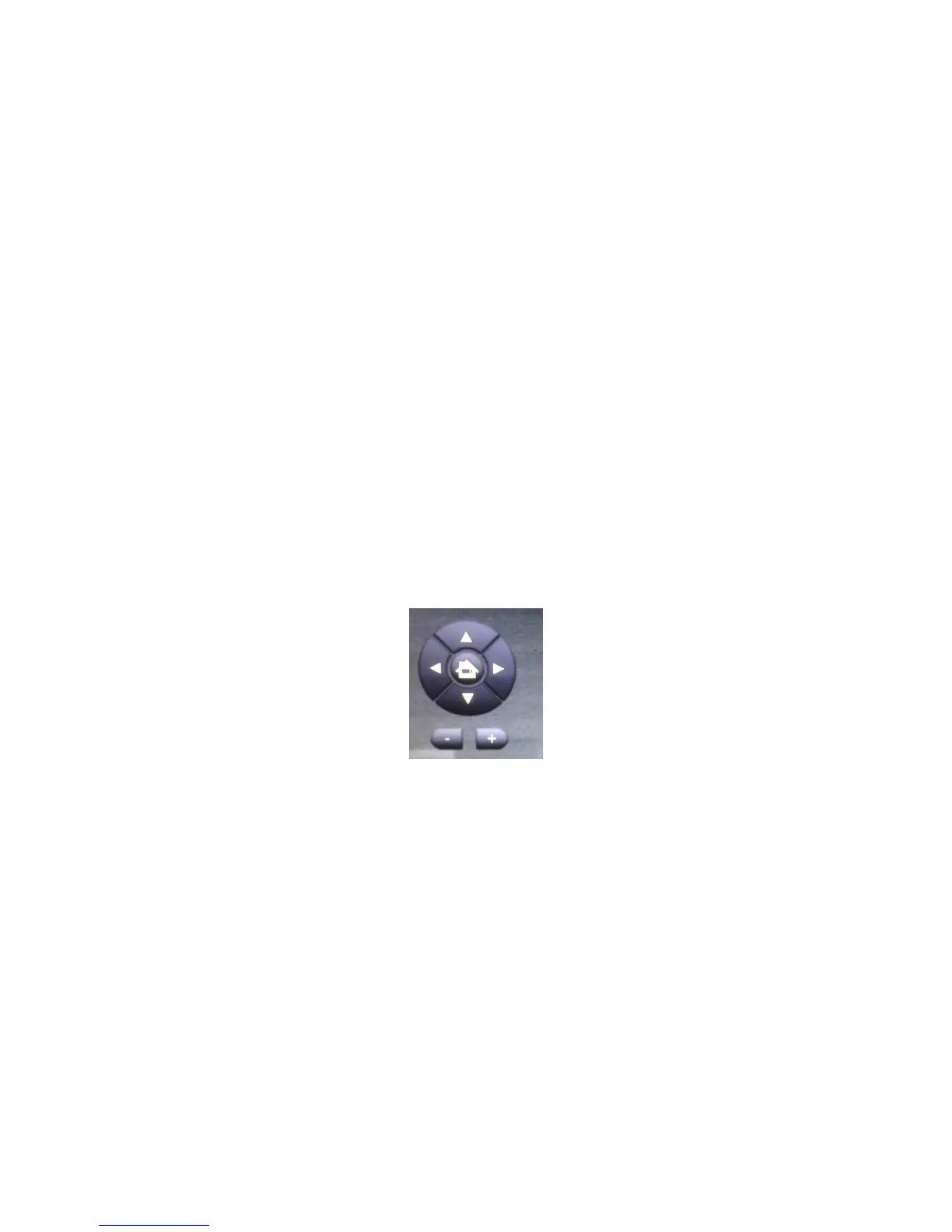

Pop-up Control
Camera Control
From the Video Menu, most functions that are available from the JCU are also available on the MFD.
For M-Series cameras that have both thermal and visible (lowlight or color) video, the IR/Visible button
can toggle between the video sources. The Change Colors button works like the Color button on the
JCU, and the Change Scene button works like the Scene button on the JCU. To access the camera’s
on-screen menu, select Video Setup, then Next Page twice to get to the FLIR Menu button.
