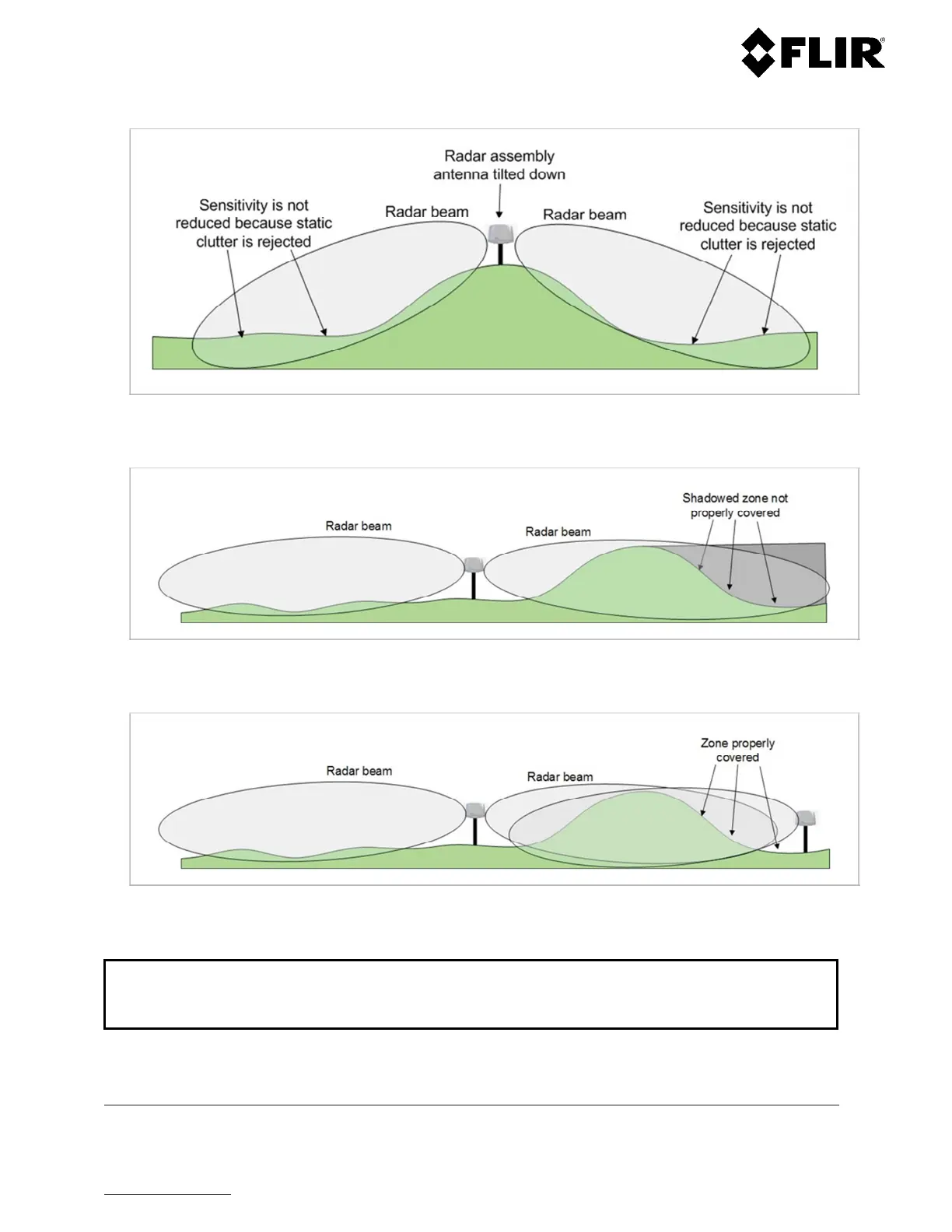

Figure 12 - Radar Installation on Hill Top - Correct Tilt Angle (only applicable to Doppler mode)
Figure 13 - Radar Installation Near Hill - Shadowed Zone
Figure 14 - Radar Installation Near Hill - No Shadowed Zone
Note
Typical detection ranges according to installation height and tilt angle are given in
Table 6.
