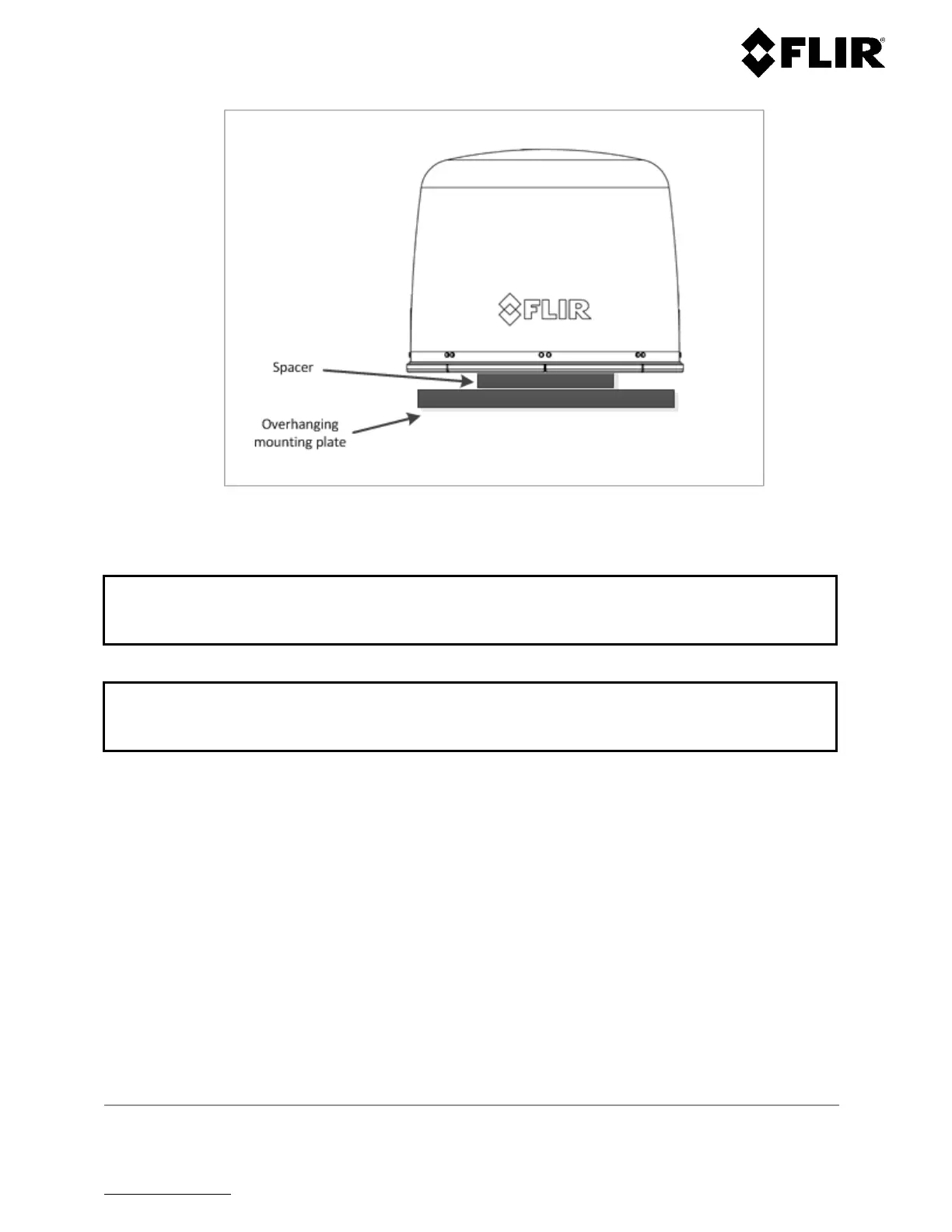

Figure 21 - Overhanging Mounting Plate
4.2 ANTENNA TILT ADJUSTMENT
Note
R1, R2, R3, R3D, R5 and R5D
adjusted so that the antenna points to the
horizon.
Note
Radar performance is optimal
at 0 degree of tilt angle under most circumstances. Only modify the
antenna tilt angle if required by the terrain profile (refer to Section 3.1).
Changing the antenna tilt angle has an impact on the minimum and maximum detection ranges. Typical
detection distances are given in Table 3, Table 4, Table 5 and Table 6.
