FLIR T865 User Manual

Camera overview
6

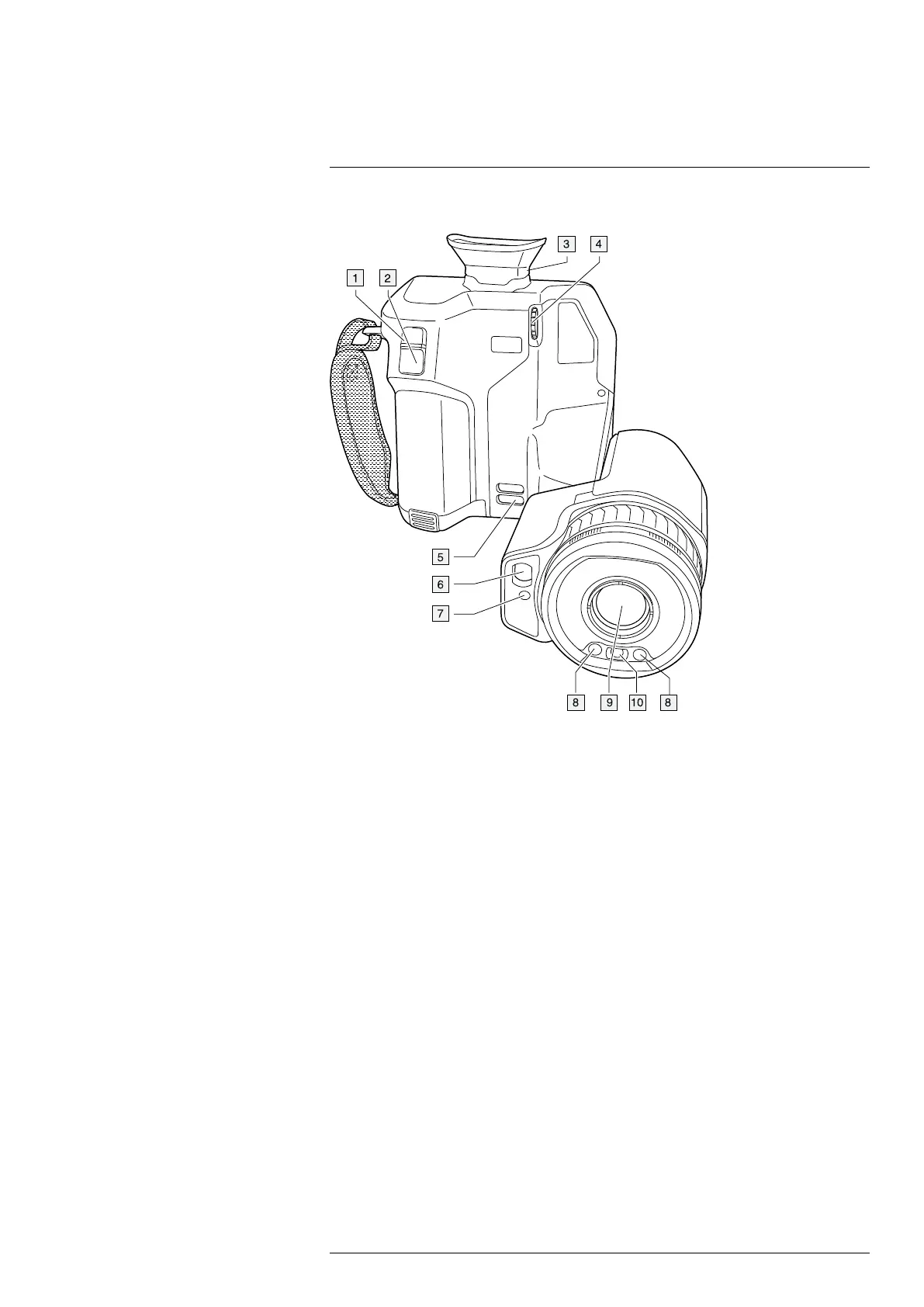

6.2 View from the front
1. Autofocus button.
2. Save button.
3. Viewfinder.
4. Knob to change the dioptric correction for the viewfinder.
5. Attachment point for the neck strap.
6. Laser receiver.
7. Laser transmitter.
8. Camera lamp (left and right sides).
9. Infrared lens.
10. Digital camera.
#T810413; r. AF/83467/83910; en-US
12

FLIR T865 Specifications

General

IR Resolution	640 x 480 pixels
Accuracy	±2 °C or ±2% of reading
Spatial resolution (IFOV)	0.65 mrad
Digital Camera	5 MP
Image Frequency/Frame Rate	30 Hz
Battery Life	4 hours
Image Storage	SD card
Thermal Sensitivity/NETD	< 0.03 °C (30 mK) @ 30 °C
Temperature Range	-20 °C to 120 °C
Field of view (FOV)	24° x 18°
Weight	1.5 kg
Spectral Range	7.5 to 14 µm
Lens Options	24°, 42°
Operating Temperature Range	-15 °C to 50 °C
Storage Temperature Range	-40 °C to 70 °C
Connectivity	Wi-Fi, USB
