Floe MAXIS - Set Insert Height and Torque

SHEET 4 OF 8

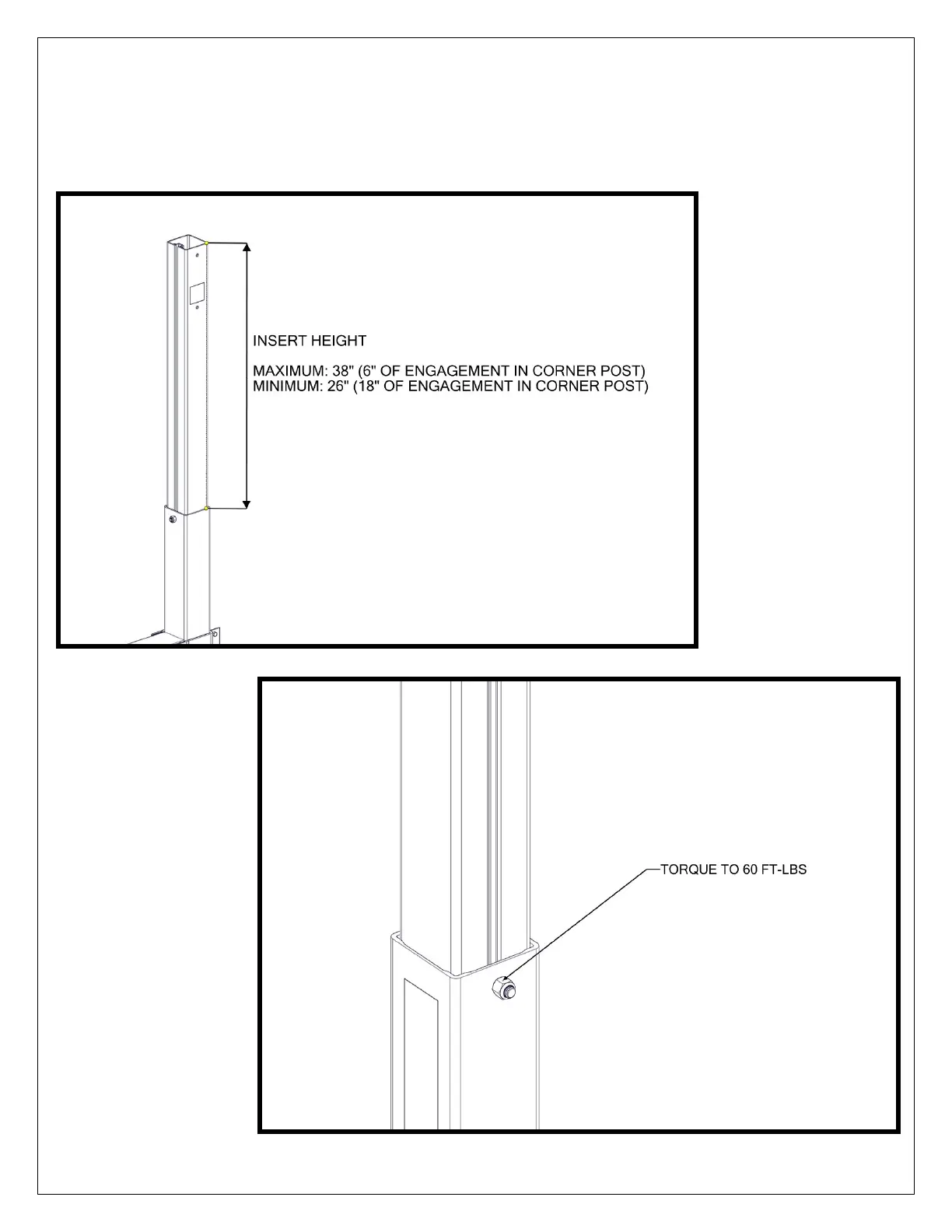

THE MAXIMUM HEIGHT OF THE INSERTS IS 38” (6” OF ENGAGEMENT IN THE CORNER POSTS). THE
MINIMUM HEIGHT OF THE INSERTS IS 26” (18” OF ENGAGEMENT IN THE CORNER POSTS) (FIGURE
1.5). TORQUE ½” NUT TO 60 FT-LBS (FIGURE 1.6). PROCEED TO INSTALL MAXIS CANOPY BY
REFERRING TO MAXIS CANOPY FRAME INSTRUCTIONS.
FIGURE 1.5
