Floe MAXIS - Step 1: Corner Post Insert Installation; Install Tilting and Non-Tilting Inserts

SHEET 3 OF 8

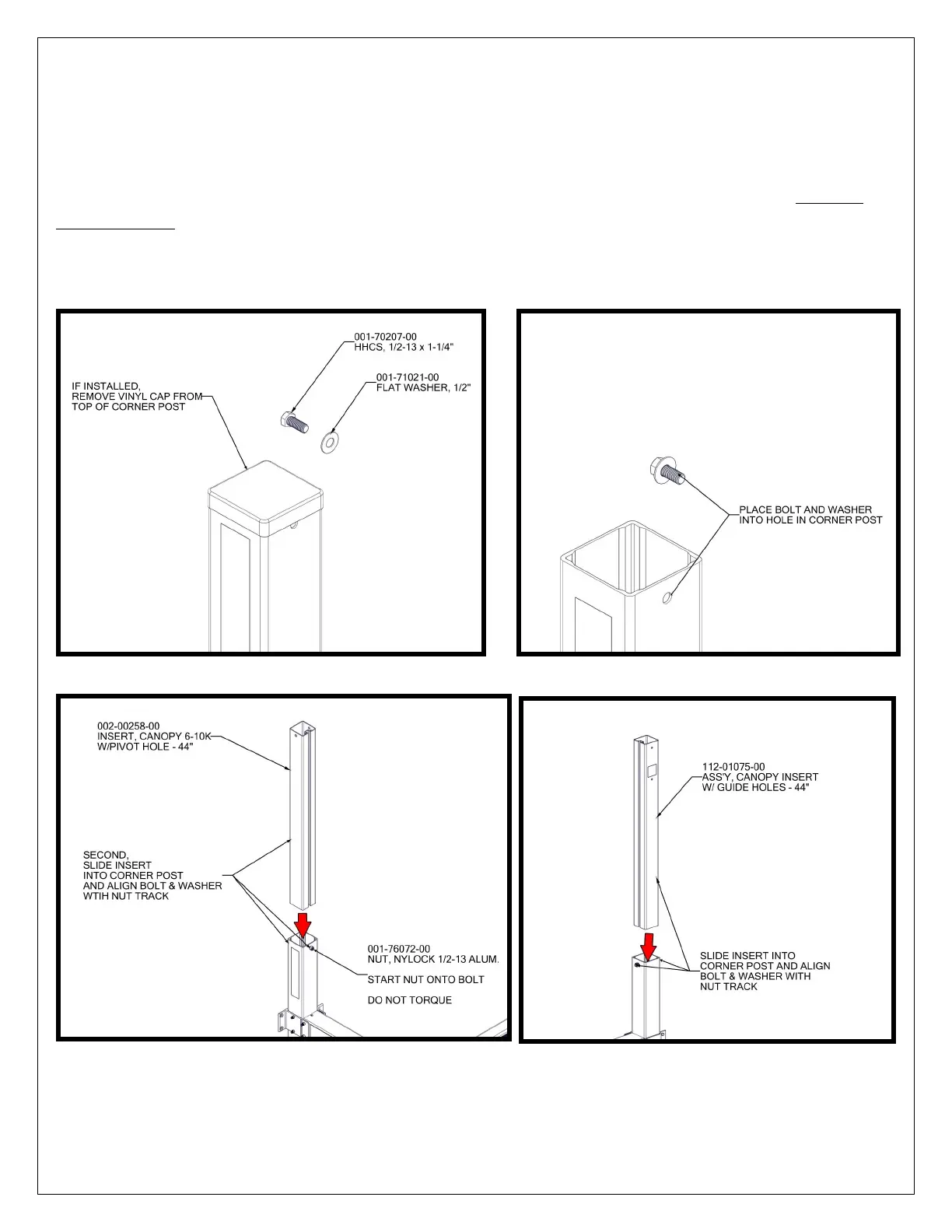

STEP 1
IF INSTALLED, REMOVE VINYL CAP FROM TOP OF EACH CORNER POST. USE A ½” X 1-1/4” BOLT
AND ½” WASHER FROM CANOPY HOOP HARDWARE (FIGURE 1.1). PLACE THE BOLT AND WASHER
INTO THE CORNER POST (FIGURE 1.2). SLIDE AN INSERT INTO EACH OF THE CORNER POSTS, THEN
START A ½” NYLOCK NUT (INCLUDED WITH CANOPY HOOP HARDWARE) ON THE BOLT, BUT DO
NOT TORQUE. CORNER POSTS ON THE TILTING SIDE USE INSERT P/N 002-00258-00 (ONE
THROUGH HOLE) (FIGURE 1.3). CORNER POSTS ON THE NON-TILTING SIDE USE THE INSERT P/N
112-01075-00 (TWO THROUGH HOLES) (FIGURE 1.4).
FIGURE 1.1
FIGURE 1.2
FIGURE 1.3
FIGURE 1.4
