SHEET 7 OF 8

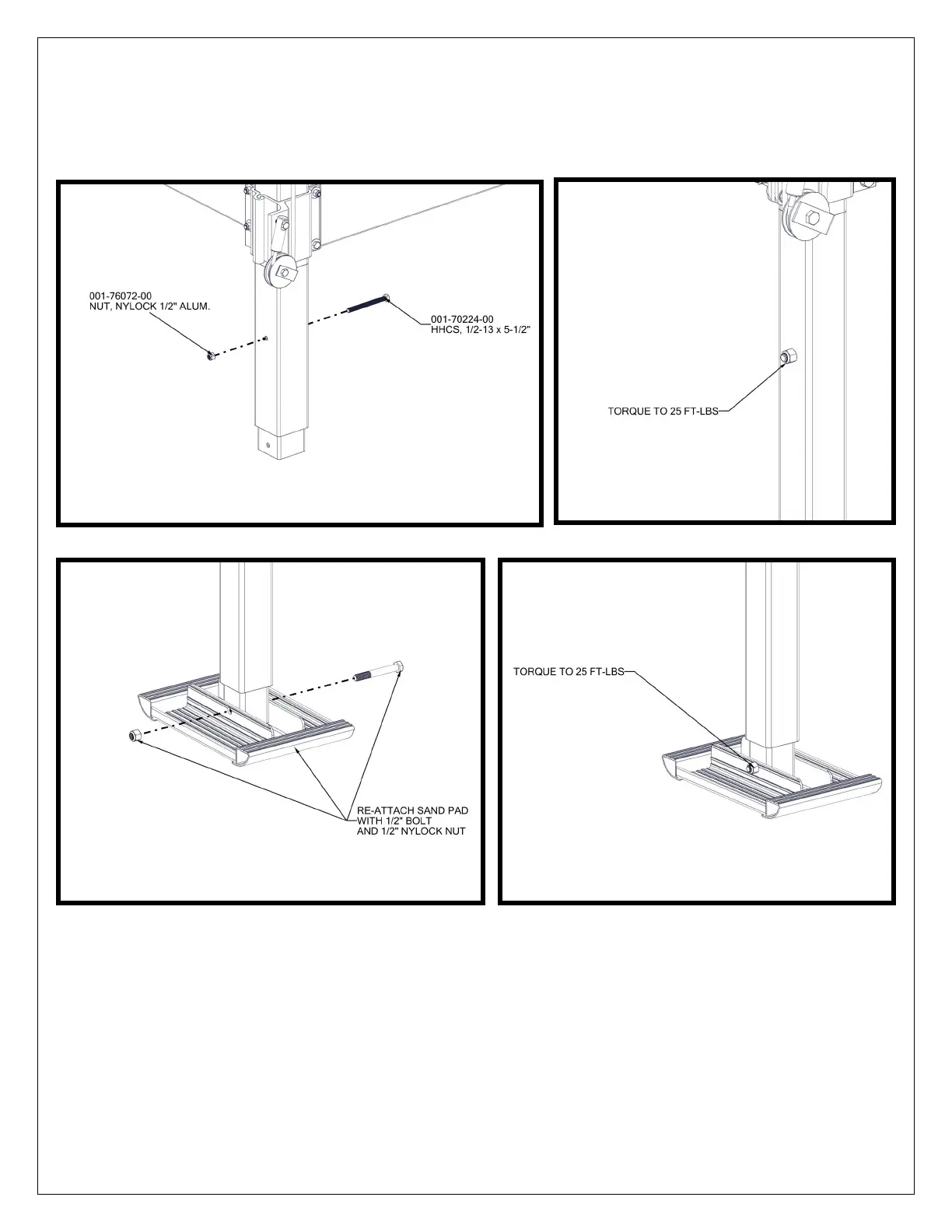

FOR LARGE LIFTS, ATTACH LEG EXTENSION TO INNER LEG USING (1) ½” X 5 ½” BOLT AND (1) ½” NUT
(FIGURE 1.6A). TORQUE TO 25 FT-LBS (FIGURE 1.7). RE-ATTACH SAND PADS TO LEG EXTENSIONS
USING THE ½” BOLTS AND ½” NYLOCK NUTS THAT WERE USED TO ATTACH THEM TO THE LIFT’S INNER
LEG (FIGURE 1.8). TORQUE TO 25 FT-LBS (FIGURE 1.9).
FIGURE 1.6A
2X
2X
2X
2X
FIGURE 1.7
FIGURE 1.8 FIGURE 1.9
