Floe V2000 - Page 6

SHEET 6 OF 8

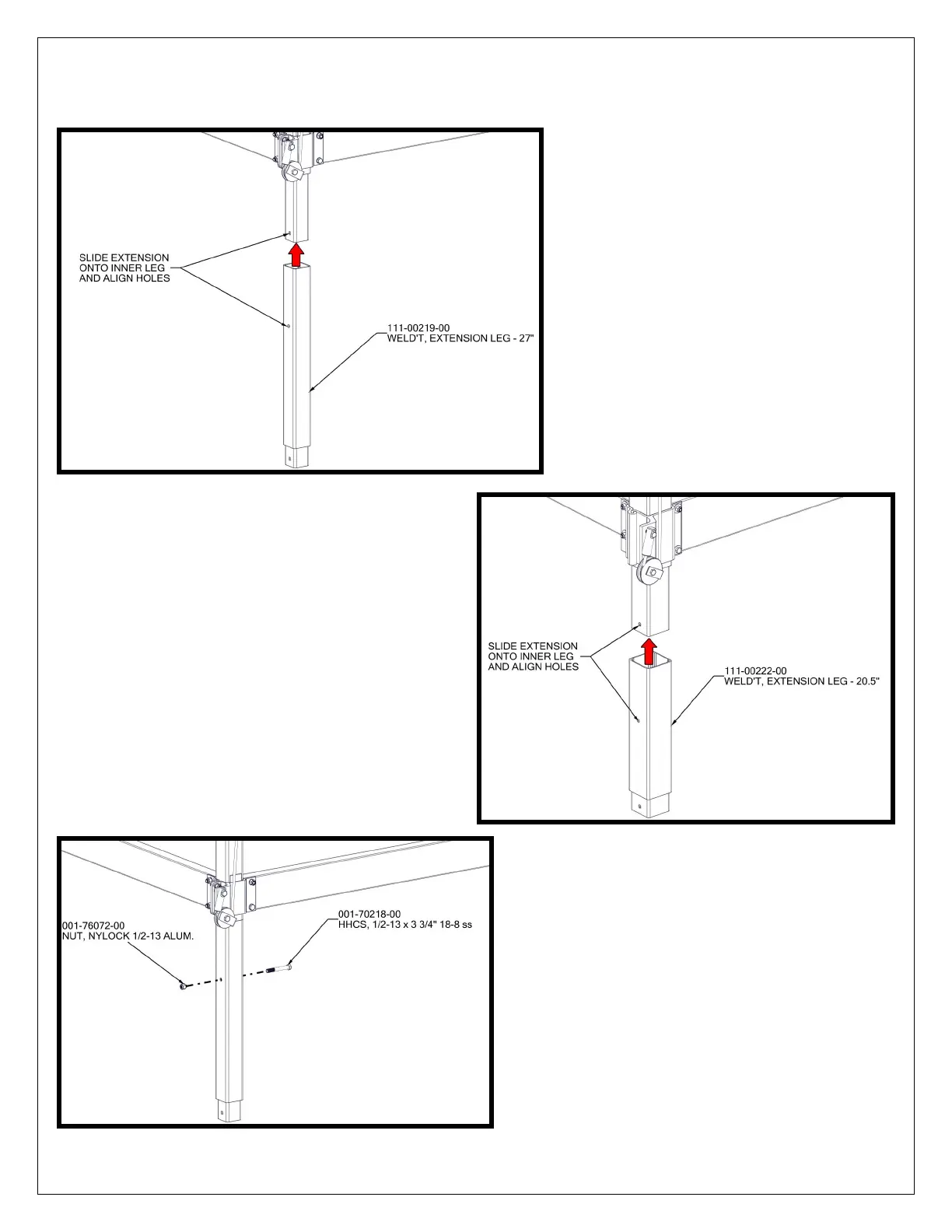

SLIDE LEG EXTENSIONS ONTO INNER LEGS AND ALIGN HOLES (FIGURE 1.5: SMALL LIFTS, FIGURE 1.5A:
LARGE LIFTS). FOR SMALL LIFTS, ATTACH LEG EXTENSION TO INNER LEG USING (1) ½” X 3-3/4” BOLT
AND (1) ½” NUT (FIGURE 1.6).
FIGURE 1.5
2X
FIGURE 1.6
2X
2X
FIGURE 1.6
