SHEET 5 OF 8

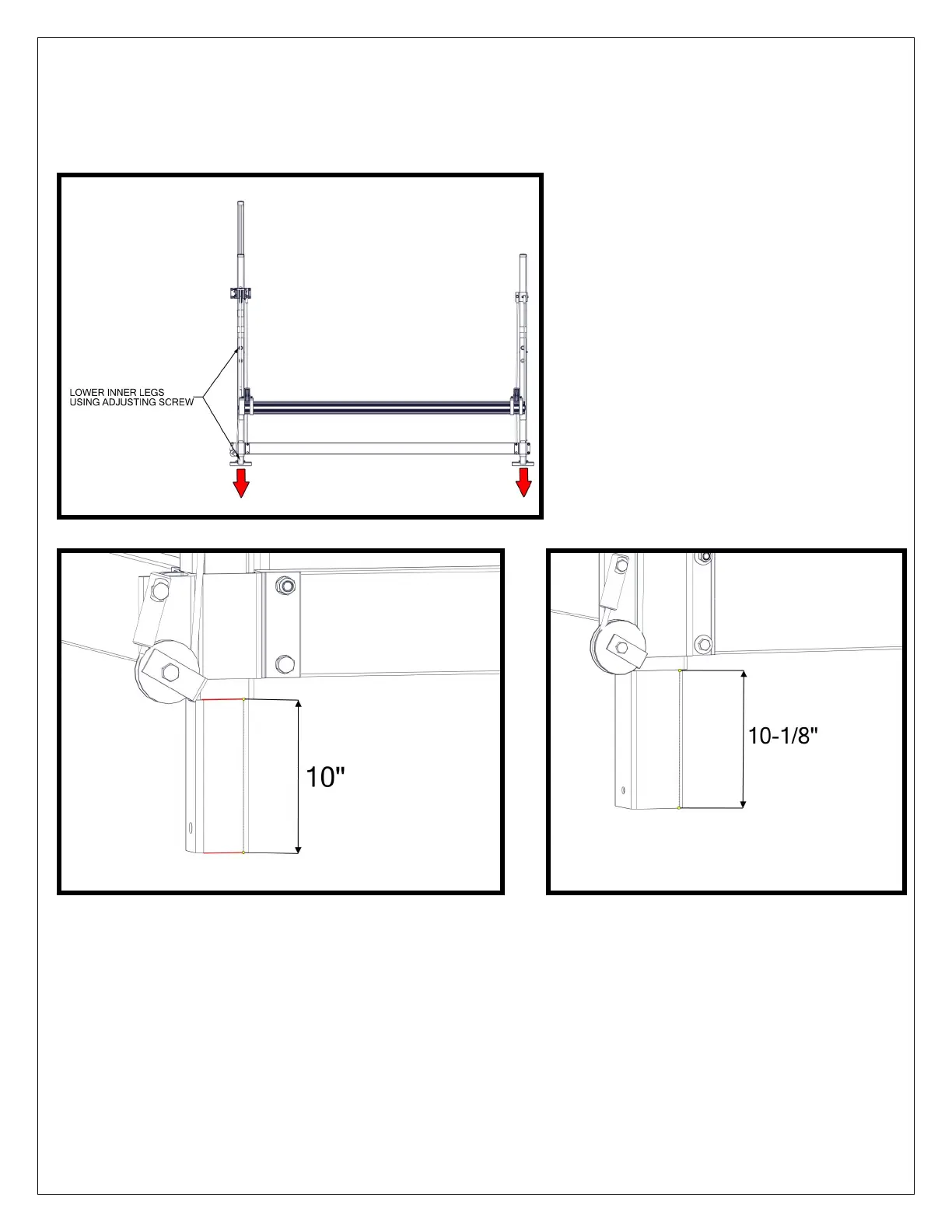

LOWER INNER LEGS USING ADJUSTING SCREW (FIGURE 1.3). FOR SMALL LIFTS, LOWER THE INNER LEG
10” FROM THE BOTTOM OF THE INNER LEG TO THE BOTTOM OF THE CORNER POST (FIGURE 1.4). FOR
LARGE LIFTS, LOWER THE INNER LEG 10-1/8” FROM THE BOTTOM OF THE INNER LEG TO THE BOTTOM
OF THE CORNER POST (FIGURE 1.4A).
FIGURE 1.4
FIGURE 1.3
2X
FIGURE 1.4A
2X
