Floe VSD-3800 - Lift Dimensional Specifications

8
* Deep water extensions available. ** Does not include the weight of the bunks, guides, or other accessories.

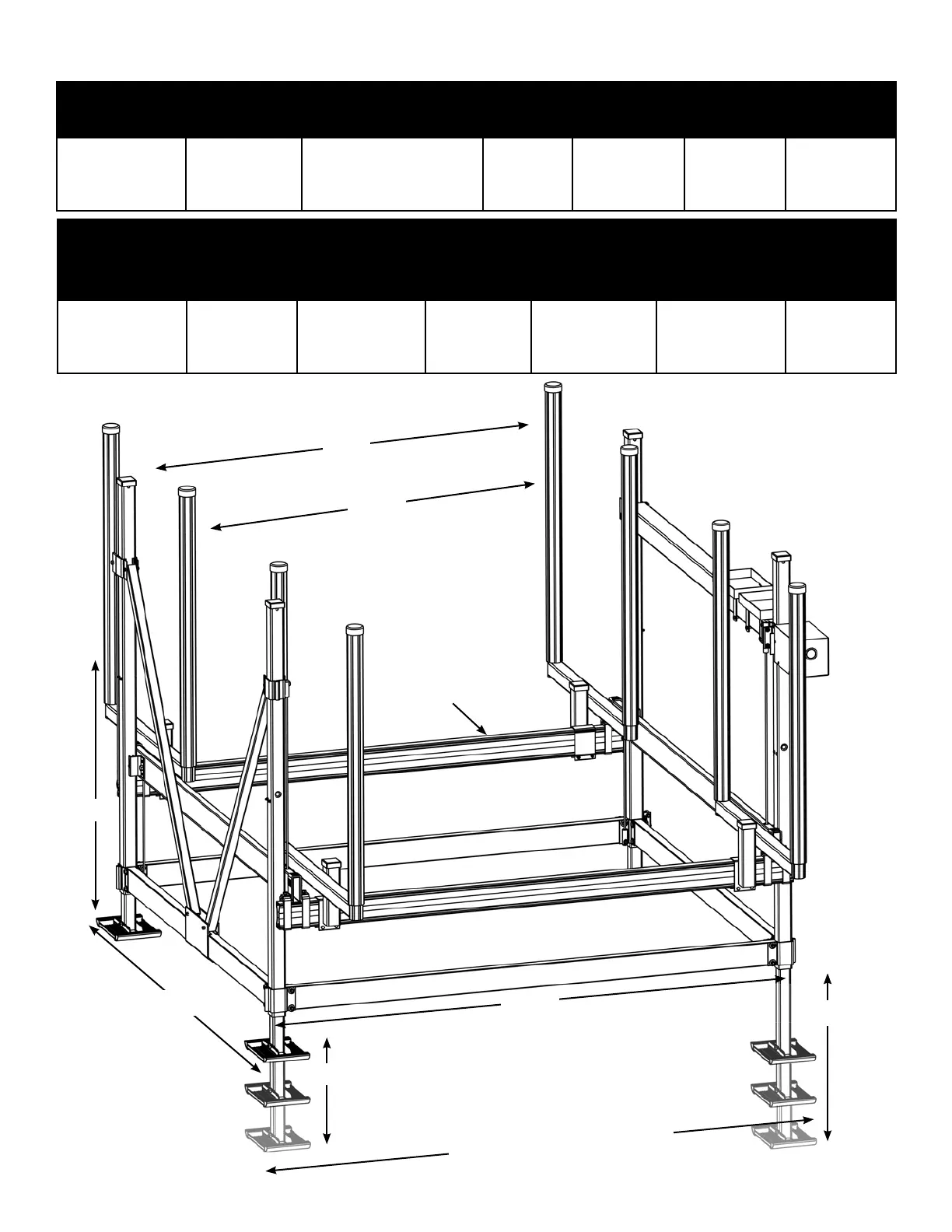

LIFT DIMENSIONAL SPECIFICATIONS Specications may change without notice.
MODEL/
CAPACITY
DRIVE TRAIN BUNKS BED
TRAVEL
INSIDE
WIDTH
OUTSIDE
WIDTH
FRAME
LENGTH
VSD-3800-lb.
& VSD-5000-lb
Screw-Drive Full Length Bunks
Cradle Pad Pivot Bunks
Pontoon Full Length Bunk
or Cradle Pad Systems
52” 116.5” 122.5” 109.5”
Max. Inside Width of Guide-ins
(Single Vertical or Horizontal With Vertical Bum-
pers)
102”
104.5”
Max. Inside Width of Double Vertical
Guide-in Style Only
Top of Main Cradle
Lift Beam lowers down
to 9.5” above the lake
bottom with legs fully
retracted.
122.5”
Outside
Frame Width
109.5”
Frame Length
(from one main
lift beam to the
other)
Outside edge of sandpad to
outside edge of sand pad 129”
0-30”
Leveling Leg Travel
with Standard Legs
28.5-50.5”
Leveling Leg
Travel with
Extensions*
Bed
travel
for
VSD-
3800
& VSD-
5000
52”
MODEL/
CAPACITY
LEVELING
LEG TRAVEL
TRAVEL WITH
EXTENSIONS
CANOPY
OPTION GUIDE-IN
OPTIONS
MAX INSIDE
WIDTH WITH
GUIDE-INS WEIGHT**
VSD-3800-lb.
& VSD-5000-lb
0-30” 28.5” - 50.5” 22’, 24’, 26’,
28’, 30’
Horizontal with
Vertical Bumpers
Single Vertical
Double Vertical
102”
102”
104.5”
486 lbs.
536 lbs.
