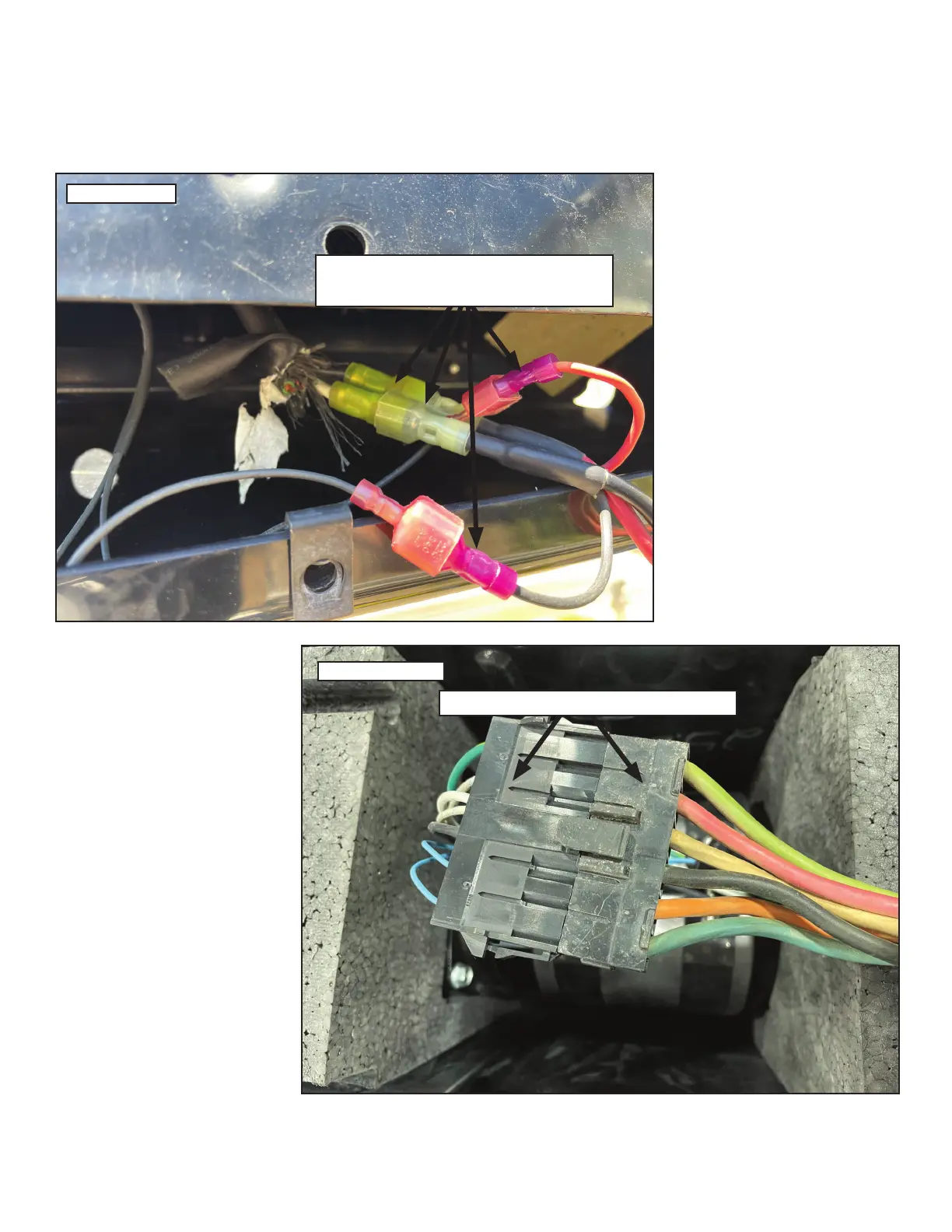

WITH (2) SCREWS REMOVED FROM THE BOTTOM OF THE DRIVE UNIT COVER, RE-ATTACH THE
WIRES COMING FROM THE ASC TO THE WIRES ON THE MOTOR (FOR DC DRIVE UNITS) (FIGURE
3.5). FOR AC DRIVE UNITS, RE-ATTACH THE PLUG COMING FROM THE ASC TO THE PLUG ON THE
MOTOR (FIGURE 3.5A).
FIGURE 3.5
FIGURE 3.5A
RE-ATTACH MOTOR AND BRAKE
CONNECTORS
RE-ATTACH PLUG FROM ASC
